1560nm high repetition rate femtosecond pulse fiber laser

The E-Fiber series of ultrafast lasers integrate the latest femtosecond laser technology, use high-performance rare earth optical fiber as the working medium, and combine high-precision dispersion compensation technology and active servo system to achieve stable output of high-repetition-rate femtosecond pulse lasers in the 1560nm band. It can start automatically with one button, work stably and maintenance-free for a long time, and has the characteristics of extremely narrow laser pulses and high pulse peak power. It has wide applications in optical frequency combs, supercontinuum, terahertz THz and other fields. * Customization of parameters such as pulse width, power, and repetition frequency is accepted.

Product features：Pulse width 50~500 fs、 Pulse repetition rate 200MHz~1GHz customizable、 Self-starting and maintenance-free、 Full polarization and high stability

Application area：Optical frequency comb、 Supercontinuum、 Ultrafast laser phenomenon

Unit Price

Please contact customer service for a discounted quote.

Part Number

PSPL-1560-500-10-200-PM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Wavelength	nm	1560±10
Spectral width	nm	20
Pulse width	fs	50 ~ 500	Customized
Output power	mW	1 ~ 200	Customized
Power instability	-	< ±1%
Repetition rate	MHz	≥ 200	200MHz~1GHz can customized
Repetition rate instability	Hz	< 200
Single pulse energy	nJ	>1
Polarization state	-	Linear polarization
Output fiber type	-	PM fiber 1m
Optical connector type	-	FC/APC，Slow axis alignment slot
Warm-up time	min	<1

Electrical and Environmental Parameters	Benchtop	Moudle
Control method	button	button
Synchronous electrical signal interface	SMA	SMA
Power supply	100~240VAC,<30W	5V DC,<20W
Dimensions	260(W)×280(D)×120(H)mm	200(W)×121(D)×65(H)mm
Operating temperature	5 ~ 35°C
Operating humidity	0~70%

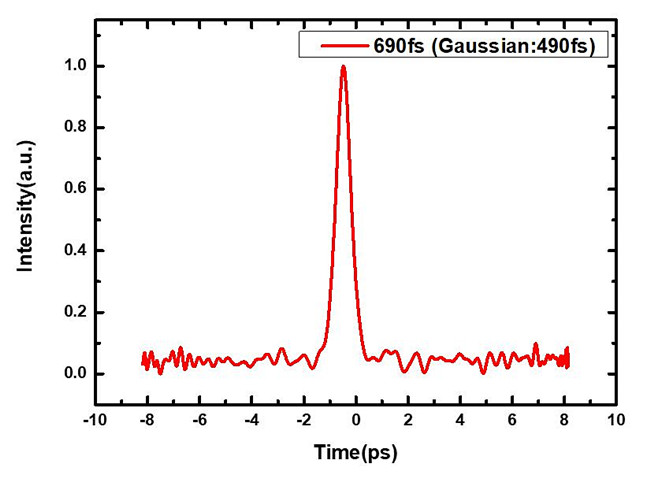

Pulse autocorrelation line

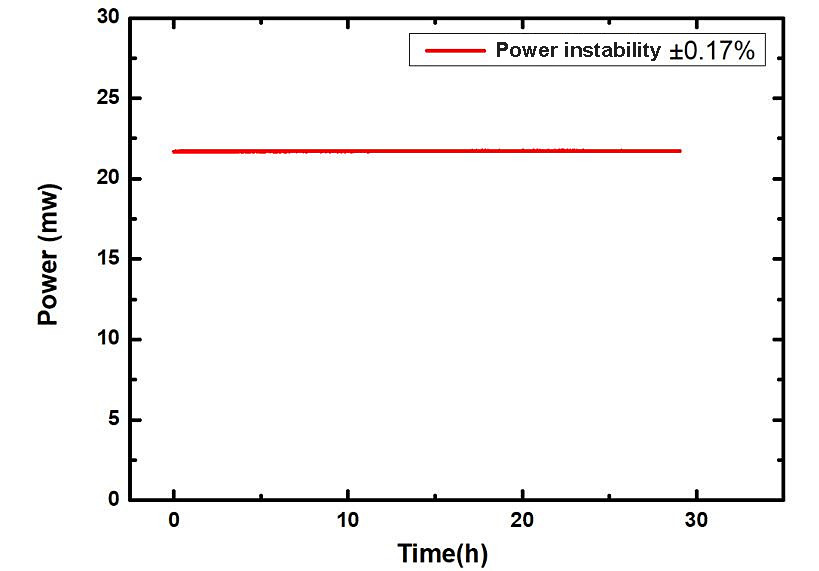

Power

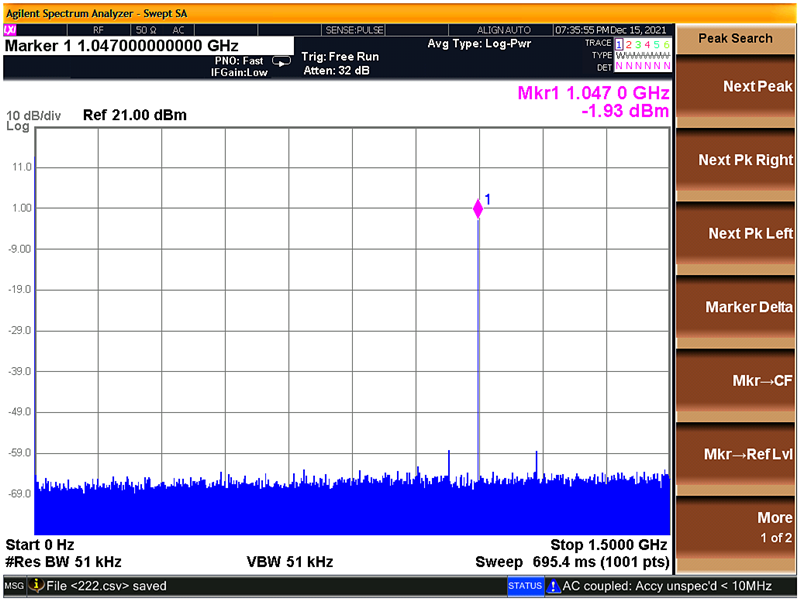

Pulse sequence

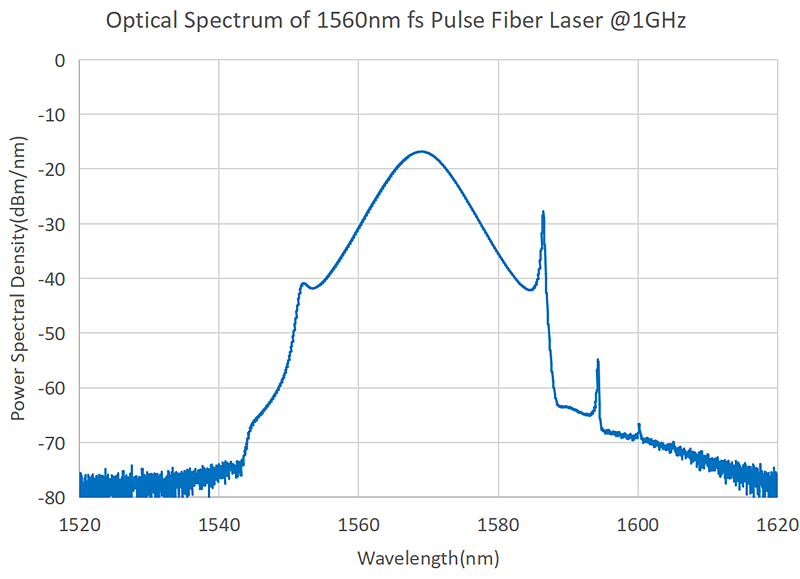

Spectrum

Ordering information / PN#

FSPL

wavelength(nm)

Pulse width(fs)

Average power (mW)

Repetition rate(MHz)

Output method

Packaging form

1560

50/100/200/ 500

10/50/100

200/600/1000

SM=single-mode

PM=Polarization-mode

B=Benchtop

M=Module
