Diffused laser collimator gas cell 1370nm

Idealphotonics' collimator gas cell products have mini size, low loss, and low polarization-related loss optical performance, which make them widely used in various fiber optic gas sensing detection systems. At the same time, we can also easily provide customized product types with various working distances, dimensions, etc.

Product features：Low insertion loss、 No glue in optical path、 Compact structure、 High reliability and stability

Application area：Fiber optic devices and modules、 Free space optical path integration、 Optical test system、 Sensor system

Unit Price

Please contact customer service for a discounted quote.

Part Number

PFCC2-111222

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

parameter	Unit	Value	note
Operating wavelength	nm	1370 1550 or 1650	Other wavelengths available
Bandwidth	nm	+/-20	Customizable wider bandwidth range
Operating distance	mm	45 +/-0.1	Other distances can be customized
Insertion loss	dB	0.5 (Typ.) 0.8 (Max.)
Return loss	dB	>50
Optical power	mW	500
Polarization-dependent loss	dB	≤0.10
Operating temperature	°C	-5 ~ 70	Customizable wider temperature range
Storage temperature	°C	-40 ~ 85
Fiber type	NA	Smf-28e+	Other types of optical fiber can be selected
Dimensions(ФD x A)	mm	Ф5.5× 70	For 45mm working distance

*. The above indicators do not include connectors

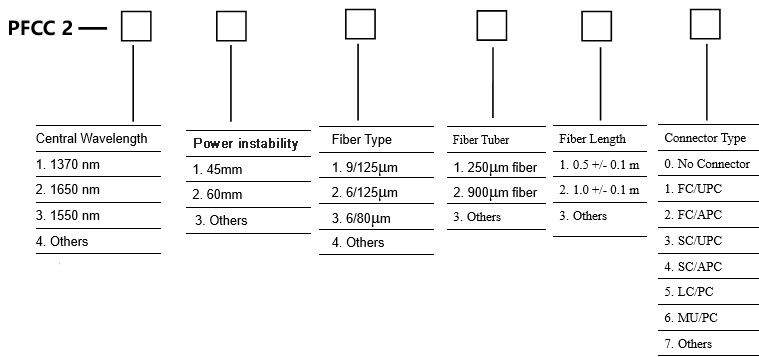

Ordering Information (e.g. PFCC2-111222)
