1650nm Aspheric Collimator

The aberration-free design has good collimation of the light beam, good wavefront performance, Gaussian distribution of light energy under the full optical path, and the light beam deflection angle is <0.5°. The aspheric lens is coated with anti-reflection film on both sides to minimize surface reflection. The aspheric lens will produce chromatic aberration and is sensitive to wavelength changes.

Product features：

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-1650-2.15-0.058-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

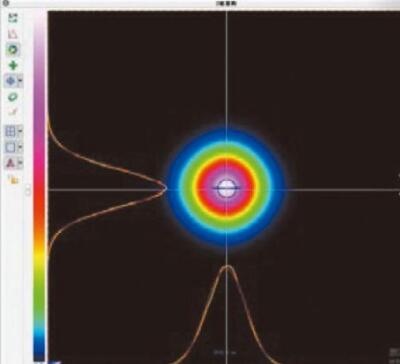

Aspheric collimator exit spot

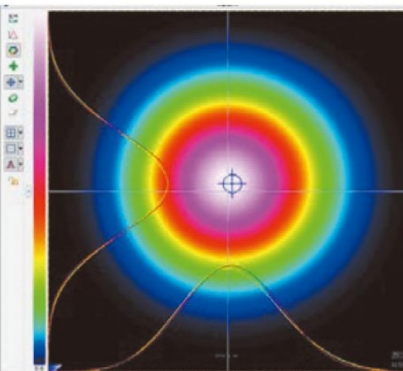

Aspheric collimator 5M spot

Parameters

405nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
405nm	±5nm	0.86mm	0.06°+0.01°	4.45mm	0.25	11mm	FC/PC FC/APC SMA 905	405HP	>95%
405nm	±5nm	2.2mm	0.02°+0.01°	10.67mm	0.25	11mm
405nm	±5nm	2.8mm	0.015°+0.01°	17.71mm	0.15	11mm
450nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
450nm	±5nm	0.82mm	0.05°+0.01°	4.5mm	0.25	11mm	FC/PC FC/APC SMA905	460HP	>95%
450nm	±5nm	2.3mm	0.02°+0.01°	10.77mm	0.24	11mm
450nm	±5nm	3.0mm	0.015°+0.01°	17.88mm	0.15	11mm
520nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
520nm	±5nm	0.84mm	0.05°+0.01°	4.55mm	0.25	11mm	FC/PC FC/APC SMA905	460HP	>95%
520nm	±5nm	2.2mm	0.02°+0.01°	10.87mm	0.24	11mm
520nm	±5nm	3.7mm	0.015°+0.01°	18.02mm	0.15	11mm
633nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
633nm	±5nm	0.86mm	0.05°+0.01°	4.59mm	0.24	11mm	FC/PC FC/APC SMA905	630HP	>95%
633nm	±5nm	2.3mm	0.02°+0.01°	10.96mm	0.24	11mm
633nm	±5nm	3.7mm	0.015°+0.01°	18.14mm	0.15	11mm
780nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
780nm	±5nm	1.0mm	0.06°+0.01°	4.63mm	0.24	11mm	FC/PC FC/APC SMA905	780HP	>95%
780nm	±5nm	2.4mm	0.026°+0.01°	11.06mm	0.24	11mm
780nm	±5nm	4.0mm	0.01°+0.01°	18.33mm	0.15	11mm
850nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
850nm	±5nm	1.0mm	0.06°+0.01°	4.64mm	0.24	11mm	FC/PC FC/APC SMA905	780HP	>95%
850nm	±5nm	2.5mm	0.03°+0.01°	11.10mm	0.24	11mm
850nm	±5nm	3.99mm	0.02°+0.01°	18.45mm	0.15	11mm
980 nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
980nm	±5nm	1.0mm	0.07°+0.01°	4.66mm	0.24	11mm	FC/PC FC/APC SMA905	980HP	>95%
980nm	±5nm	2.3mm	0.03°+0.01°	11.16mm	0.24	11mm
980nm	±5nm	4.0mm	0.02°+0.01°	18.52mm	0.15	11mm
1064 nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
1064nm	±5nm	1.0mm	0.08°+0.01°	4.67mm	0.24	11mm	FC/PC FC/APC SMA905	Hi1060	>95%
1064nm	±5nm	2.3mm	0.032°+0.01°	11.18mm	0.24	11mm
1064nm	±5nm	3.8mm	0.02°+0.01°	18.58mm	0.15	11mm
1310nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
1310nm	±5nm	0.84mm	0.11°+0.01°	4.7mm	0.24		FC/PC FC/APC SMA905	SMF-28c	>95%
1310nm	±5nm	2.05mm	0.047°+0.01°	11.25mm	0.23	11mm
1310nm	±5nm	3.35mm	0.029°+0.01°	18.67mm	0.15	11mm
1550nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
1550nm	±5nm	0.85mm	0.11°+0.01°	4.74mm	0.24	11mm	FC/PC FC/APC SMA905	SMF-28e	>95%
1550nm	±5nm	2.10mm	0.053°+0.01°	11.31mm	0.23	11mm
1550nm	±5nm	3.5mm	0.032°+0.01°	18.75mm	0.15	11mm
1650nm Aspheric Collimator
Central wavelength	Working bandwidth	Outlet spot	Beam divergence angle	Effective focal length	Numerical aperture (lens)	Package diameter	Connector	Access fiber type	Transmittance
1310nm	±5nm	0.90mm	0.11°+0.01°	4.74mm	0.24	11mm	FC/PC FC/APC SMA905	SMF-28e	>95%
1650nm	±5nm	2.15mm	0.058°+0.01°	11.36mm	0.23	11mm
1650nm	±5nm	3.64mm	0.035°+0.01°	18.81mm	0.15	11mm

Spots and divergence angles not listed can be customized

Packaging materials, packaging dimensions and other fiber connector types can be customized
