L-band ASE broadband light source

The fiber ASE broadband light source is an incoherent light source. It is the spontaneous radiation generated by semiconductor laser pumping erbium-doped quartz fiber. At the same time, the spectrum flattening technology is introduced to achieve broadband flat spectrum. The wavelength of the light source covers the L band, and the spectrum flatness is better than 3dB. It is output through single-mode fiber or polarization-maintaining fiber, which is suitable for applications such as fiber optic sensing.

Product features：Spectral flatness、 Adjustable power、 Highly stable output power

Application area：Fiber optic sensing、 Medical imaging、 Fiber optic device testing

Unit Price

Please contact customer service for a discounted quote.

Part Number

ASE-L-10-SM-B

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

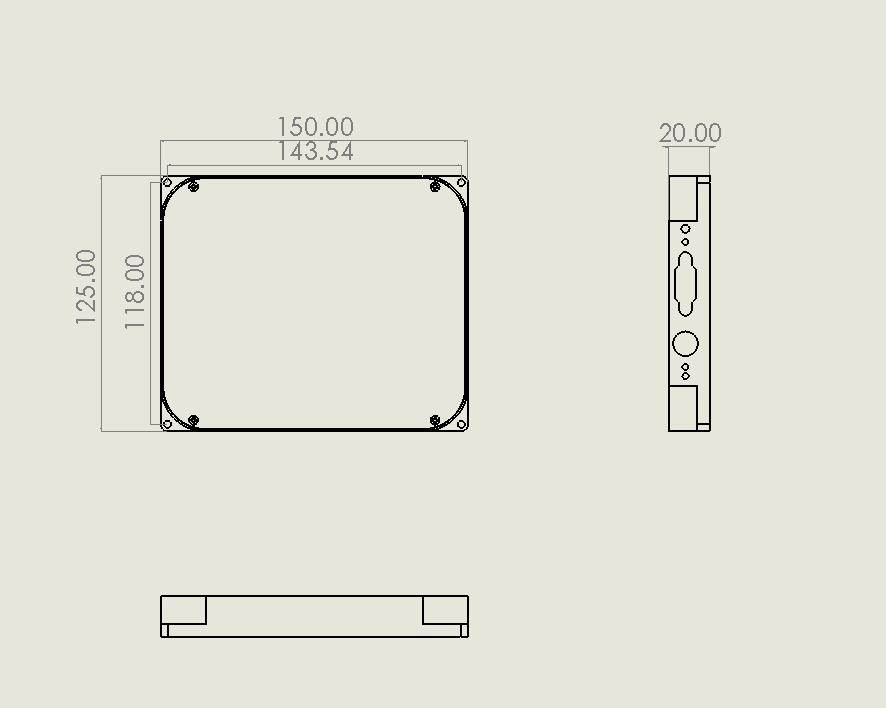

Dimensional Drawing

Parameter

Parameter	Unit	Typical	Notes
Spectral range	nm	1567~1603@2dB	1565~1610nm@10dB
Output optical power	mW	10/20/50/100	Constant power
Power adjustment range (optional function)	-	10%~100%	Unchanged spectral flatness
Spectral flatness	dB	2 (Type), 3(Max)
Output isolation	dB	>35
Short-term stability (15 minutes)	dB	≤ ±0.02	Equivalence≤±0.5%
Long-term stability (8 hours)	dB	≤ ±0.05	Equivalence≤±1.2%
Polarization degree DOP	dB	≤ 0.2
Pigtail type	-	SMF-28or PM1550 Polarization-mode
Pigtail connector type	-	FC/APC

Electrical and environmental parameters	Benchtop	Module
Control mode	Button	RS232 Serial communication
Communication interface	Optional	DB9 Female
Power supply	100~240VAC,<30W	5V DC,<15W
Dimensions	260(W)×280(D)×120(H)mm	125(W)×150(D)×20(H)mm
Operating temperature range	-5~+35°C
Operating humidity range	0~70%


Parameter	Unit	Min.	Typical	Max.	Notes
Wavelength range	nm	1528		1603	Covering C+L band
Spectral width Flatness	nm		73.4		@2 dB
Spectral width Flatness	nm		75.7		@3 dB
Output power	dB		2.5
Output isolation Operating temperature range	mW	1		100	Adjustable
Output isolation Operating temperature range	dBm		-
Operating humidity range	dB		35
Storage temperature range	℃	-5		+45
Power supply type	％			75
Pigtail connector type	℃	-40		+85
Output pigtail type	-	100~240V AC
Dimensions	-	FC /APC
Wavelength range	-	Corning SMF-28
Spectral width	mm	260×280×120
Communication interface and software	-	DB9-RS232，Software Version V20220401

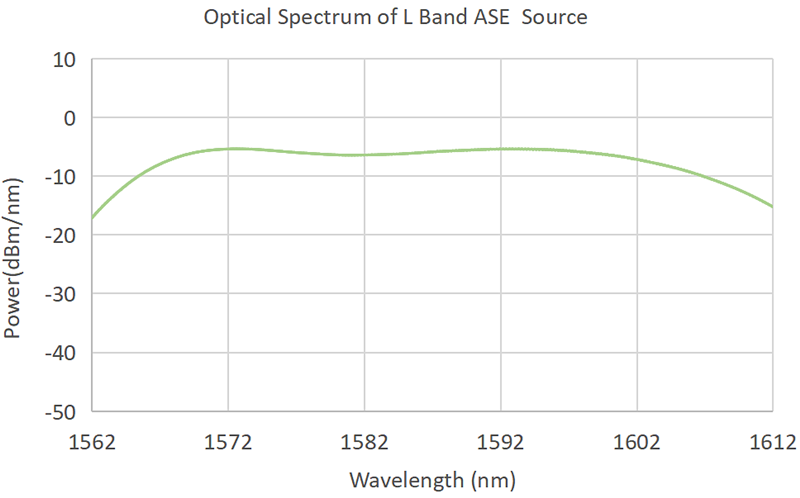

Spectral range@2dB

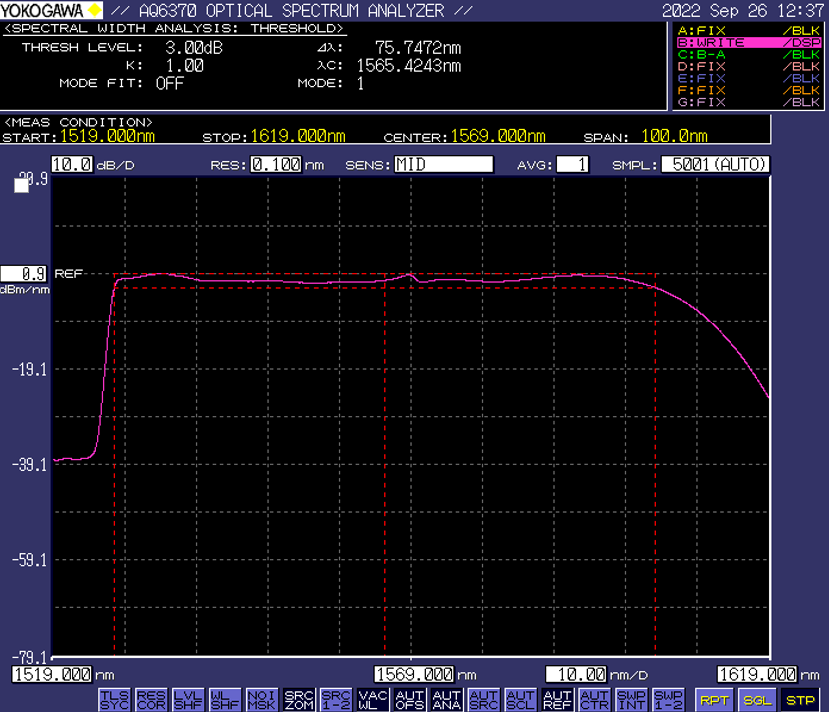

Spectral range@3dB

Ordering information / PN#

ASE

Spectral range

Output power (mW)

*Adjustable power (optional)

Output pigtail type

Package method

10/20/50/100

SM=Single mode fiber

PM=polarization-mode fiber

B=benchtop

M=module
