10.56um high power benchtop DFB-QCL mid-infrared quantum cascade laser 50mW (TDLAS integrated control module)
10.56um high power benchtop DFB-QCL mid-infrared quantum cascade laser 50mW (TDLAS integrated control module)
The QCL105600DFB-10.56um high-power benchtop DFB-QCL mid-infrared quantum cascade laser is a mid-infrared test laser developed by Idealphotonics in the first half of 2019. The low loss of the atmospheric window is conducive to the test research of space optical communications. Our benchtop light source has high power and does not require ITAR review, and is currently the first choice for commercial mid-infrared test light sources. The tunable range exceeds 100nm, and the output power is greater than 50mw to meet the industrial needs of customer testing. Our laser has a built-in Znse collimated output, stable output power, and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers.
Product features：High power、 Compact structure、 Intelligent software control、 Built-in FPGA
Application area：
Unit Price
Please contact customer service for a discounted quote.
Part Number
TDLAS-MIR-QCL-W10560-1-DFB-050
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Download Document
Dimensional Drawing

Parameter

parameter

Unit

Technology indication

Min.

Typical

Max.

PN#


QCL105600DFB

Output power(1)

mW

10

50

80

Peak operating wavelength(2)

um

10.55

10.56

10.57

Fiber width (FWHM)

MHZ

-

3

-

Output side mode suppression ratio(SMSR)

dB

30

-

-

M2 factor



＜1.2


Output light divergence angle

Mrad


＜2


Full beam waist diameter(5)

mm


＜4


Output isolation(3)

dB

-

30

-

Wavelength temperature coefficient

nm/K


1.00


Wavelength current coefficient

nm/A


57.1


Output power stability(15min)(4)

%

-

±0.5

±1.0

Output power stability(8h)(4)

%

-

±1.0

±2.0

Output power adjustable range

%

0

-

100

Output power adjustment mode


Software control

TEC stability

℃

-

±0.1

±0.2

TEC operating range

℃

0

30

50

Operating voltage

VAC

100

220

240

Electrical power consumption(5)

W

-

-

5

Operating temperature

℃

0

-

90

Storage temperature

℃

-40

-

85

Specifications and dimension

mm

343(L)×193(W)×180(H) benchtop

Technical Specifications：

1. Output power is optional;

2. Peak operating wavelength can be specified;

3. Output power stability test condition is 25 degrees, after 30 minutes of preheating;

4. Maximum power consumption refers to the overall power consumption under extreme working conditions.

5. I = 0.80 A, V = 8.7 V, T= 15 °C,Measured at 1/e2

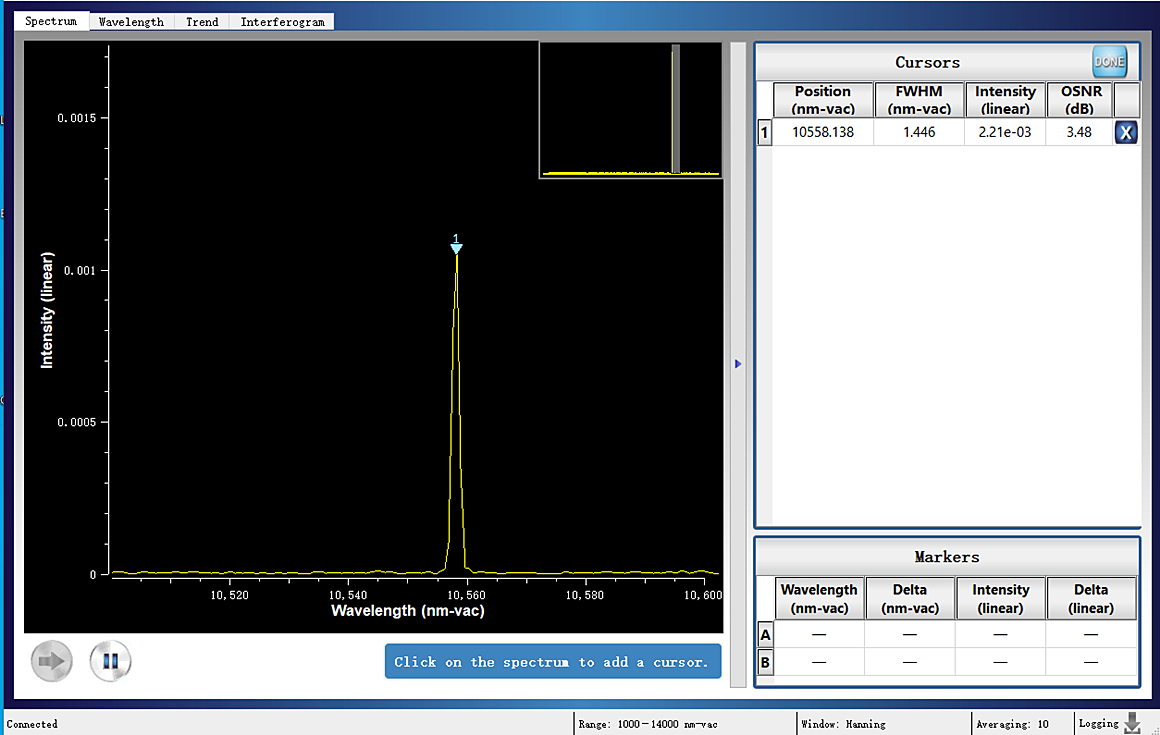

Laser spectrum (continuous)

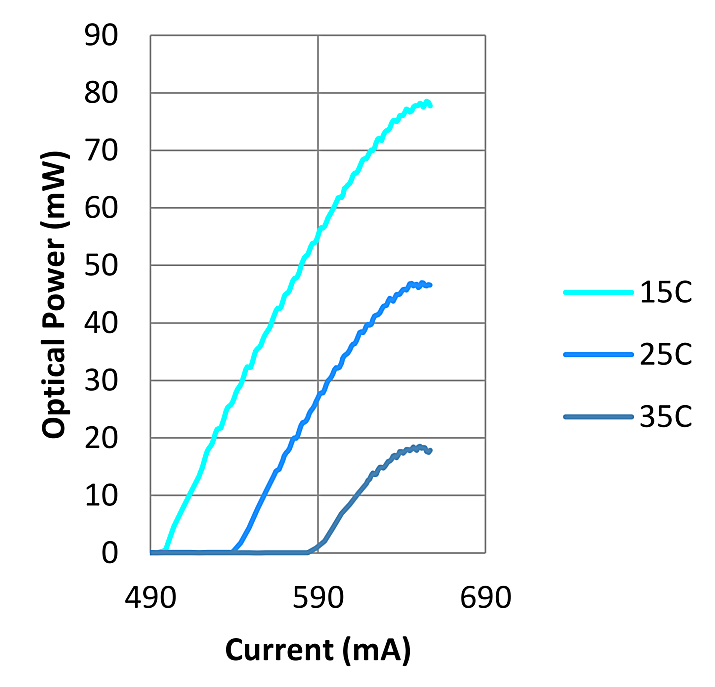

QCL laser characteristic curve (taking 10.56um typical wavelength as an example)Output power characteristic curve

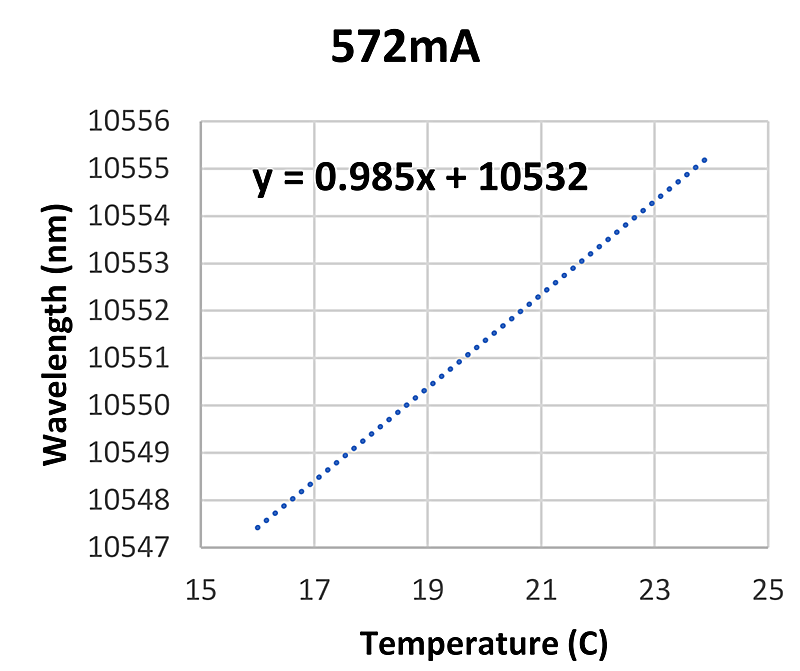

 Wavelength temperature curve

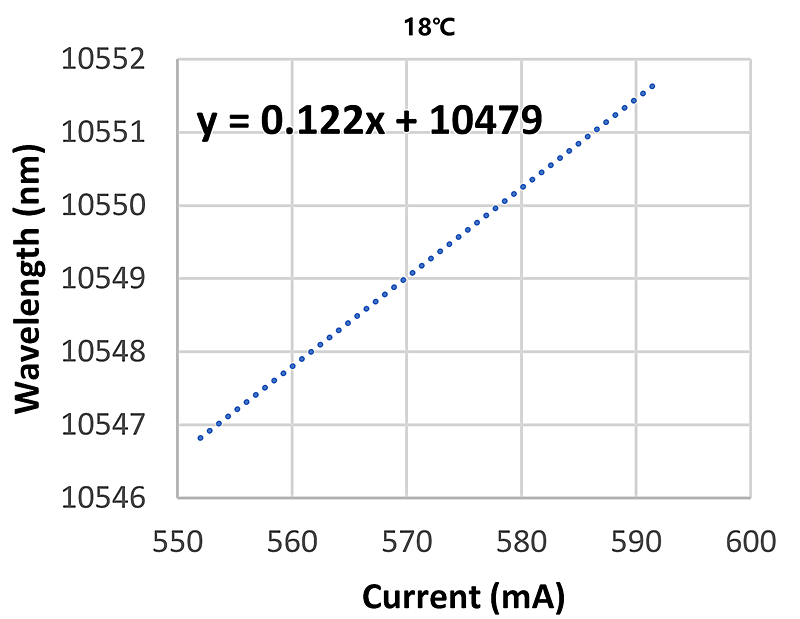

Wavelength current curve

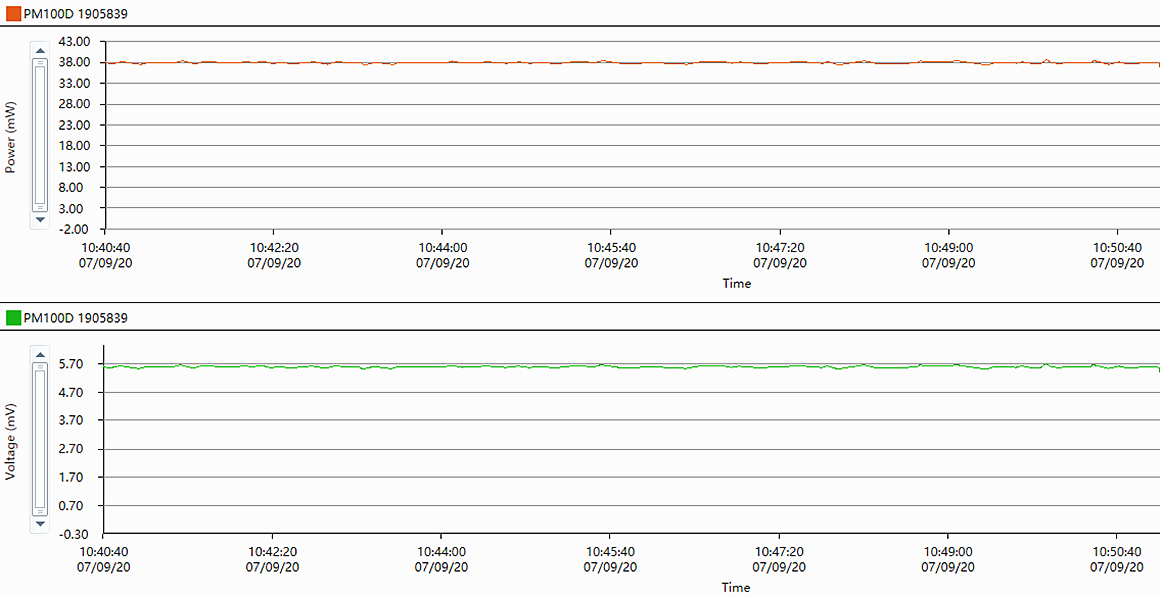

10.55um laser power stability test curve

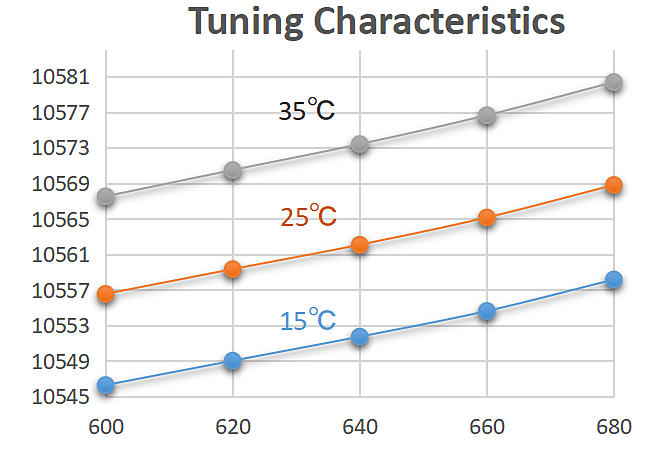

10.55um Tuning curve

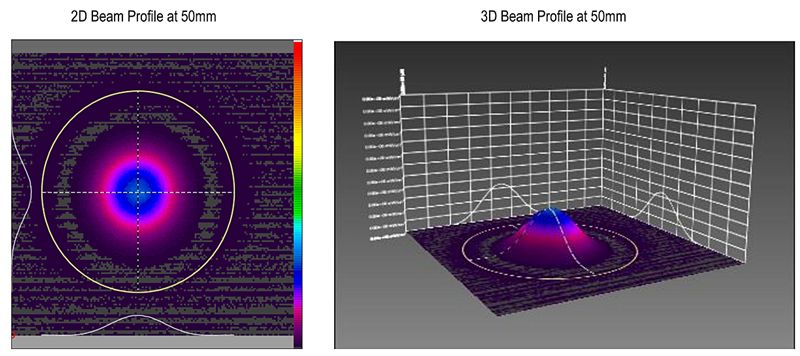

Spot analysis





Ordering Information

MIR-QCL- W□□□□ -☆-△-XX

W□□□□ : Wavelength

5260: 5260nm

7400: 7400nm

9000: 9000nm

105600: 105600nm

☆: collimated output

1: with

0: without

△: laser type

FP: QCL-FP

DFB: QCL-DFB

XX: output power

001=1mw

010=10mw

400=400mw

1000=10000mw
