1060nm SLD Benchtop Light Source 5mW

Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve highly stable laser output, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button) to effectively help customers return to the previous working state. This is a highly integrated modular system light source that uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser in some application fields. We have connected two external modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

Product features：Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

Application area：Fiber optic transmission system、 Fiber optic gyroscope、 Fiber optic sensor、 Optical coherence tomography、 Test light source

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-1060

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Driver Parameters

characteristic	Min.	Max.	Unit	Note
Power supply voltage	100	230	VAC	Mains electricity
power	5	20	W
Laser driver current	0	128	mA	patch cord can choose
		266
		590
Laser driver voltage	0	3.1	V
Response frequency	0	15	MHz	@250mA
Temperature control range	0	5	℃	-3db
TEC output current	-1.5	1.5	A
TEC output voltage	-4.4	+4.4	V
Analog input (low frequency)	-2.5	2.5	V
Analog input (High frequency)	-2.5	2.5	V
PDmonitoring range	0	2	mA

Laser parameters

Parameters	Symbol	Min.	Typical value	Max.	Unit
Wavelength	λ		1060		nm
Spectral width	Δλ	50	60	70	nm
Threshold current	I_th		30	40	mA
Operating current	I_op		200	300	mA
Output power	P_f	3	5	10	mW
Polarization extinction ratio	PER	17	20		dB
Fiber type	HI1060 / PM980
Operating voltage	V_f		1.8	2.5	V
Thermistor	R_T	9.5	10	10.5	KΩ
Connector type	FC/APC

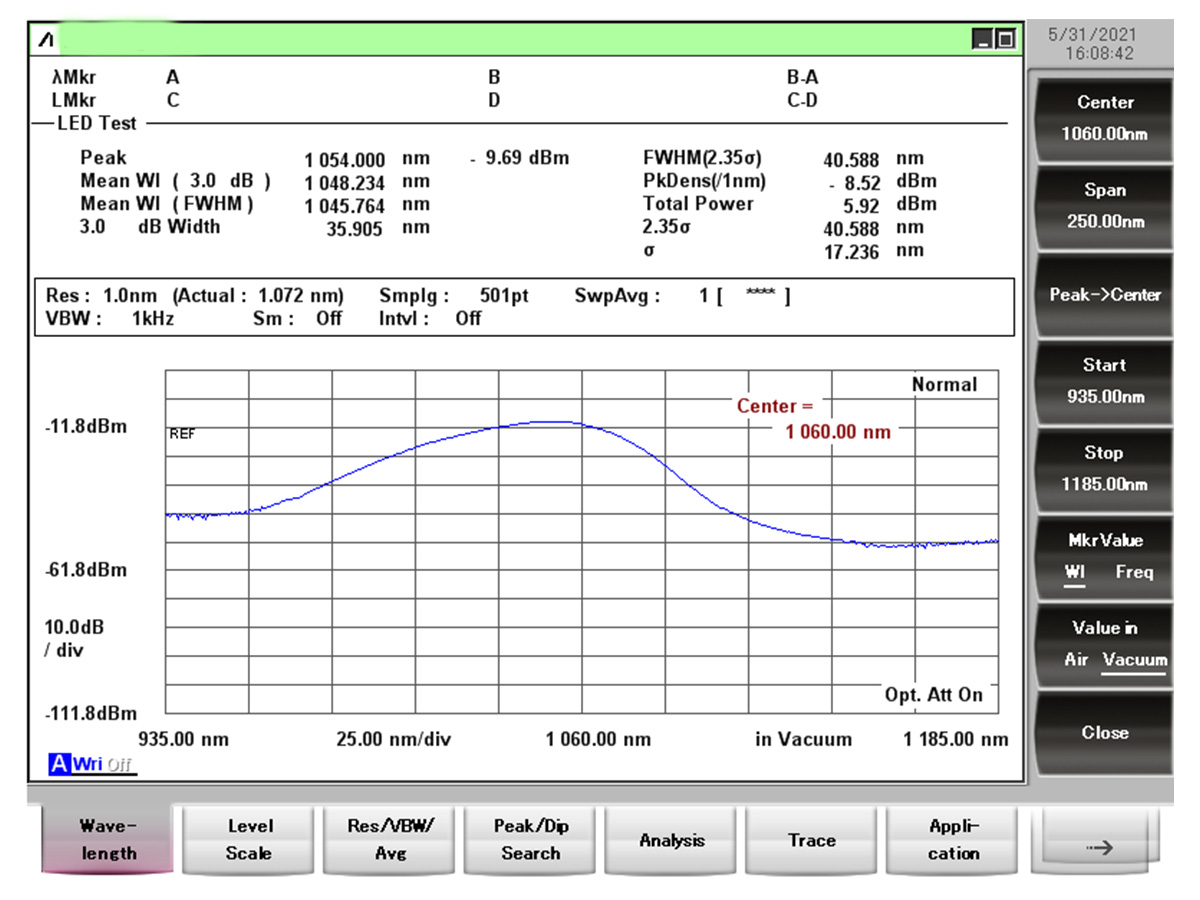

Test spectrum

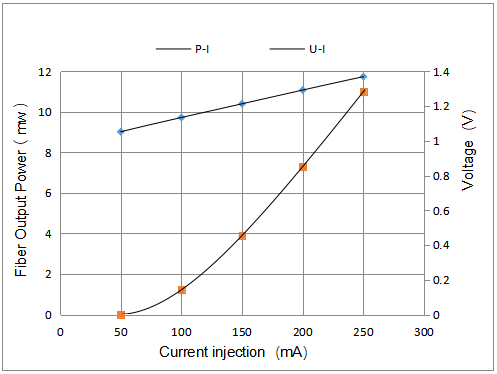

Power curve

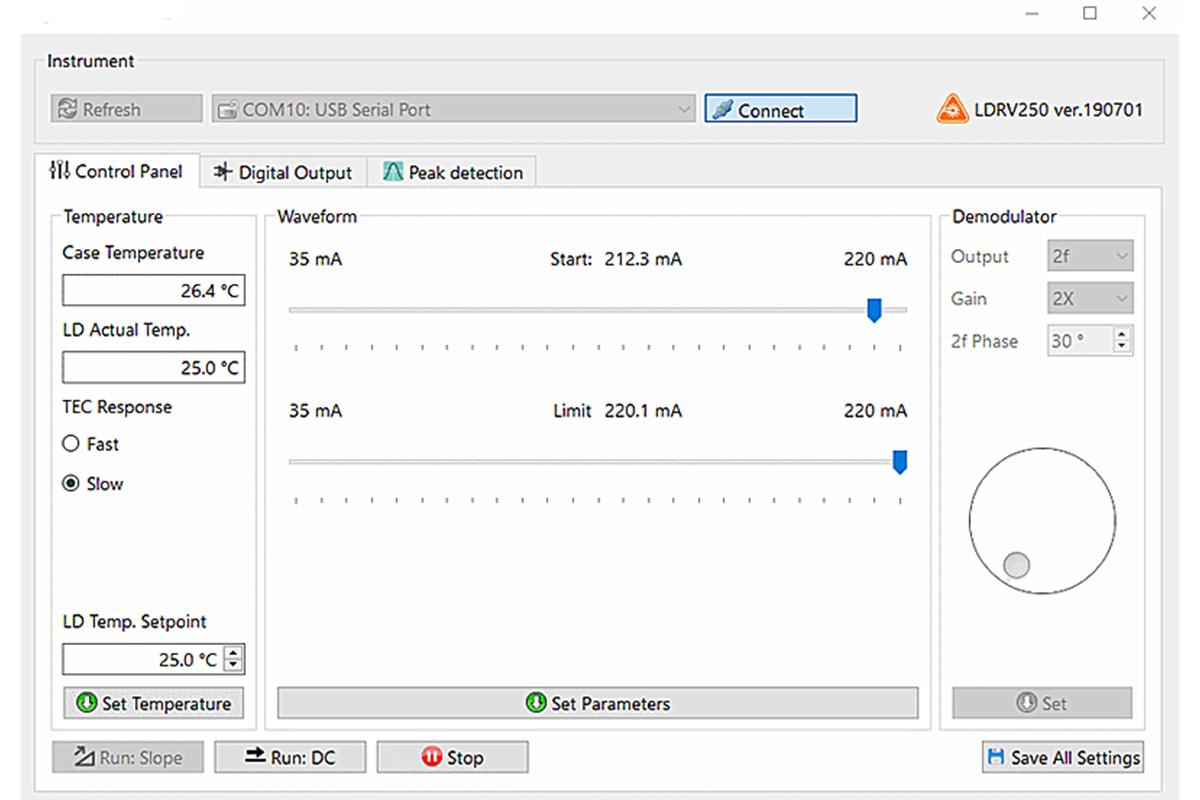

Control software interface
