3.39um low power benchtop ICL-DFB tunable continuous light laser (TDLAS integrated control module) 5mW

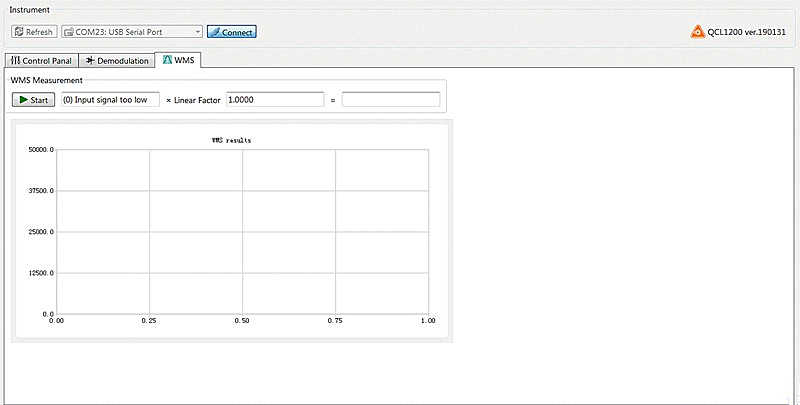

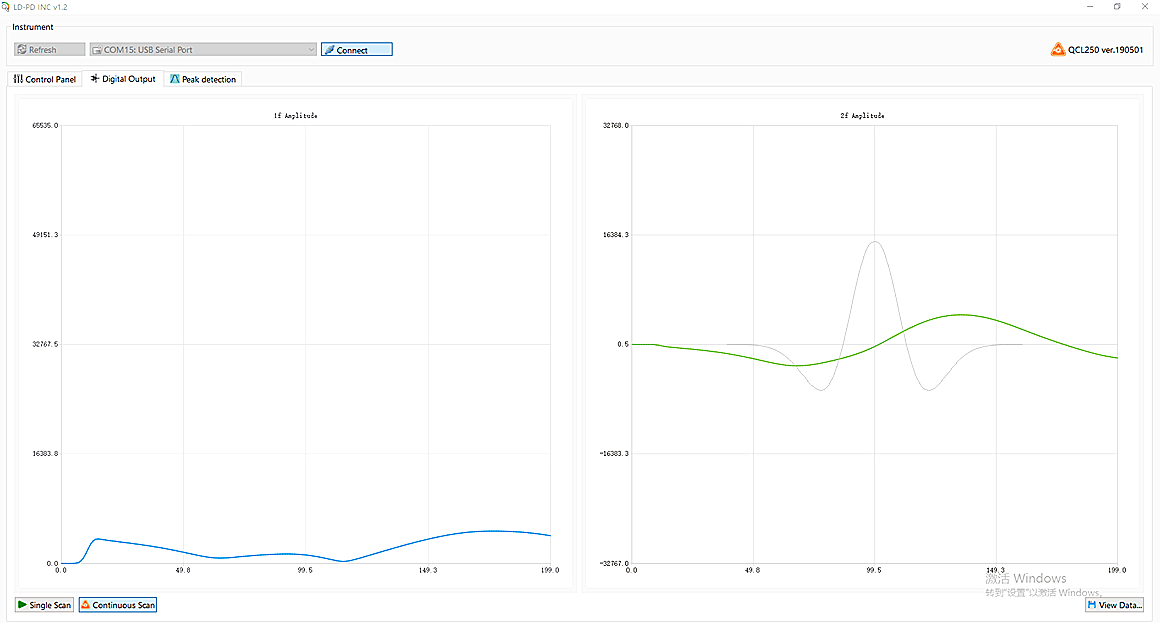

The 3.39um ICL-DFB laser is a tunable continuous light laser developed by Idealphotonics. It has a narrow line width, high power, and low power consumption. It can meet the gas sensing test, especially for the test of hydrocarbons and other related gases. In addition, the benchtop ICL-DFB laser module integrates a driver and temperature control module. The temperature and operating current of the tuned laser can also be controlled by software, which can make the laser work stably and maintain the accuracy of the measured value. FPGA is also added inside the laser module to facilitate the processing of the concentration of the measured gas.

Product features：Continuous wave、 Single-mode spectrum、 Adjustable light source、 Low power consumption、 High-quality beam、 Narrow line width、 Software intelligent control、 Small structure

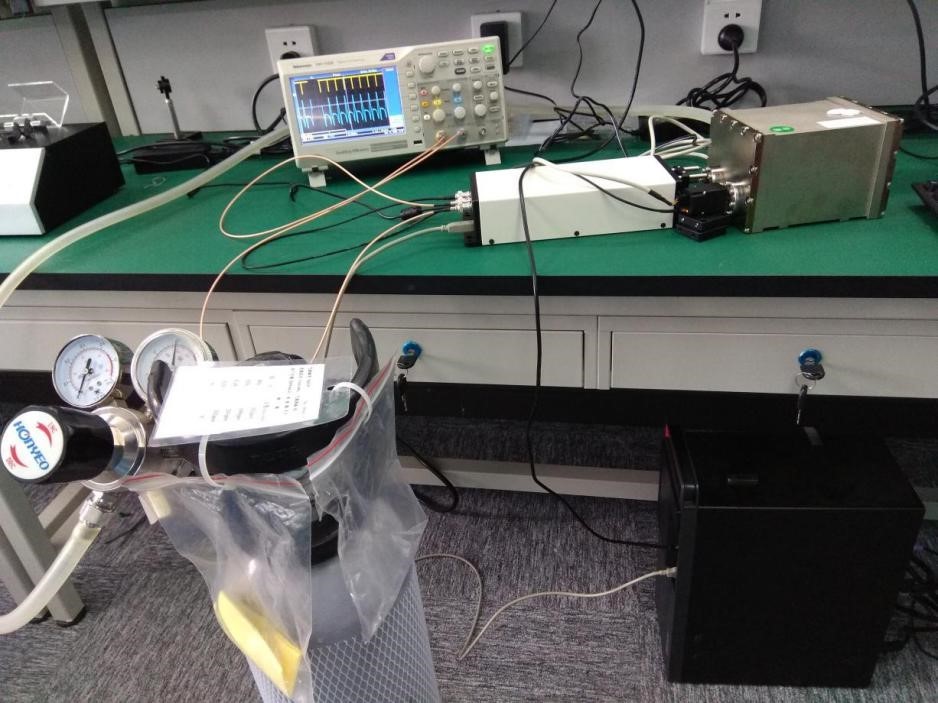

Application area：TDLAS gas system measurement setup、 Mid-infrared system light source、 Mid-infrared device analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

TDLAS-MIR-ICL-W3390-3-DFB-05

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Technical indicators
		Min.	Typical	Max.
		3.39um ICL-DFB

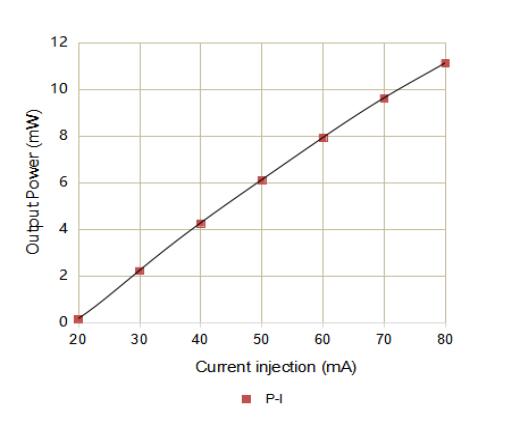

Laser output power	mW	0.5	5	8
Peak operating wavelength	um		3.39

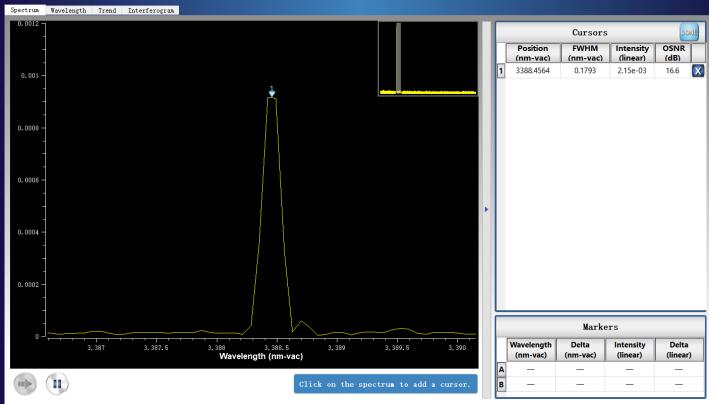

Spectral width (FWHM)	MHz		3
Output side mode suppression ratio (SMSR)	dB		20	30

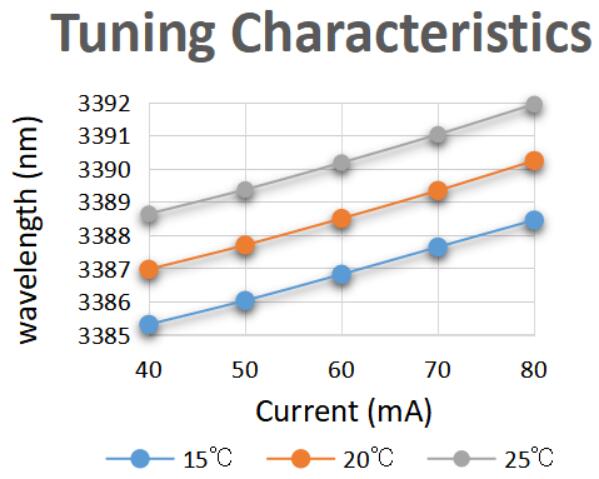

Wavelength tuning range	nm	6	10	25
Wavelength temperature coefficient	nm/℃		0.32
Wavelength current coefficient	nm/mA		0.06

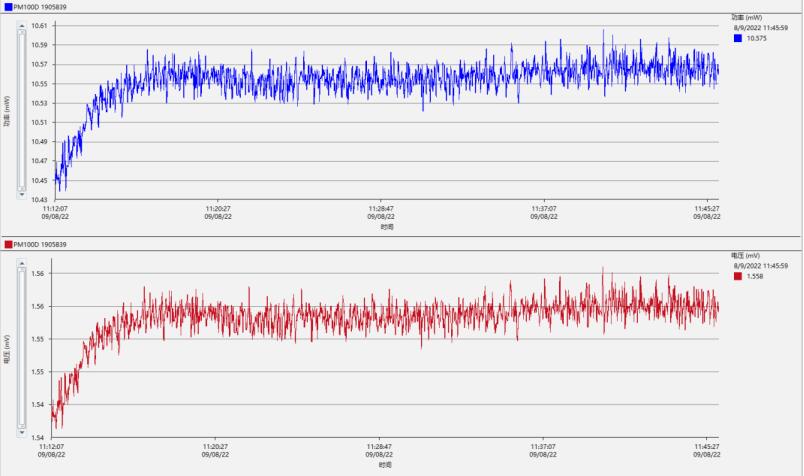

Output power stability (8 hours)	%		±1	±4
Output power adjustable range	%	0		100
Operating current	mA	40	80	140
Threshold current	mA	25	40	80
Operating voltage	V	7	9	12
Chip operating temperature	℃	-20	10	40
Storage temperature	℃	15	20	65
Specifications and dimensions	mm	340(L)×240(W)×100(H)
