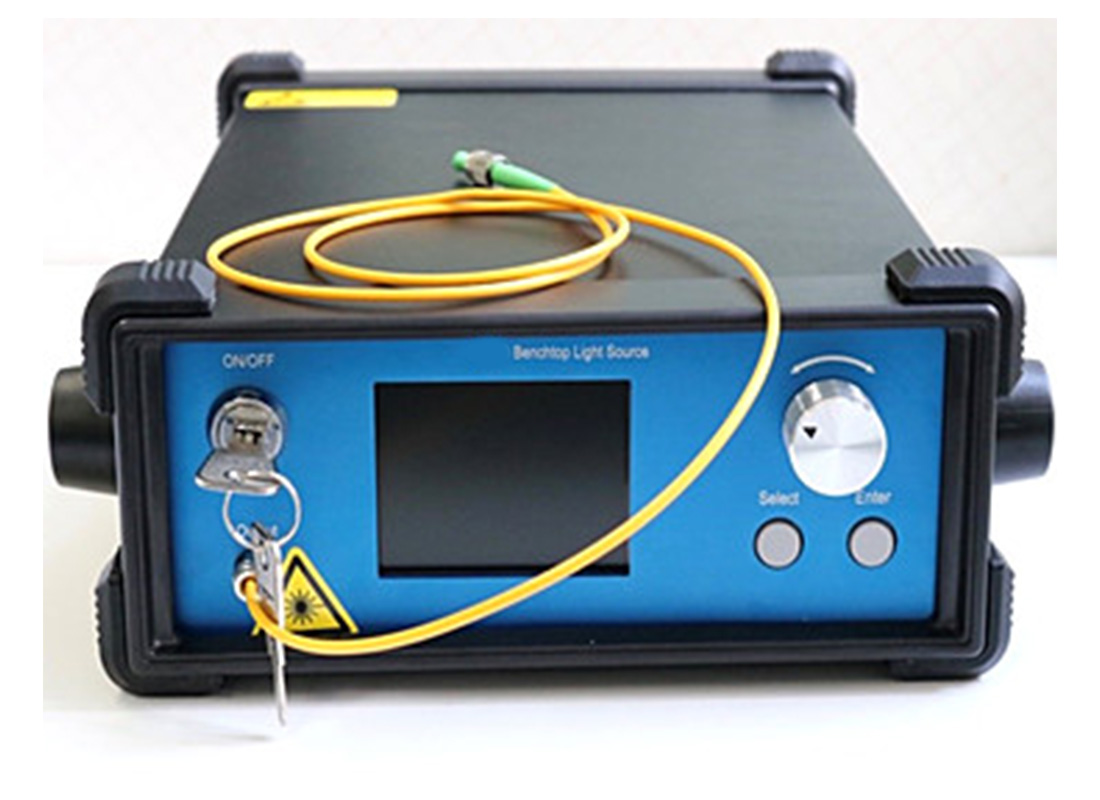

980nm 1W Benchtop light source

Our Cobrite series 980nm high-stability single-mode pump light source uses a single-mode semiconductor laser with a FBG wavelength-stabilized grating, which has a stable wavelength and high output power. The control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits, achieves high-stability output of the laser, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses the Turn-Key pump laser protection function, which can effectively prevent customers from misoperation. The power can be roughly adjusted (stepped by 50mw) or finely adjusted in steps of 0.1mw. Our Cobrite series 980nm single-mode pump light source is a high-stability pump light source designed for applications such as high-power fiber amplifiers and mode-locked fiber lasers. Since the ASE light generated by active optical fibers can easily damage the pump laser, our Laser provides targeted pump protection solutions to further improve the safety of the pump light source. Our Cobrite series 980nm single-mode pump light source is a highly functional desktop system light source with a high-definition LCD display, continuously adjustable output power, and synchronous display of current and voltage. It is very suitable for experimental scientific research and production testing. In addition, the company can also provide modular packaging according to user requirements to facilitate system integration.

Product features：Single-mode high-power output: up to 1W、 FBG grating locks wavelength, no drift、 ASE optical isolation protection design、 Output power is stable and continuously adjustable、 LCD status display、 High-precision ACC and ATC control circuit、 Built-in isolator optional、 HI1060 fiber/PM980 fiber optional

Application area：High power low noise EDFA、 Mode-locked fiber laser、 Ytterbium-doped fiber amplifier、 Test measurement、 Nonlinear effect research

Unit Price

Please contact customer service for a discounted quote.

Part Number

COBRITE-980-B-1000-0

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameter:

Technical Parameters	Unit	Technical indicators
Technical Parameters	Unit	Min.	Typ.	Max.
PN#		COBRITE-980-B
PN#		COBRITE-980-M
Output power1	mW	90	-	1000mW
Peak operating wavelength2	nm	970	975	985mW
Spectral width (FWHM) with FBG	nm	-	0.5	-
Output side mode suppression ratio (SMSR)	dB	20	-	-
Output isolation3	dB	-	30	-
Output power stability (15 minutes)4	%	-	±0.5	±1.0
Output power stability (8 hours)4	%	-	±1.0	±2.0
Output power adjustable range	%	0	-	100
Output power adjustment mode		Coarse adjustment/fine adjustment
TEC stability	℃	-	±0.1	±0.2
TEC operating range	℃	25	30	35
Operating voltage	VAC	100	220	240
Electrical power consumption5	VV	-	-	30
Operating temperature	℃	0	-	50
Storage temperature	℃	-40	-	85
Output fiber type		HI1060 fiber/PM980 fiber optional, Corning HI-1060 6/125umNA=0.13
Output fiber length	m	> 1
Output fiber connector		FC/APC
Dimensions	mm	340(L)×240(W)×100(H) Benchtop
Dimensions	mm	150(L)×125(W)×25(H) Module

Technical indicators: 1. Output power is optional;

2. Peak operating wavelength can be specified;

3. Isolation refers to the isolation for ASE light;

4 The output power stability test condition is 25 degrees, after 30 minutes of preheating; 5. Maximum power consumption refers to the overall power consumption under extreme working conditions.

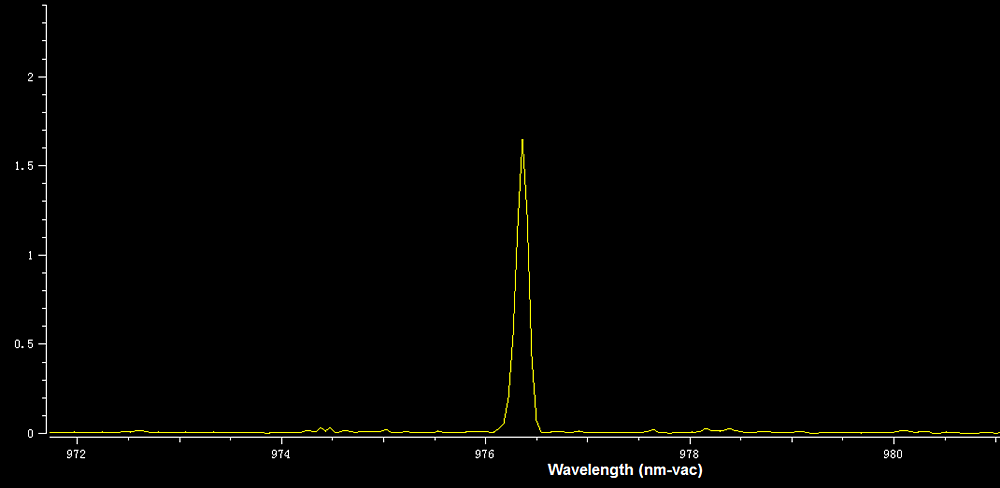

Spectrum:

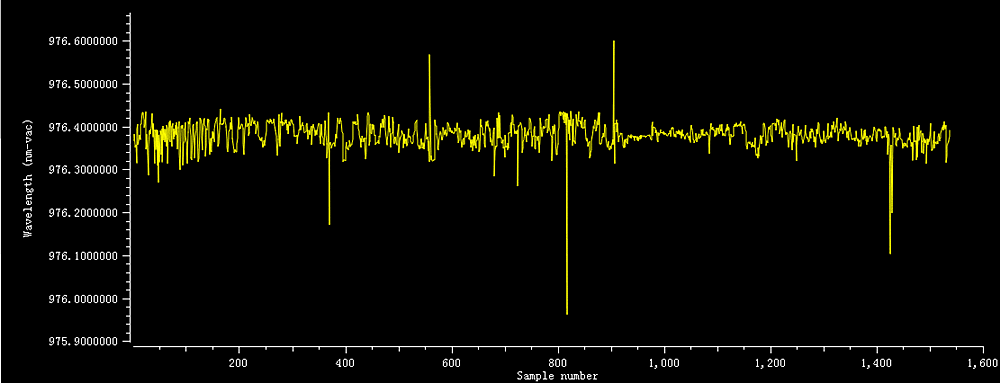

Wavelength stability test:

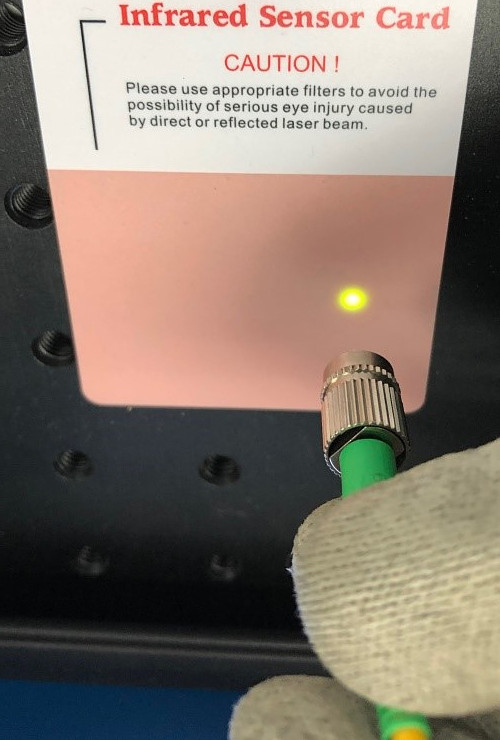

Spot quality:

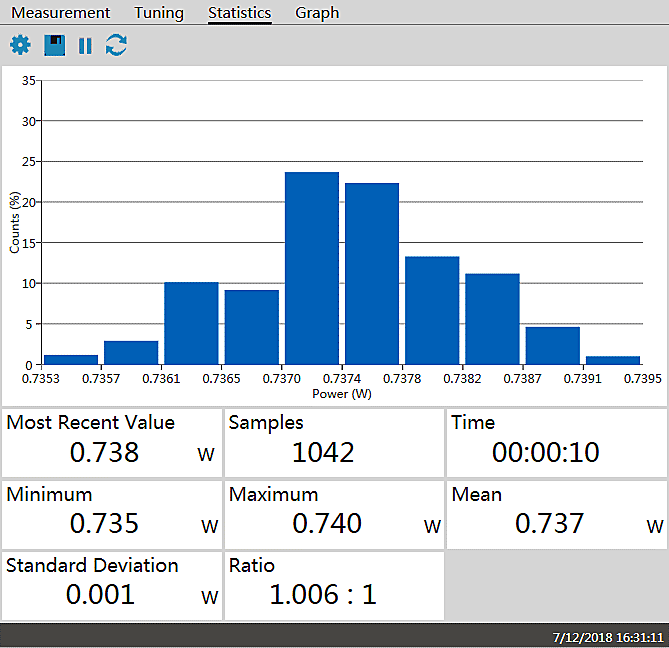

Power test table:

Order Info:

COBRITE-980-PG-OPP-ISO

PG: Package type

B: Desktop M: Module

OPP (Output Power): Output power, unit mW.

For example: 300-300mW, 800-800mW

ISO: Built-in 980nm pump isolator protection 0-None, 1-Pump protection
