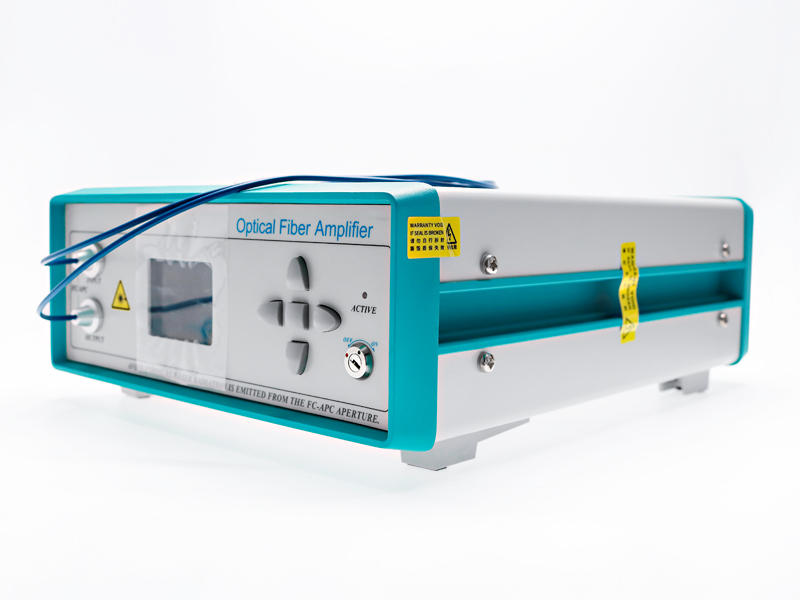

L-Band Polarization Maintaining Erbium-Doped Fiber Amplifier 3W

Our optical amplifier modules have optional bands: O-band, S-band, C-band, and L-band. Optional amplifier types: Booster Amplifier, Pre-Amplifier. Low noise, gain 8dB~40dB optional. EDFA-L-B-30-ISO series is an L-band fiber amplifier with a wavelength of 1565~1580nm. It has a wide range of applications including high-speed data signals, image signals, and femtosecond pulse amplification applications. For WDM signals, it has excellent gain smoothness throughout the L-band broadband. Maximum output, input/output fiber, control method and appearance can be customized.

Product features：Output power: 20-40dBm、 Excellent noise figure、 Flat gain spectrum、 Low cost、 Output power and pump current monitoring、 ACC / ALC mode operation

Application area：Optical communications、 Test and measurement、 Scientific applications

Unit Price

Please contact customer service for a discounted quote.

Part Number

EDFA-L-B-35-1-PA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Electrical/optical properties:

Parameters	Unit	Min.	Typ.	Max.
Operating wavelength range	nm	1565	-	1580
Input optical power	dBm	-6	-	10
Output power	W	-	-	3
Noise index	dB	-	-	6
Operating temperature	℃	-5	-	+45
Operating humidity range	%	-	-	75
Storage temperature range	℃	-40	-	+85
Power supply		AC 110-240V
Operating mode		ACC/APC
Pigtail		PM1550 Ø3mmSlow axis alignment
Connector type		FC/APC
Dimensions	mm	260（W）X 320（D）X 120（H）

Note: If the input signal is a pulse laser with a repetition rate of less than 1MHz, do not use the APC mode, only the ACC mode can be used.

Order Info:

EDFA-△-PG-OPP-ISO

△ :

C=C band

L=L Band

C+L=C+L Band

PG: Package

B: Benchtop

M: Module

OPP (Output Power): dBm

Such as: 16-16dbm，23-23dBm

ISO: Built-in isolator protection

0-Non

1-Pump protection

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC
