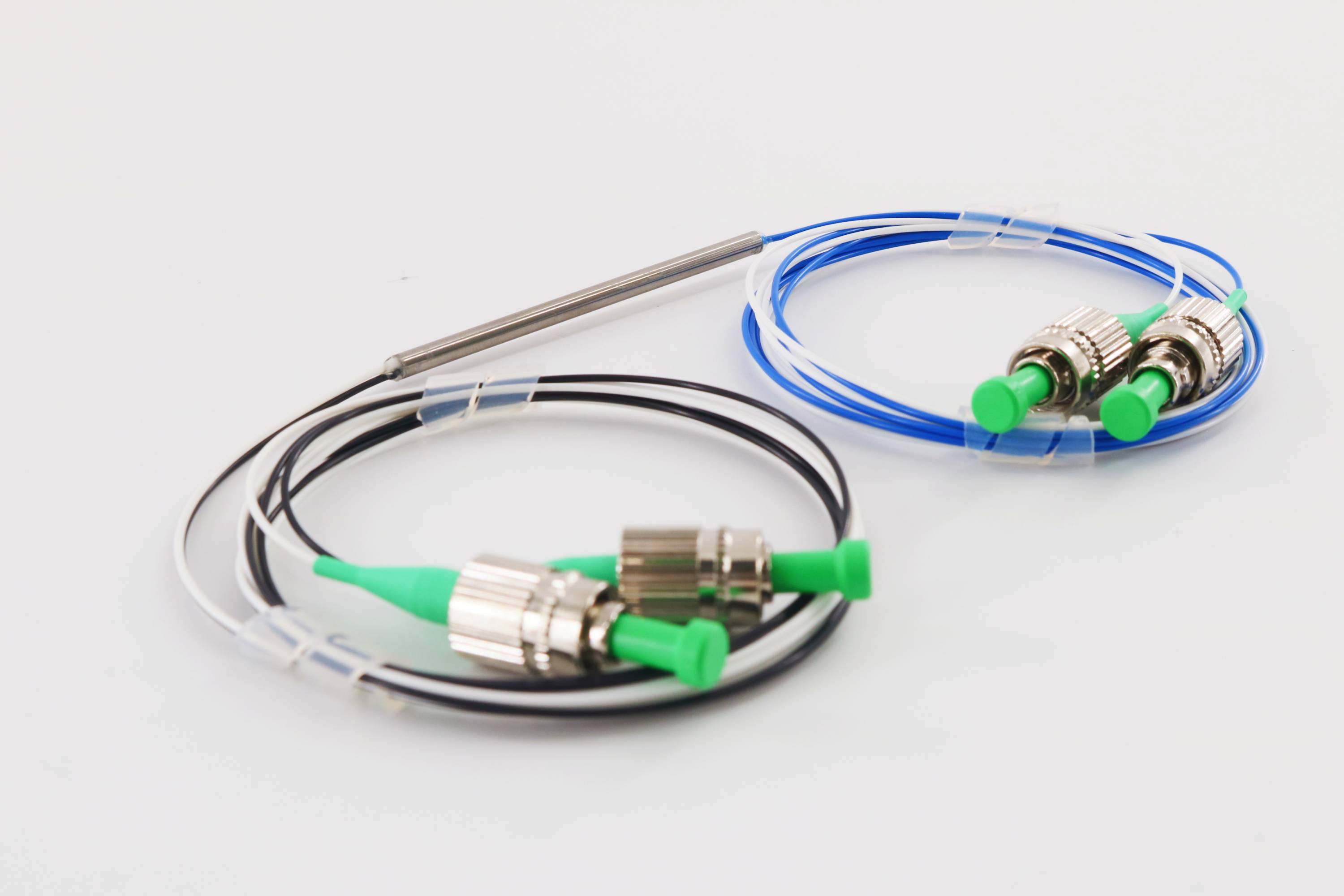

10:90 840±15nm 1x2 single mode Fiber Coupler

VIS-FC-W0633 VISIBLE series single-mode fiber couplers are developed and produced based on our single-mode fiber fusion taper machine IPCS-5000-SMT. They are used for visible light band splitting. They have excellent performance. We can provide customers with narrowband couplers with central wavelengths of 405nm, 488nm, 532nm, 633nm, and 650nm. The bandwidth is ±20 nm. The Max. power of our couplers with connectors or bare fibers is 500 mW. We have 50:50, 75:25, 90:10 or 99:1 coupling ratio couplers for customers. Our 2x2 couplers are based on the fusion taper process, so they are bidirectional, and any port can be used as the input.

Product features：Fused fiber couplers for 405nm 488nm 532nm 633 nm、 50:50, 75:25, 90:10, or 99:1 coupling ratios、 Bidirectional coupling (either end can be used as input)、 2.0 mm narrow key FC/PC or FC/APC connectors、 Each broadband coupler comes with its own test report

Application area：Visible light communication、 Power monitoring、 Optical splitter、 Test equipment

Unit Price

Please contact customer service for a discounted quote.

Part Number

VIS-FC-W0840-S12-CR1090-1-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

VIS -FC-650 Parameter
Spectral
Bandwidth	650 nm
Insertion loss	±20 nm
Return loss	＜3 .7 dB
Fiber type	> 55dB
Operating power	630-HP/S M600
Connector	500mw
Operating temperature	FC/APC or FC/PC
Storage temperature	-10 -+70 ℃
PDL	-45 -+85 ℃
Uniformity	≤ 0 . 15 dB
Bandwidth	≤ 1 .0 dB
Dimension
Package size	3 .0mm ( Ф) x 60 .0mm (L)
Pigtail length	1m
Is charging working	No

Note: 1. All test results do not include connectors.

2. We can accept customization for better parameters or other requirements

Single point data test 1X2, 50:50 (633nm, 5mw single mode fiber coupled laser test as an example)

VIS-FC- W0633-633nm Black port

VIS-FC- W0633-633nm White port

Ordering information

VIS-FC- W□□□□-S○-CR▽-☆-△-XX

W□□□□：Wavelength

0405: 405nm

0488: 488nm

0532: 532nm

0633: 633nm

*****

0650: 650nm

S ○ ：Port Structure

12: 1x2

22: 2x2

13: 1x3

33: 3x3

CR▽ :

0199: 1 : 99

1090: 10: 90

5050: 50: 50

☆ :Pigtail Length

05: 0 . 5m

1： 1m

10: 10m

△：Loose Tube

B: Bare Fiber

9 : 900um Loose Tube

20: 2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PA=PMFiber+ FC/APC

PP=PMFiber+ FC/PC
