1550nm polarization-maintaining acousto-optic modulator

Idealphotonics' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power tolerance. This product is specially developed for the application needs of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), good pulse repeatability (small repetition period jitter), etc., and the modulator and driver can be packaged in an integrated manner, which is convenient for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, and OFDR.

Product features：Small size、 Low power consumption (<500mW)、 Fast rise time (12ns)、 Good modulated pulse shape (small overshoot)、 Good pulse repeatability (small repetition period jitter)

Application area：Fiber optic sensing、 LiDAR、 BOTDA

Unit Price

Please contact customer service for a discounted quote.

Part Number

AOM100-1550-1(X)

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	PN#
Parameter	Unit	AOM100-1550-1(X)	AOM150-1550-1(X)	AOM200-1550-1(X)
material	-	Tellurium oxide
Wavelength	nm	1550
Laser power	W	≤0.5
Pulse laser peak power	kW	≤1（5W customized）
Insertion loss	dB	≤3	≤4	≤5
Extinction ratio	dB	≥50
Polarization extinction ratio (applicable to polarization-maintaining devices)	dB	≥20
Voltage standing wave ratio	1	≤1.2:1
Light pulse rise time	ns	40	20	12
Operating frequency	MHz	100	150	200
Fiber type	-	SM or PM
Fiber connector	-	FC/APC
Appearance structure	-	Figure A
Driver		D100-02-M-1D	D150-02-M-1D	D200-02-M-1D

Drive parameter

Parameter	Unit	PN#
Parameter	Unit	D100-02-M-1D	D150-02-M-1D	D200-02-M-1D
Operating frequency	MHz	100	150	200
Drive power	W	≤2.5	≤3	≤3
Electric pulse rise time	ns	≤20	≤15	≤7.5
Power switching ratio	dB	≥55
Power supply voltage (DC)	V	24
Harmonic suppression	dBc	≥25
Modulation mode	-	TTL
Output impedance	Ω	50
Appearance structure	-	Figure B

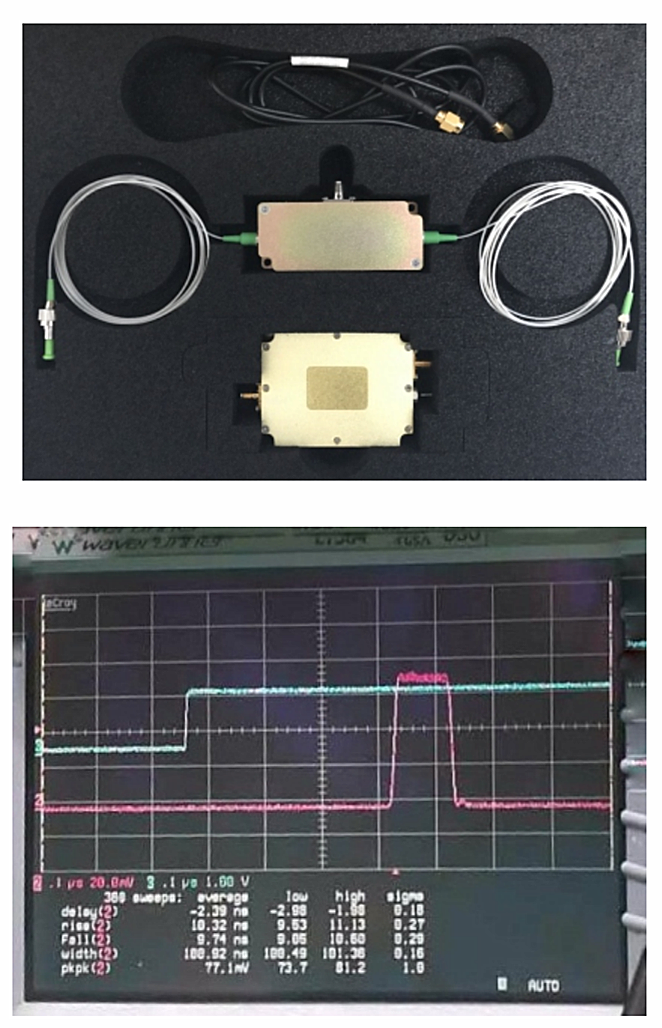

Modulation Curve
