1310nm single-mode small spot fiber collimator

Idealphotonics' collimator products have sufficiently wide bandwidth, high return loss, and low polarization-dependent loss optical performance, which enable them to be widely used in various laser systems. At the same time, we can also easily provide customized product types such as various spot sizes, working distances, and product sizes.

Product features：Low insertion loss、 No glue in optical path、 Compact structure、 High reliability and stability

Application area：Fiber optic devices and modules、 Free space optical path integration、 Optical test system、 Sensing system

Unit Price

Please contact customer service for a discounted quote.

Part Number

PFCC1-11C11110

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

parameter	Unit	Value	Note
Operating wavelength	nm	1310 or 1550	Other wavelengths available
Bandwidth	nm	60
Lens type	N/A	C-lens / G-lens
Fiber type	N/A	SMF-28e+	Other fiber type available
Operating distance	mm	5.5 +/- 0.5 (standards)	Other distances available
Insertion loss	dB	0.15 (Typ.)0.20 (Max.)	A pair of collimator losses
Return loss	dB	60
Optical power	mW	500
Spot size	mm	0.35 (Typ.)0.50 (Max.)	2ω at 1/e²
Operating temperature	0C	-5 ~ 70	Wider temperature
Storage temperature	0C	-40 ~ 85
Dimension (ФDx A)	mm	Ф 3.20 × 9 (with metal tube)	Customizable on request
		Ф2.78 × 9 (with glass tube)
		Ф1.65 × 6 (with glass tube)
Lens exposed	mm	1.0~2.0	Customizable on request
Fiber head exposed	mm	0~2.0	Customizable on request

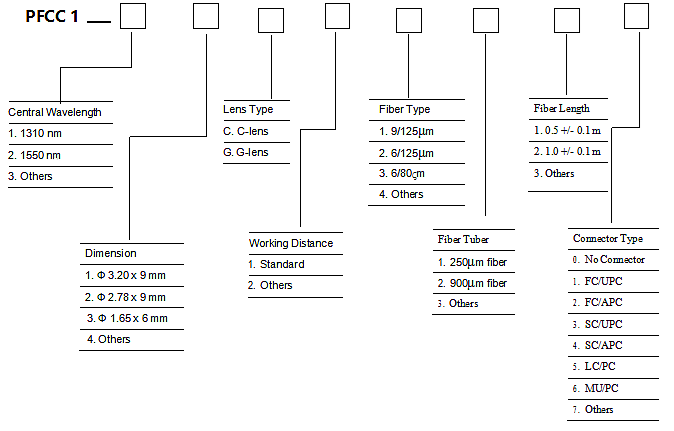

Ordering information

E.g. : PFCC1-11C11110
