Parameters
Parameter | Unit | Min. | Typical | Max. |
PN# | LIM-1310-3G-PM-FA | |||
Half-wave voltage DC electrode | V | 6.5 | 7.0 | |
Electro-optical bandwidth S21@-3dB | GHz | 3 | ||
RF half-wave voltage @DC | V | 3.5 | 4.0 | |
Bias half-wave voltage | V | 5.0 | ||
Jitter | dB | 0.5 | 1 | |
Electrical return loss S110-20GHz | dB | -12 | -10 | |
RF connector input resistance | Ω | 40 | ||
Input impedance DC connector | Ω | >1M | ||
Crystal: Lithium Niobate | X-cut Y-propagation | |||
Waveguide process | APE Process | |||
Insertion loss | dB | 3.0 | 4.0 | |
Optical return loss | dB | <-45 | ||
Wavelength-dependent loss (1480-1600nm) | dB | 0.5 | 1.0 | |
DC extinction ratio | dB | 20 | 22 | |
Input fiber | Panda polarization-maintaining fiber 1.5 meters long, 900um | |||
Output fiber | SMF-28 single-mode fiber 1.5 meters long, 900um (PMF optional) | |||
Input RF connector | SMA | |||
DC connector | Pin feed-through diameter: 1.0mm | |||
Package size | mm | 110 x12.5 x9.0 | ||
Operating temperature | ℃ | 0~ +70 | ||
Storage temperature | ℃ | -40 ~ +85 | ||
DC input maximum voltage | V | ±20 | ||
Maximum RF input power | dBm | +28 | ||
Maximum input optical power | mW | 200 (APE process) |
Performance Display

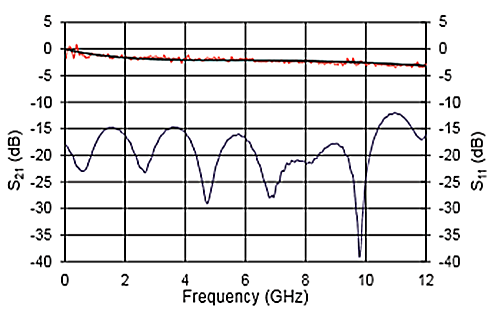

(S21 and S11 curves)

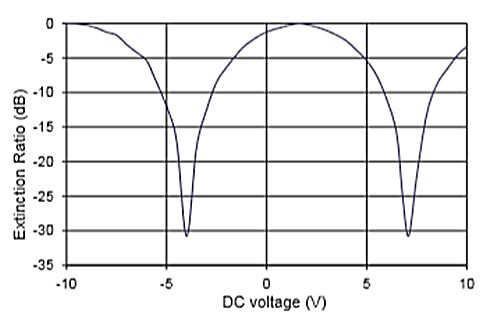

(Pulse extinction ratio)

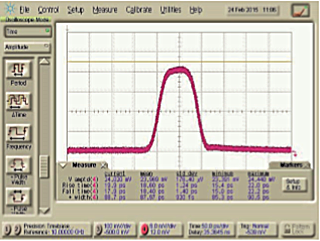

(100ps square wave pulse generation)
Ordering Information
LIM-W-BW-XX-Y-Z-AB-CD
wavelength:
0850:850nm,
1064:1064nm,
1310:1310nm
BW:Electro-optical bandwidth
3G represent >03GHz;
10G represent >10GHz
Y:input fiber;
P represent polarization-maintaining fiber;
S represent single mode fiber
Z:output fiber;
P represent polarization-maintaining fiber;
S represent single mode fiber
AB:input fiber connector
00 represent bare fiber;
FA represent FC/APC;
FC represent FC/SPC
CD:output fiber connector
00 represent bare fiber;
FA represent FC/APC;
FC represent FC/SPC
