1550nm Faraday Rotator Michelson Interferometer 2X2

The Faraday Rotator Mirror (FRM) method is an important solution for suppressing polarization-induced signal fading in interferometric fiber optic sensing systems. In theory, it can completely eliminate polarization fading, but since the rotation angle of the selected FRM is not exactly 45°, residual polarization-induced phase noise will appear in the system. The Faraday Rotator Mirror Michelson interferometer used in the hydrophone can control the difference in length of the two arms to within 1 mm, achieving a low-cost miniaturized design.

Product features：Moisture resistant、 Pressure resistant、 Miniature、 Specially designed for hydrophones simplifies optical design

Application area：Fiber optic sensing、 Fiber optic hydrophone

Unit Price

Please contact customer service for a discounted quote.

Part Number

MIM-W1550-22-SN-L1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Structure	Unit	1X2/2X2
Working wavelength	nm	1310/1550
Working bandwidth	nm	±20nm
Operating power	mW	500
Insertion loss	dB	3.8
Polarization loss	dB	0.1
Split ratio deviation	%	3
Rotation angle	Deg	45
Arm length difference error	mm	1
Fiber model		SMF-28E+
Fiber diameter	um	9/125
Package size	mm	2.4X25-2.4x12

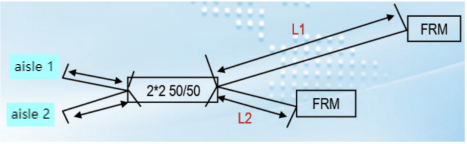

Interference optical path

High temperature storage	Temperature: +85P ±3,0	5000 hours
Low temperature storage	Temperature: -55X) ±3t	5000 hours
High temperature and high humidity	Temperature: +85P ±2t, humidity 2=85%	2000 hours
Local low temperature cycle	Temperature range: -40P ~ +85Q, temperature change rate N 5t) /min Hot-keeping time: @-40,0, @85: 30min	1000 cycles
Temperature shock	Temperature range: -551~ +850 Hot-keeping time (@-550, @85*0): 30min, high temperature and low temperature conversion time w 5min	10 times
Mechanical shock test	Waveform: half sine wave, test direction: 6 directions (3 axes) Peak acceleration: 1500g, pulse duration: 6 ~ 8ms	5 times in each direction
Mechanical vibration test	Waveform: sine wave, test direction: horizontal and vertical Acceleration peak: 20g Frequency range: 20 ~ 2000Hz Duration: 4min/time	4 times in each direction
Air tightness check	Initial pressure: 0.2MPa, hydrogen tracer gas: 95% ~ 100% Pressure time: 2hrs	Leak rate w 1.0x lO^Pa ·m³/s
High and low temperature online test	Temperature range: -40 ~ +85P Insulation time (@-400, @257, @850): 5min	0.002dBTO

Ordering Information

MIM-W□□□□-XX-L□□

W□ □□□：wavelength

1310: 1310nm

1550:1550nm

□□：structure

12：1×2

22：2×2

XX: fiber and connector type

SN=SMF-28E Fiber + None

SA=SMF-28E Fiber + FC/APC

SP=SMF-28E Fiber + FC/PC

PP=PM Fiber Fiber + FC/PC

PA=PM Fiber Fiber + FC/APC

L□□:

1=1cm

10=10cm
