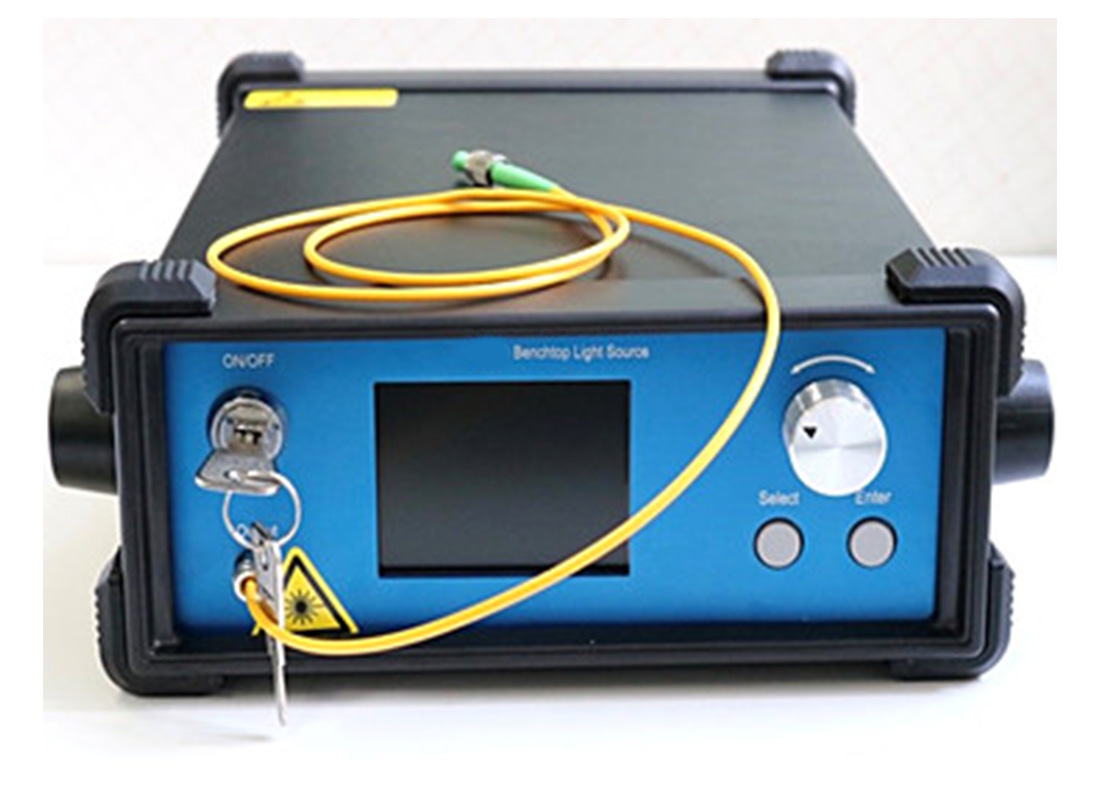

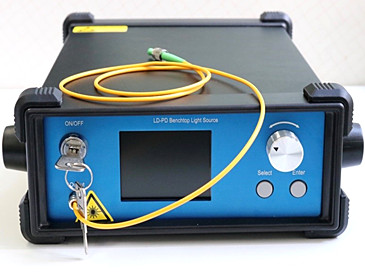

1480nm High-Power Benchtop Single-Mode Pump Source 600mW

Idealphotonics' 1480nm high-stability single-mode pump source uses a single-mode semiconductor laser with an FBG wavelength-stabilizing grating, offering wavelength stability and high output power. Based on an advanced microprocessor control system combined with high-precision ATC and ACC (APC) control circuits, it achieves highly stable laser output while ensuring quick and intuitive operation. We can also provide corresponding communication interfaces and control software based on user requirements for computer control. This light source features a Turn-Key pump laser protection function to effectively prevent user errors. It supports coarse power adjustment (50mW steps) and fine power adjustment (0.1mW steps). Idealphotonics' 1480nm single-mode pump source is a highly integrated desktop system light source equipped with a high-definition LCD display, continuously adjustable output power, and simultaneous display of current and voltage, making it ideal for experimental scientific research and production testing. The company can also provide modular packaging based on user needs for easy system integration.

Product features：Single-mode high-power output: up to 500mW、 FBG grating wavelength locking, no drift、 ASE optical isolation protection design、 Stable and continuously adjustable output power、 LCD status display、 High-precision ACC and ATC control circuits、 Optional built-in isolator

Application area：Pump laser、 Dense Wavelength Division Multiplexing (DWDM)、 Compact packaged EDFA、 High bit-rate, high-channel-count EDFA、 Cable television distribution

Unit Price

Please contact customer service for a discounted quote.

Part Number

LP-PUMP-1480-B-600

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Technical Specifications	Unit	Specs
Technical Specifications	Unit	Min.	Typ.	Max.
Operating Wavelength	nm	1479	1480	1481
Output Power	mW	0-500 continuously adjustable
Operating Current	mA			2100
Spectral Width (FWHM) with FBG	nm	-	3
Output Power Stability (15 minutes)	%		±0.5	±1.0
Output Power Stability (8 hours)	%		±1.0	±2.0
Output Power Adjustable Range	%	0		100
Output Power Adjustment Mode	%	Coarse/Fine adjustment
TEC Stability	℃		±0.1	±0.2
Operating Voltage	VAC	100	220	240
Operating Temperature	℃	0		50
Storage Temperature	℃	-40		85
Output Fiber Type and Connector		SMF28E, FC/APC, other models optional
Dimensions	mm	340(L) × 240(W) × 100(H) Benchtop

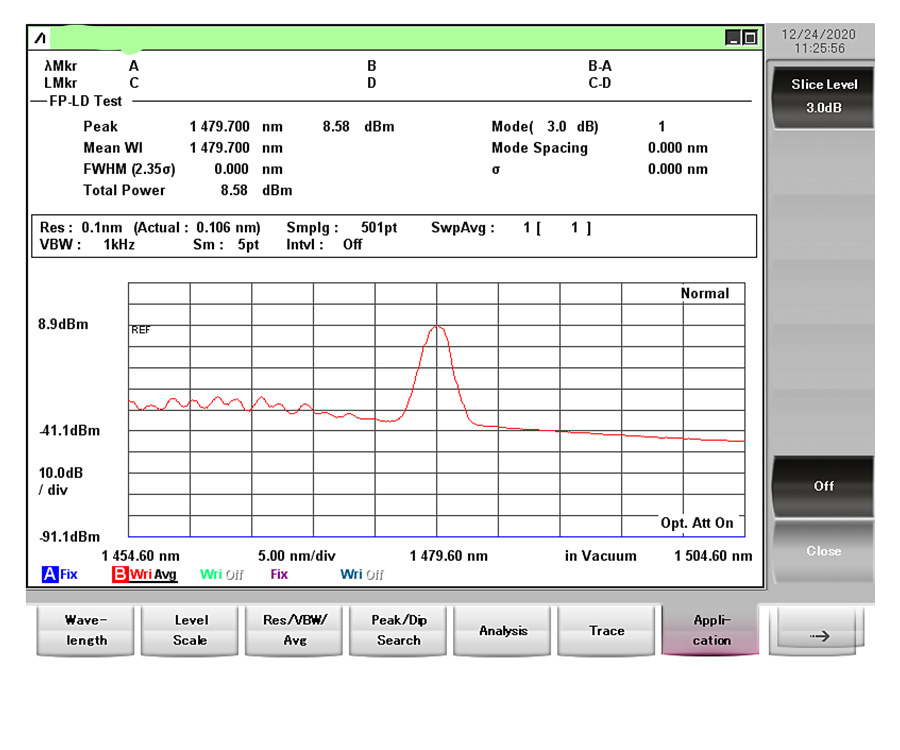

Spectrum

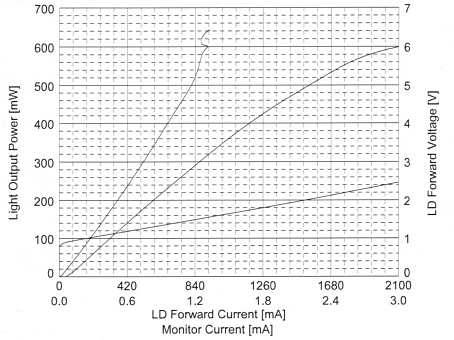

Power Curve

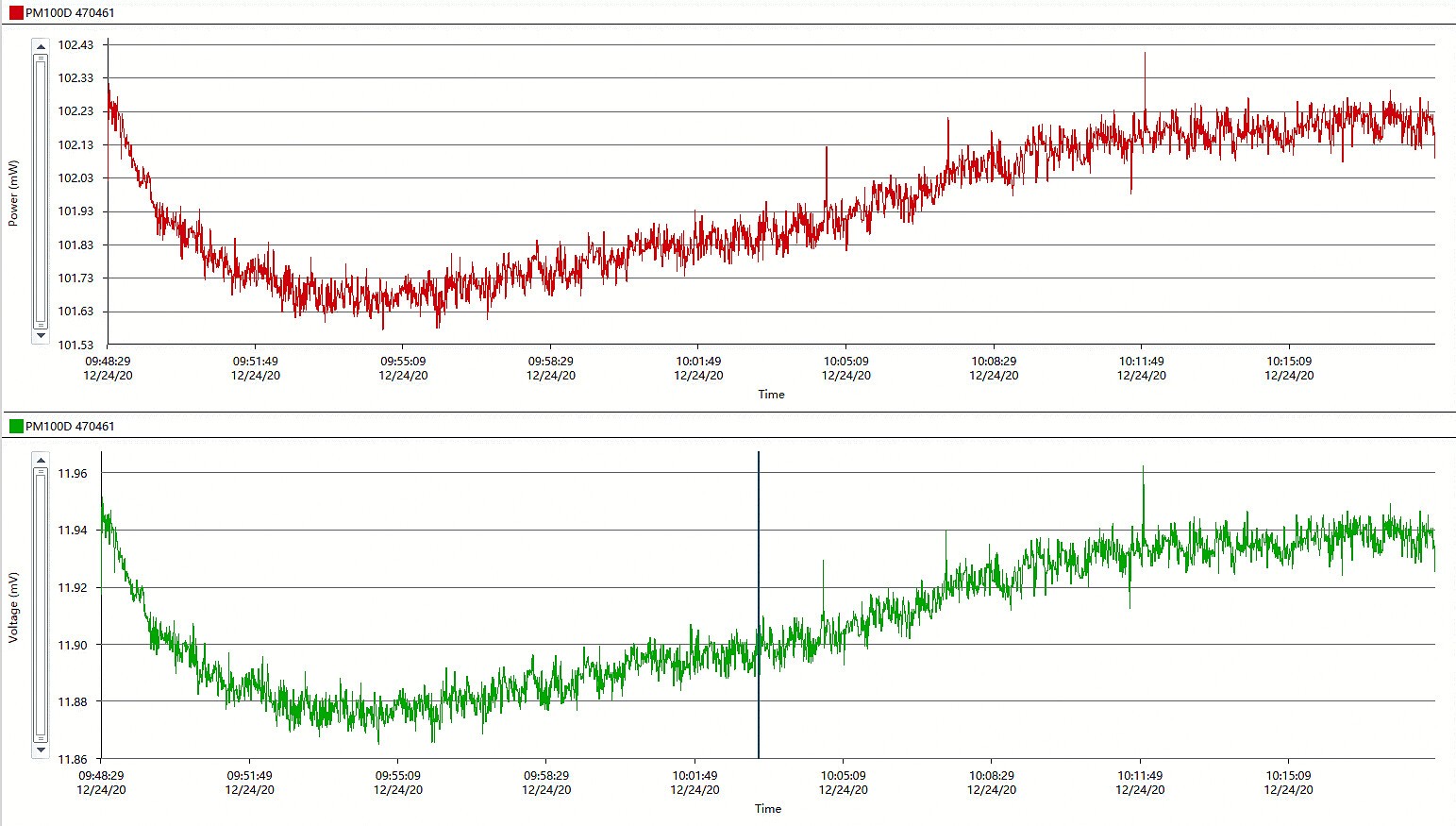

Power Stability Curve

Ordering info

LP-PUMP-1480-B-500
Operating Wavelength: 1480:1480nm
Packaging Type: B: Benchtop
Output Power: 500:500mW
