PM Optical Isolator (Single-Stage) 1064nm 0.3mW FC/APC
PM Optical Isolator (Single-Stage) 1064nm 0.3mW FC/APC
Idealphotonics offers a broad range of fiber optic isolators within the wavelength range of 780-1310nm. These isolators can be coupled with any single-mode fiber equipment purchased from the company (such as lasers, SLDs, SOAs, and gain modules). In this configuration, the device is characterized by the isolator, with measurement reports showing the performance of the OI output. The equipment can be spliced to prevent additional loss and feedback at the FC/APC connector. For fiber optic isolators within the 1060-1310nm wavelength range, the devices feature compact (55×5.5×5.5mm) lightweight packaging with a maximum input power of 300-500mW. In the shorter range (780-1055nm), another material is used that absorbs less optical power, and the OI is provided in a larger (up to 118x37x35mm) and heavier metal package. High-power OIs use the same material to achieve input powers of up to 1W.
Product features:High Isolation、 Low Insertion Loss、 Fast Axis Blocked
Application area:Light Source Isolation
Unit Price
Please contact customer service for a discounted quote.
Part Number
PMOI-1064-SS-11-BB
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing


Specifications

Parameter

Min

Typical

Max

Single/Double Stage


Single


Center Wavelength


1064


Peak Isolation

35

40


Insertion Loss


1.5

1.8

Return Loss (Input/Output)

55/55



Extinction Ratio

23



Optical Power (CW)



300

Maximum Tension Load



5

Operating Temperature

-5


50

Storage Temperature

-40


85





Parameter

Panda PM980 Fiber

Unit

Mode Field Diameter

6.6±1

μm

Cutoff Wavelength

920±50

nm

Cladding Diameter

125±1

μm

Coating Diameter

245±15

μm

Core-to-Cladding Offset

≤0.5

μm

Length (per port)

1.0 ± 0.2

m

Connector

FC/APC


Connector Alignment with Panda Fiber:






Model Explanations:

PMOI-1064-SS-①①-②②

①Connector Type on Port 1 & 2: 1 - FC/APC, N - none

②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber Example: PMOI-1064-SS-N1-BB



General Parameters:

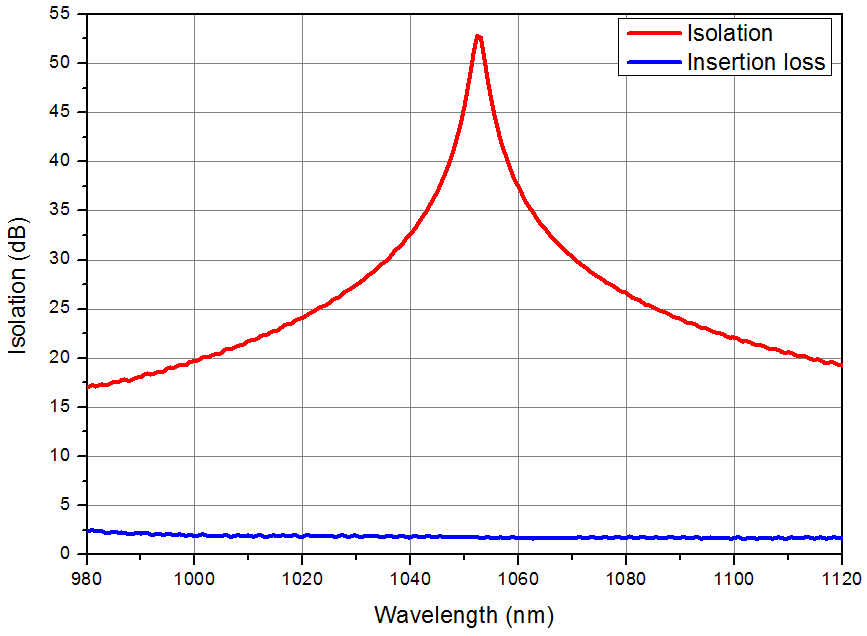

Typical parameters of fiber optic isolators

 * @Max10mW Reverse optical power。

model

Single/Bipolar

Stage

wavelength

Peak isolation*

insertion loss

Return Loss

extinction ratio

Input optical power(CW)

(Direct optical power)

Fiber type

Package Size(LWH)

nm

dB

dB

dB

dB

W

mm

PMOI-780-SS

single

780

30

1

50

20

0.3

PM780

91x27x28

PMOI-808-SS

single

808

30

1

50

20

0.3

PM780

91x27x28

PMOI-850-SS

single

850

35

1

50

20

0.3

PM850

91x27x28

PMOI-980-SS

single

980

35

1

50

20

0.3

PM980

91x27x28

PMOI-1025-SS-HP

single

1025

30

1.2

50

20

1

PM980

118x37x35

HIOI-1025-SS-HP

single

1025

30

1.2

50


1

HI1060

118x37x35

PMOI-1030-SS-HP

single

1030

26

1

50

20

1

PM980

118x37x35

HIOI-1030-SS-HP

single

1030

26

1

50


1

HI1060

118x37x35

PMOI-1030-SS

single

1030

22

4.7

55

23

0.08

PM980

55×5.5×5.5

HIOI-1030-SS

single

1030

22

4

55


0.08

HI1060

55×5.5×5.5

PMOI-1040-SS-HP

single

1040

35

1

50

20

1

PM980

118x37x35

HIOI-1040-SS-HP

single

1040

35

1

50


1

HI1060

118x37x35

PMOI-1040-SS

single

1040

30

4.2

55

23

0.1

PM980

55×5.5×5.5

HIOI-1040-SS

single

1040

30

4.2

55

23

0.1

PM980

55×5.5×5.5

PMOI-1050-SS-HP

single

1050

50

2.5

50

20

1

PM980

118x37x35

PMOI-1050-SS

single

1050

40

2.9

55

23

0.15

PM980

55×5.5×5.5

PMOI-1055-SS-HP

single

1055

35

1

50

20

1

PM980

118x37x35

HIOI-1055-SS-HP

single

1055

35

1

50


1

HI1060

118x37x35

PMOI-1055-SS

single

1055

40

2.6

55

23

0.2

PM980

55×5.5×5.5

HIOI-1055-SS

single

1055

40

2.6

55


0.2

HI1060

55×5.5×5.5

HIOI-1064-SS-HP

single

1064

26

1

55


1-5

HI1060

35x5x5

PMOI-1064-SS

single

1064

40

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1064-SS

single

1064

40

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1064-DS

double

1064

55

3.2

55

20

0.3

PM980

55×5.5×5.5

PMOI-1085-SS-HP

single

1085

35

1

50

20

1

PM980

118x37x35

HIOI-1085-SS-HP

single

1085

35

1

50


1

HI1060

118x37x35

PMOI-1085-SS

single

1085

30

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1085-SS

single

1085

30

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1095-SS-HP

single

1095

30

1

50

20

1

PM980

118x37x35

HIOI-1095-SS-HP

single

1095

30

1

50


1

HI1060

118x37x35

PMOI-1095-SS

single

1085

28

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1095-SS

single

1085

28

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1120-SS

single

1120

30

1.7

50

21

0.3

PM980

55×5.5×5.5

PMOI-1120-DS

double

1120

40

2.8

50

21

0.3

PM980

55×5.5×5.5

PMOI-1150-SS

single

1150

20

2

55

20

0.3

PM980

55×5.5×5.5

PMOI-1150-DS

double

1150

30

2.8

55

20

0.3

PM980

55×5.5×5.5

PMOI-1178-DS

double

1178

25

2

50

20

0.35

PM980

55×5.5×5.5

PMOI-1188-DS

double

1188

20

2.1

50

20

0.35

PM980

55×5.5×5.5

PMOI-1250-DS

double

1250

30

1.2

55

23

0.4

PM980

55×5.5×5.5

PMOI-1310-DS

double

1310

58

0.6

55

23

0.5

PM1300

55×5.5×5.5
