Dual Channel Fiber Optic Array

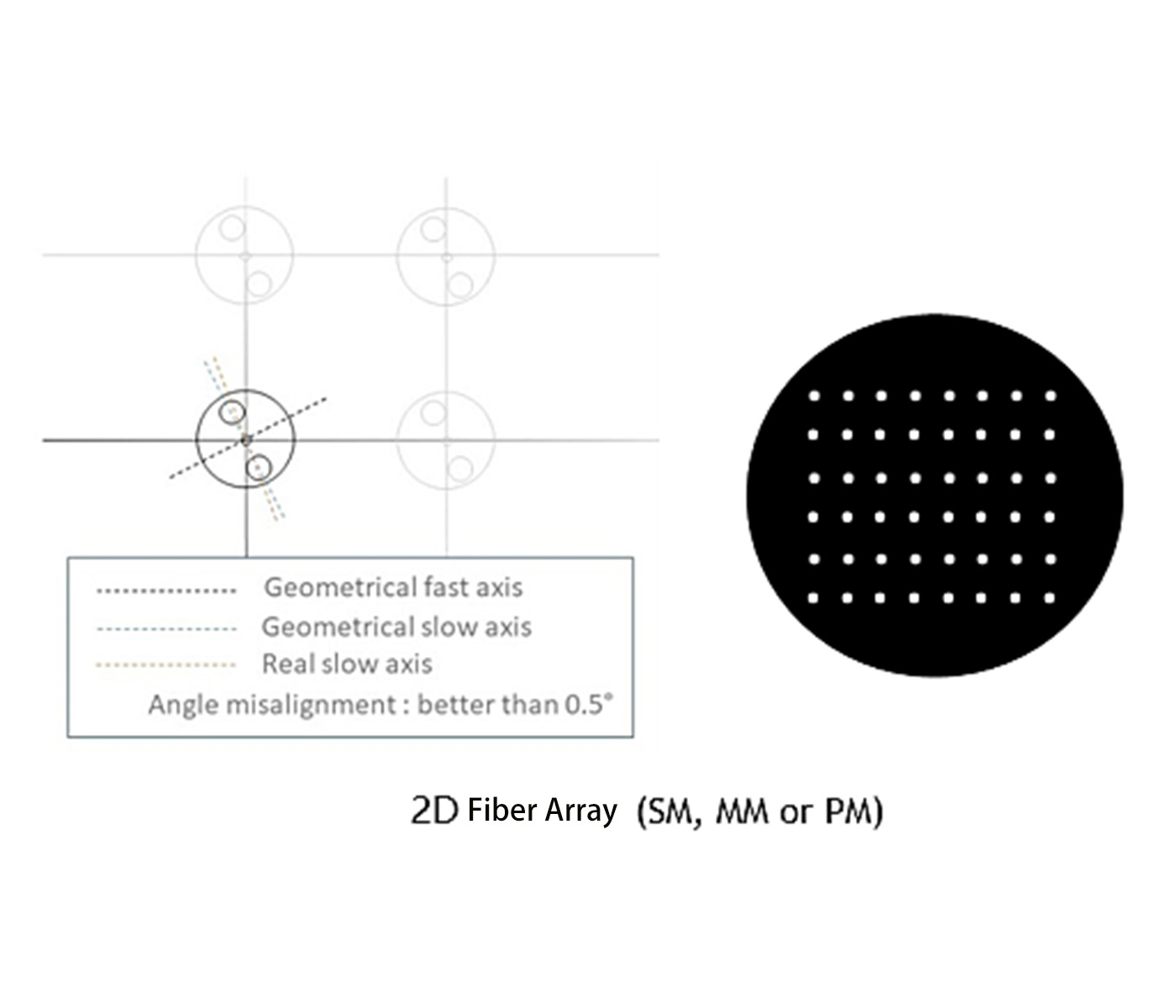

Idealphotonics provides custom fiber arrays with different fiber types. The fiber types we currently supply include single-mode, multi-mode, and polarization maintaining. At the same time, we can also customize fiber arrays with different fiber lengths. Thanks to many years of processing experience, we can currently provide high-precision fiber grinding and alignment, and we can also glue the fibers together for grinding and polishing. Our high-precision alignment equipment can achieve a polarization-maintaining fiber alignment with an angle deviation better than 0.5deg, and our end-face observer can ensure that the end-face grinding quality meets special application areas, such as interferometers. In addition, our processing accuracy can reach a spacing as small as 5μm. At the same time, we also customize different connectors for different application requirements of customers. Welcome to contact us for processing and customized fiber arrays.

Product features：Support fiber types SM, MM, PM Fibers、 Any fiber length and spacing、 High precision and high reliability、 Low PDL Low insertion loss、 Compact structure

Application area：Fiber Optic Sensors、 Optical Switch、 Interferometer、 Splitter / Combiner、 Integrated Devices、 Waveguide Coupled Devices、 Multiplexer / Demultiplexer

Unit Price

Please contact customer service for a discounted quote.

Part Number

FA-2-PA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Array size	Custom Made
Fiber length	From a few centimeters to hundreds of meters
Fiber Type	SMF, MMF, PMF or custom
Fiber spacing	Customized according to customer needs
Array position accuracy	+/- 1 um (X and Y axis)
Grinding Angle	0°+/-0.5°,8°+/-0.5°, custom
Fiber Optic Connector Type	FC, LC, SC, SMA, ST, MU, E2000, other

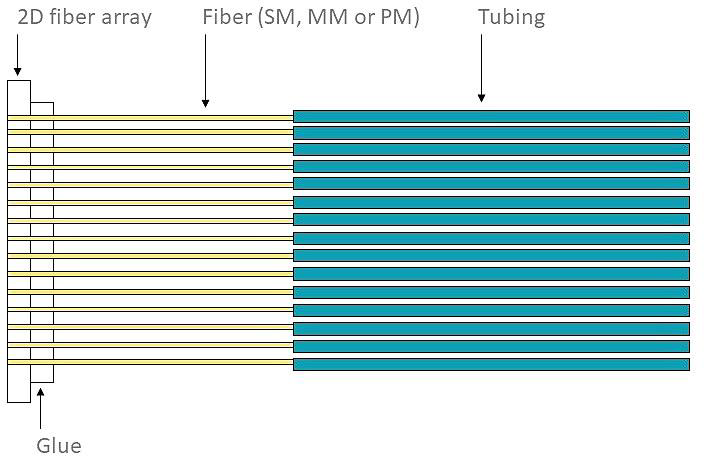

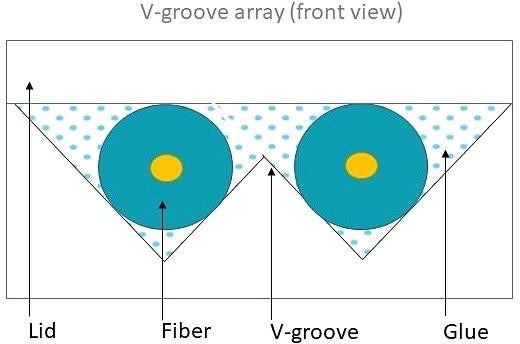

Fiber arrays are key components for connecting optical fibers to their waveguides for different applications. Idealphotonics provides unique assembly/cutting/polishing processes to obtain fiber core position accuracy with optimal polishing surface.


2D Fiber V- Groove Array

Model and ordering

FAC - A□-G□□□-S○-Material▽-☆-△- XX

A□：Polished Angle

0:0°

8:8°

G □□□: Optical fiber spacing

1:1mm 2:2mm

S○：Fiber Array Structure

12:1x2

22:2x2

65:6x5

56:5x6

Material▽：
Q: Quartz
S: SiO 2

R: Semicircular tube
F: Square tube

☆ ：Pigtail Length

05:0.5m

1:1m

10:10m

△：Loose Tube
B: Bare Fiber
9:900um Loose Tube
20:2mm Loose Tube
30: 2mm Loose Tube

XX: Fiber and Connector Type SA=SMF-28E+ FC/APC
SP=SMF-28E+ FC/PC

PA=PM Fiber+ FC/APC

PP=PM Fiber+ FC/PC
