PM Optical Isolator (Single-Stage) 780nm 500mW FC/APC
PM Optical Isolator (Single-Stage) 780nm 500mW FC/APC
Innolume offers a broad portfolio of fiber isolators in the 780-1310nm wavelength range. These isolators can be provided with any single-mode fiber-coupled device (laser, SLD, SOA, gain module) purchased from our company. In such cases, the device is characterized with the isolator, and the measurement report reflects the performance at the OI output. The equipment can be spliced to avoid additional loss and feedback at the FC/APC connector. For the 1060-1310nm wavelength range, the fiber isolator features a compact (55×5.5×5.5mm) lightweight package with a maximum input power of 300-500mW. In the shorter range (780-1055nm), due to the use of a different material with lower optical power absorption, the OI is offered in a significantly larger (up to 118×37×35mm) and heavier metal package. The same material is used in high-power OIs to achieve input powers of up to 1W.
Product features:High isolation、 Low insertion loss、 Fast axis blocked
Application area:Light source isolation
Unit Price
Please contact customer service for a discounted quote.
Part Number
PMOI-780-SS-11-BB
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Parameters

Specs

Parameters

Min

Typ.

Max

Unit

Single/Dual Stage


Single



Center Wavelength


780


nm

Peak Isolation

25

35


dB

Insertion Loss


0.5

1.3

dB

Return Loss (Input/Output)

45/45

50/50


dB

Extinction Ratio

20



dB

Optical Power (CW)



500

mW

Maximum Tensile Load



5

N

Operating Temperature

-5


50

°C

Storage Temperature

-40


75

°C





Parameters

Panda PM850

Unit

Mode Field Diameter

5.5±0.5

μm

Cutoff Wavelength

650-800

nm

Cladding Diameter

125±1

μm

Coating Diameter

245±15

μm

Core-to-Cladding Offset

≤0.5

μm

Length (per port)

1.0 ± 0.2

m

Connector Type

FC/APC


Connector aligned with panda fiber:








Ordering info

PMOI-780-SS-①①-②②

①Connector Type on Port 1 & 2: 1 - FC/APC, N - none

②Fiber Jacket on Port 1 & 2: B - 250um Panda Fiber, L - 900um Loose Tube Panda Fiber Example: PMOI-780-SS-N1-BB





General Parameters

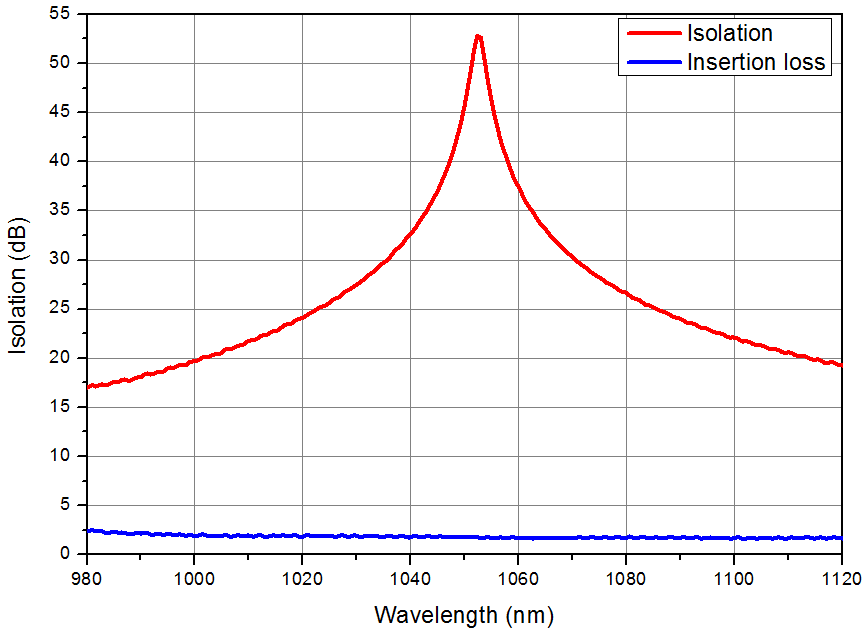

Typical parameters of fiber optic isolators

 * @Max10mW Reverse optical power。

model

Single/Bipolar

Stage

wavelength

Peak isolation*

insertion loss

Return Loss

extinction ratio

Input optical power(CW)

(Direct optical power)

Fiber type

Package Size(LWH)

nm

dB

dB

dB

dB

W

mm

PMOI-780-SS

single

780

30

1

50

20

0.3

PM780

91x27x28

PMOI-808-SS

single

808

30

1

50

20

0.3

PM780

91x27x28

PMOI-850-SS

single

850

35

1

50

20

0.3

PM850

91x27x28

PMOI-980-SS

single

980

35

1

50

20

0.3

PM980

91x27x28

PMOI-1025-SS-HP

single

1025

30

1.2

50

20

1

PM980

118x37x35

HIOI-1025-SS-HP

single

1025

30

1.2

50


1

HI1060

118x37x35

PMOI-1030-SS-HP

single

1030

26

1

50

20

1

PM980

118x37x35

HIOI-1030-SS-HP

single

1030

26

1

50


1

HI1060

118x37x35

PMOI-1030-SS

single

1030

22

4.7

55

23

0.08

PM980

55×5.5×5.5

HIOI-1030-SS

single

1030

22

4

55


0.08

HI1060

55×5.5×5.5

PMOI-1040-SS-HP

single

1040

35

1

50

20

1

PM980

118x37x35

HIOI-1040-SS-HP

single

1040

35

1

50


1

HI1060

118x37x35

PMOI-1040-SS

single

1040

30

4.2

55

23

0.1

PM980

55×5.5×5.5

HIOI-1040-SS

single

1040

30

4.2

55

23

0.1

PM980

55×5.5×5.5

PMOI-1050-SS-HP

single

1050

50

2.5

50

20

1

PM980

118x37x35

PMOI-1050-SS

single

1050

40

2.9

55

23

0.15

PM980

55×5.5×5.5

PMOI-1055-SS-HP

single

1055

35

1

50

20

1

PM980

118x37x35

HIOI-1055-SS-HP

single

1055

35

1

50


1

HI1060

118x37x35

PMOI-1055-SS

single

1055

40

2.6

55

23

0.2

PM980

55×5.5×5.5

HIOI-1055-SS

single

1055

40

2.6

55


0.2

HI1060

55×5.5×5.5

HIOI-1064-SS-HP

single

1064

26

1

55


1-5

HI1060

35x5x5

PMOI-1064-SS

single

1064

40

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1064-SS

single

1064

40

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1064-DS

double

1064

55

3.2

55

20

0.3

PM980

55×5.5×5.5

PMOI-1085-SS-HP

single

1085

35

1

50

20

1

PM980

118x37x35

HIOI-1085-SS-HP

single

1085

35

1

50


1

HI1060

118x37x35

PMOI-1085-SS

single

1085

30

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1085-SS

single

1085

30

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1095-SS-HP

single

1095

30

1

50

20

1

PM980

118x37x35

HIOI-1095-SS-HP

single

1095

30

1

50


1

HI1060

118x37x35

PMOI-1095-SS

single

1085

28

1.8

55

23

0.3

PM980

55×5.5×5.5

HIOI-1095-SS

single

1085

28

1.8

55


0.3

HI1060

55×5.5×5.5

PMOI-1120-SS

single

1120

30

1.7

50

21

0.3

PM980

55×5.5×5.5

PMOI-1120-DS

double

1120

40

2.8

50

21

0.3

PM980

55×5.5×5.5

PMOI-1150-SS

single

1150

20

2

55

20

0.3

PM980

55×5.5×5.5

PMOI-1150-DS

double

1150

30

2.8

55

20

0.3

PM980

55×5.5×5.5

PMOI-1178-DS

double

1178

25

2

50

20

0.35

PM980

55×5.5×5.5

PMOI-1188-DS

double

1188

20

2.1

50

20

0.35

PM980

55×5.5×5.5

PMOI-1250-DS

double

1250

30

1.2

55

23

0.4

PM980

55×5.5×5.5

PMOI-1310-DS

double

1310

58

0.6

55

23

0.5

PM1300

55×5.5×5.5
