1550nm narrow linewidth frequency stabilized laser module 2kHz-5kHz single mode

Idealphotonics narrow linewidth semiconductor laser module has the characteristics of ultra-low RIN noise and ultra-narrow linewidth, and is currently widely used in automotive lidar and fiber optic sensor detection systems.

Product features：Linewidth: 2kHz -5kHz、 Optical power: 16dBm、 RIN noise: -165dBc/Hz @100kHz

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

LD-PD-1550-2-16-SM-FC/APC

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Specifications

Parameter	Min.	Typical	Max.	Unit	Notes
wavelength	1530	1550	1570	Nm	Customizable
Operating temperature	-10		70	℃
Output power		16	17	dBm	Customizable
RIN noise		-165	-163	dBc/Hz @100kHz
RIN noise		-165	-163	dBc/Hz @100kHz
Operating current		400	2000	mA
Operating voltage	4.75	5	5.25	V
Lorentz linewidth ¹		2	5	KHz	Customizable
Side Mode Suppression Ratio		50		dB
Output method	Optical fiber output（default）
Connector type	FC/APC（default）
Fiber type	SM/PM

Note: The line width test solution is a delayed self-heterodyne beat frequency test

Laboratory test data 20220523

Specifications

Parameter	Unit	Min.	Typical	Max.	Test Value
Output Power	mW		10		66.6
Power Stability	%	Refer to the table below
Center Wavelength (ITU-T DWDM)	nm	1530		1565	1550.218
LD Current	mA			350	281
Linewidth	kHz	A:<3			2.4
Relative Intensity Noise	dBc/Hz
SMSR	dB	50			70.95
Polarization Extinction Ratio	dB	20
Input Current	A			3	0.51
Voltage	V	4.75	5	5.25
Fiber Type and Connector	NA	PM1550 FC/APC
Test Tem	℃		25
Dimensions	mm	100 ×57 × 12

The module comes with software on a USB stick

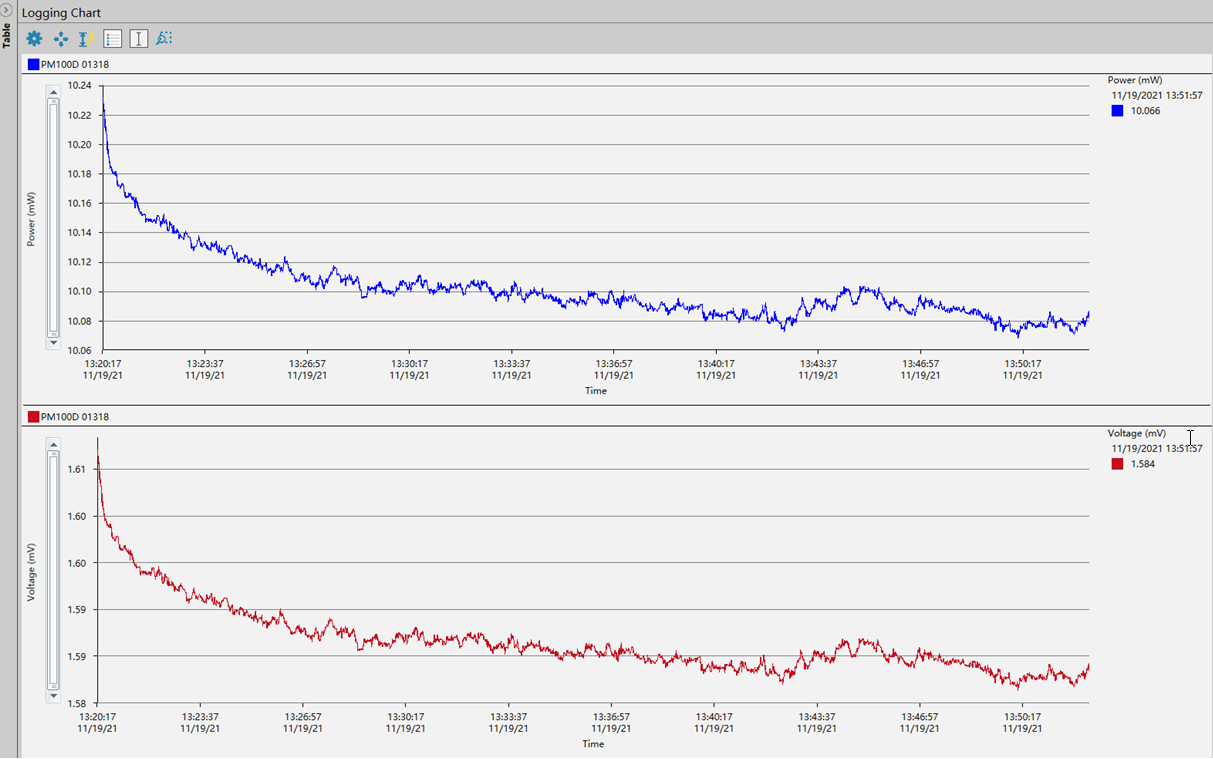

Power stability

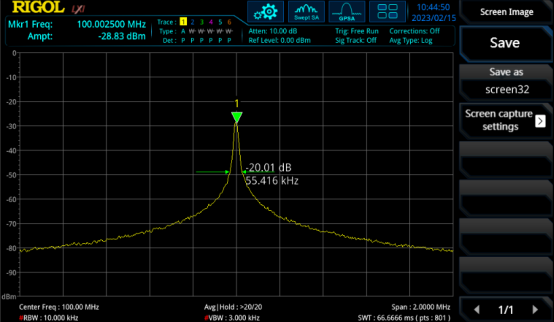

Line width characteristics

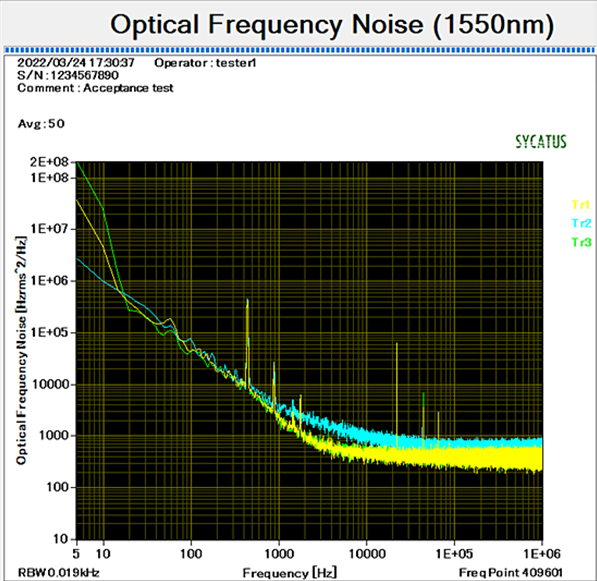

Optical frequency comparison test

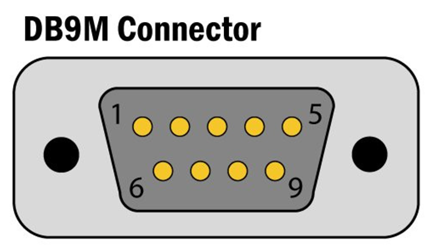

Interface Definition

Remarks: 7 and 8 pin can only use positive level (Note: 7 and 8 pins can only use positive level)

PIN#	NAME	Function and Note
5	Vcc	4.75Min, 5.25V Max, 3A, Low noise
4	Tx(output)	Data output, RS232/3.3 to5V TTL232 (Default)
3	Rx(input)	Data input, RS232/3.3 to5V TTL232(Default)
2	/	Amplitude modulation(customer)
1	Gnd	Gnd
9	Ready (output)	Ready output, Active low, needs external pull up Ready output, low level is valid, requires external pull-up
8	Mod +(input)	Modulation input +
7	Mod-(input)	Modulation input -
6	Enable(input)	Active low (Default)

Ordering information
PHX- C-F-M-C32 -

①② - ③ - ④----------- 0-0

Power ：Unit dBm

coding linewidth coding connector type

2 100KHz 0 SMF/FC-APC

4 20KHz 1 PM/FC-APC

6 5KHz

8 1KHz
