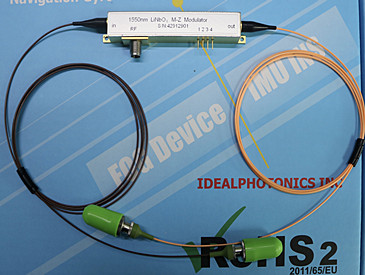

Parameter
Condition | Unit | Min. | Typical | Max. |
PN# | LIM-1550-3G-PM-FA | |||
Half-wave voltage DC electrode | V | 6.5 | 7.0 | |
Electro-optical bandwidth S21@-3dB | GHz | 3 | ||
RF half-wave voltage@DC | V |
3.5 | 4.0 | |
Bias half-wave voltage | V | 5.0 | ||
Jitter | dB | 0.5 | 1 | |
Electrical return loss S110-20GHz | dB | -12 | -10 | |
RF connector input resistance | Ω | 40 | ||
Input impedance DC connector | Ω | >1M | ||
Crystal: Lithium Niobate | . | X-cut Y-propagation | ||
Waveguide process | APE Process | |||
Insertion loss | dB | 3.0 | 4.0 | |
Optical return loss | dB | <-45 | ||
Wavelength dependent loss (1480-1600nm) | dB | 0.5 | 1.0 | |
DC extinction ratio | dB | 20 | 22 | |
Input fiber | Panda polarization-maintaining fiber 1.5 meters long, 900um | |||
Output fiber | SMF-28 single-mode fiber 1.5 meters long, 900um (PMF optional) | |||
Input RF connector | SMA | |||
DC connector | Pin feed-through diameter: 1.0mm | |||
Package size | mm | 110 x12.5 x9.0 | ||
Operating temperature | ℃ | 0~ +70 | ||
Storage temperature | ℃ | -40 ~ +85 | ||
DC input maximum voltage | V | ±20 | ||
Maximum RF input power | dBm | +28 | ||
Maximum input optical power | mW | 200 (APE process) |
Note: 1310nm、1064nm、850nm can optional

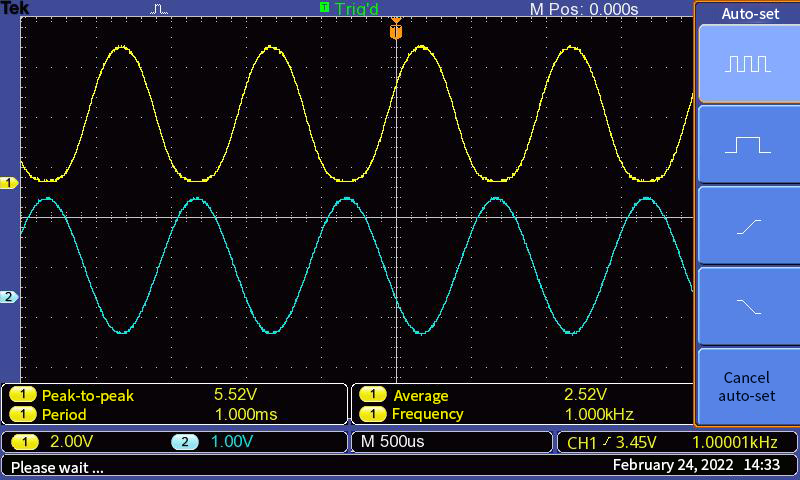

Performance Display

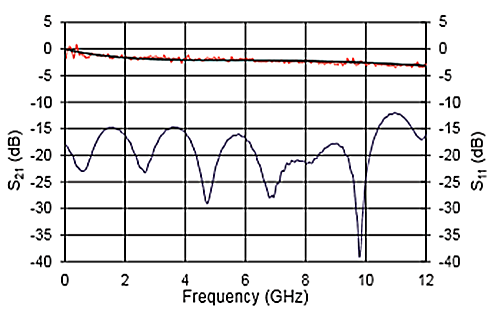

S21 and S11 curve

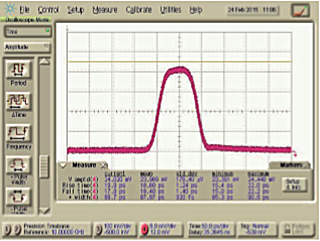

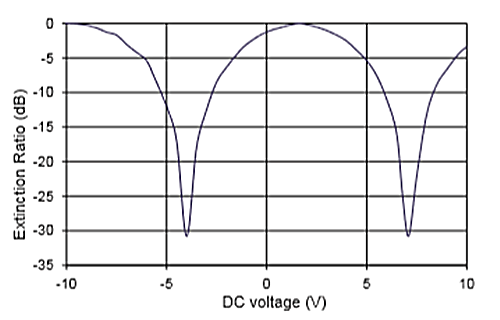

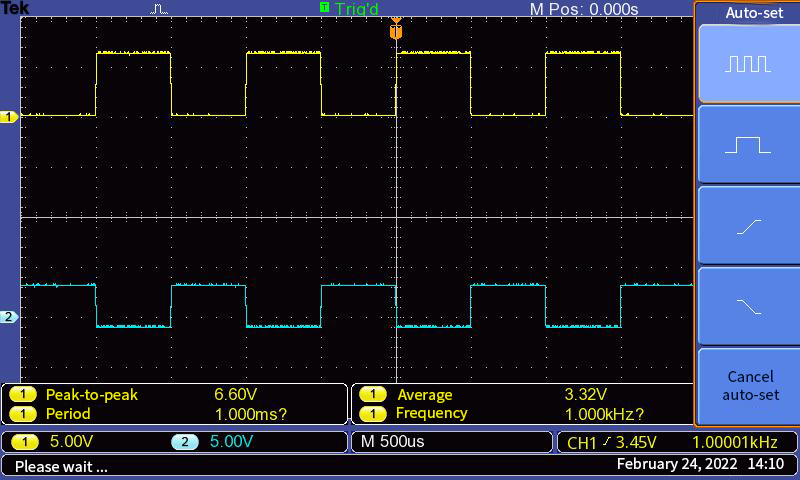

Pulse extinction ratio
100ps square wave pulse generation
Ordering Information
LIM-W -BW -XX -Y -Z-AB-CD
W wavelength:
0850: 850nm
1064: 1064nm
1550: 1550nm
BW: Electro-optical bandwidth
3G stands for >03GHz
10G stands for >10GHz
Y: Input fiber
P: stands for polarization-maintaining fiber
S: stands for single-mode fiber
Z: Output fiber
P: stands for polarization-maintaining fiber
S stands for single-mode fiber
AB: Input fiber connector
00 stands for bare fiber
FA stands for FC/ APC
FC stands for FC/ SPC
CD: Output fiber connector
00 stands for bare fiber
FA stands for FC/ APC
FC stands for FC/ SPC
