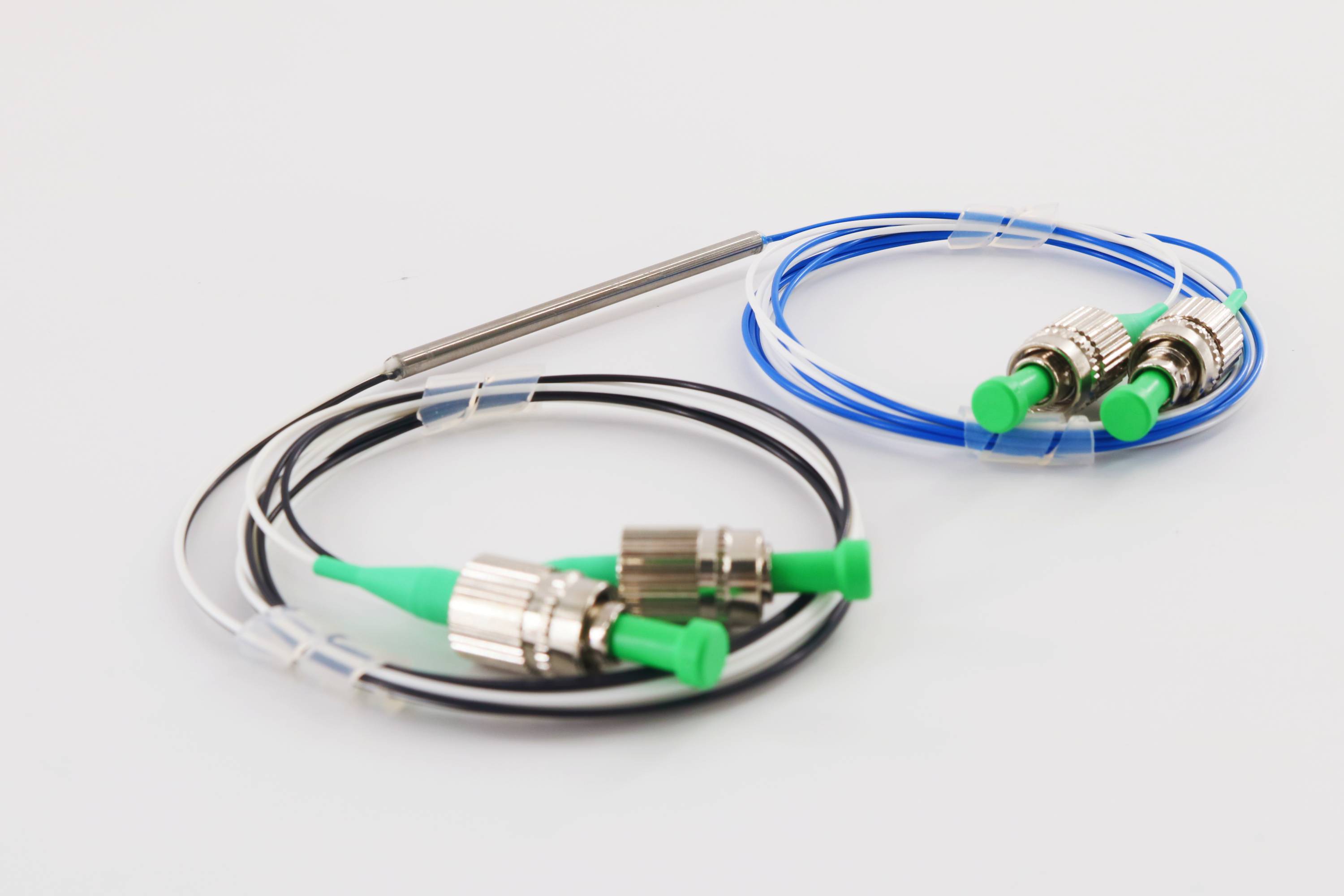

50:50 488nm 2x2 Polarization-Maintaining Fiber Coupler

IThe RGB-PMFBC-W0488 RGB series polarization-maintaining fiber coupler is a high-performance coupler designed for visible light wavelength splitting, manufactured using our IPCS-5000-P polarization-maintaining fiber fusion tapering machine. It offers excellent performance and can cover the entire wavelength range (460-2200nm). The polarization-maintaining coupler is made with panda-type Fujikura polarization-maintaining fiber, enabling it to maintain a high polarization extinction ratio (PER) when light is emitted along the slow axis of the fiber. Xiaoxiao Photonics' optical polarization-maintaining components are aligned to the slow axis by default, and our polarization-maintaining couplers feature a high extinction ratio and can operate over a wide temperature range from -40°C to 85°C.

Product features：Fused fiber coupler for 460-2200nm、 Coupling ratios of 50:50, 75:25, 90:10, or 99:1、 Bidirectional coupling (any end can be used as input)、 2.0 mm narrow key FC/PC or FC/APC connectors、 Each broadband coupler comes with its own test report

Application area：Polarization-maintaining fiber amplifiers、 Fiber optic gyroscopes、 Optical sensors

Unit Price

Please contact customer service for a discounted quote.

Part Number

RGB-PMFBC-W0488-S2-CR5050-1-9-PA-35T

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Structure		Unit	1×2/2×2
Type			Polarization-Maintaining Fiber optic
			Coupler(PMFBC)
Operating Wavelength		nm	488 /632/633
Operating Bandwidth		nm	±15
50/50		%	4 .0 /4 .0
30/70		%	5 .75/2 . 10
10/90		%	1 1 .60/1 .00
Maximum Insertion Loss	5 /95	%	14 .80/0 .80
	2 /98	%	18 .50/0 .45
	1 /99	%	22 .00/0 .40
Extinction Ratio		dB	CR>5% 5 % ≥CR>1%		≥18 .00 ≥15 .00
Return Loss		dB	≥50 .00
Directivity		dB	≥55 .00
Operating Temperature		Deg .	-5-75
Storage Temperature		Deg .	-40-85
Fiber Length		m	1 .00 ±0 . 10
Fiber Type			Panda PM Fiber
Fiber Diameter		um	250	900		900/2000/3000
Package Dimensions		mm	3×54	3×70		90×16×10

Notes:

All test results exclude connectors; adding connectors increases insertion loss by 0.3 dB.

Better parameters or other requirements can be customized.

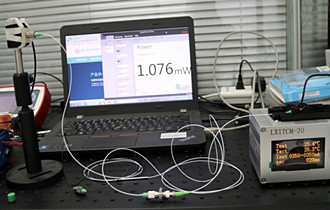

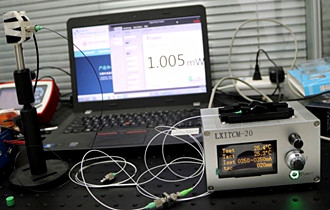

Single-Point Data Test: 1x2, 50:50, 488nm Polarization-Maintaining Fiber Coupler
(Tested with an FP laser, center wavelength 488nm, spectral width: 30nm, 2.5 mW polarization-maintaining laser as an example)

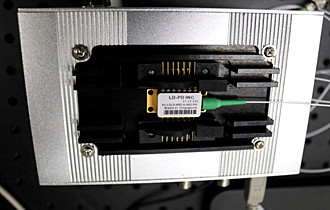

488nm PM FP Laser diode

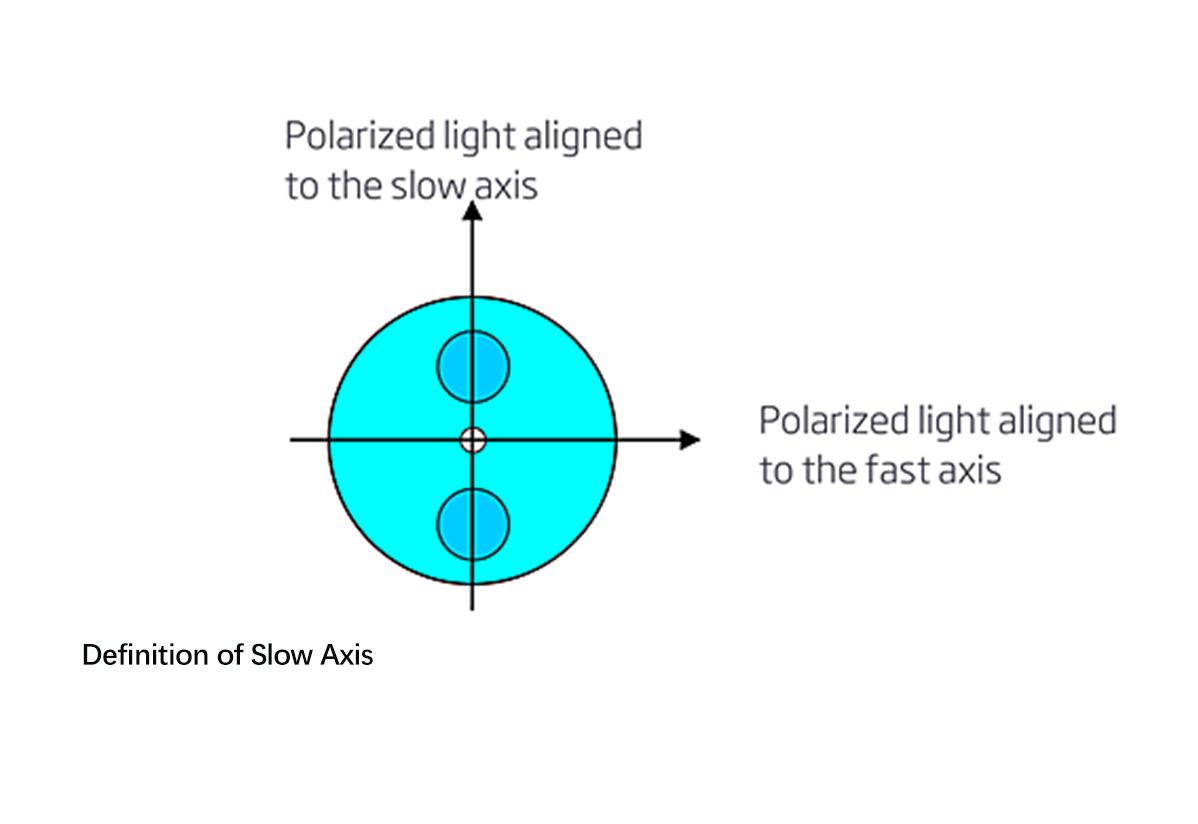

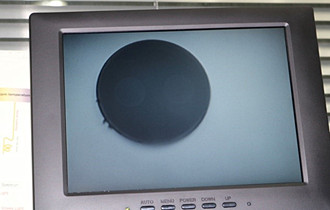

Slow Axis Alignment

RGB-PMFBC-W0488-S1-CR5050-1-9-PA-35T Black port @0488nm

RGB-PMFBC-W0488-S1-CR5050-1-9-PA-35T White port @0488nm

Ordering info

RGB-PMFBC-W□□□□-S○-CR▽-☆-△-XX-□□
W□□□□: Wavelength
0488: 0488nm
1392: 1392nm
1512: 1512nm
1532: 1532nm

1550: 1550nm
1650: 1650nm
1742: 1742nm

S○: Port Structure
12: 1x2
22: 2x2

CR▽:
0199: 1:99
1090: 10:90
2575: 25:75
5050: 50:50

☆: Pigtail Length
05: 0.5m
1: 1m
10: 10m

△: Loose Tube
B: Bare Fiber
9: 900µm Loose Tube
20: 2mm Loose Tube
30: 2mm Loose Tube

XX: Fiber and Connector Type
PA = PM Fiber + FC/APC
PP = PM Fiber + FC/PC

□□: Package
35T: Tube 3×35
70T: Tube 3×70
M: Module 90×16×10
