4.43µm High-Power Desktop DFB-QCL Mid-Infrared Quantum Cascade Laser 100mW (TDLAS Integrated Control Module)

QCL5184DFB-5. 18um High-Power Desktop DFB-QCL Mid-Infrared Quantum Cascade Laser is a mid-infrared testing laser developed by Idealphotonics in the first half of 2019. The low-loss atmospheric window is beneficial for space optical communication testing research. Our desktop light source has high output power and does not require ITAR review, making it the preferred choice for commercial mid-infrared testing light sources. With a tunable range exceeding 100nm and an output power greater than 100mW, it meets the industrial testing needs of our customers. The laser features built-in ZnSe collimated output, ensuring stable output power with extremely high temperature and wavelength stability, surpassing the stability of traditional high-power quantum cascade lasers by several orders of magnitude.

Product features：High Power、 Compact Structure、 Software Intelligent Control、 Built-in FPGA

Application area：Mid-Infrared Test Sources、 Mid-Infrared Device Analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

TDLAS-MIR-QCL-W4430-1-DFB-0100

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters	Min.	Typ.	Max.	Unit
Model	QCL4430DFB
Output Power 1	20	-	100	mW
Peak Operating Wavelength 2	4.33	4.43	4.445	um
Spectral Width (FWHM)	-	3	-	MHZ
Side Mode Suppression Ratio (SMSR)	30	-	-	dB
M2 Factor	＜1.2
Output Divergence Angle	＜2			Mrad
Full Beam Waist Diameter 5	＜4			mm
Output Isolation 3	-	30	-	dB
Wavelength Temperature Coefficient	1.00			nm/K
Wavelength Current Coefficient	57.1			nm/A
Output Power Stability (15 min) 4	-	±0.5	±1.0	%
Output Power Stability (8 hours) 4	-	±1.0	±2.0	%
Output Power Adjustable Range	0	-	100	%
Output Power Adjustment Mode	Software Control
TEC Stability	-	±0.1	±0.2	℃
TEC Operating Range	0	30	50	℃
Operating Voltage	100	220	240	VAC
Power Consumption 5	-	-	5	W
Operating Temperature	0	-	90	℃
Storage Temperature	-40	-	85	℃
Dimensions	343(L)×193(W)×180(H)		Benchtop	mm

Explanation of Technical Specifications:

Output power is optional.

The peak operating wavelength can be specified.

The output power stability test condition is 25°C, after 30 minutes of power-on warm-up.

Maximum power consumption refers to the overall power consumption under extreme operating conditions.

I = 0.80 A, V = 8.7 V, T = 15°C, Measured at 1/e².

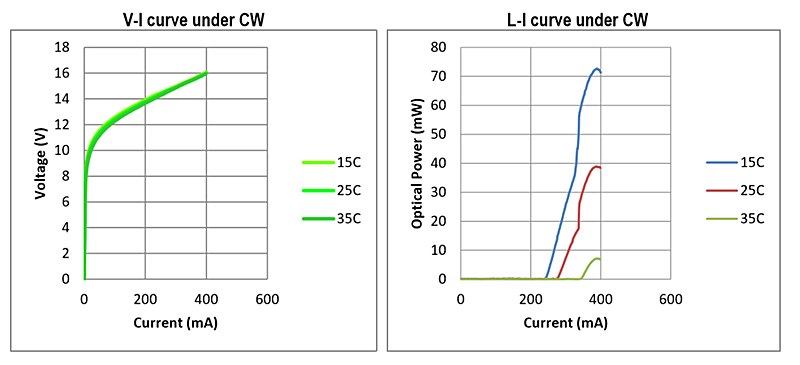

QCL laser characteristic curve (4.43um typical wavelength as an example) output power characteristic curve:

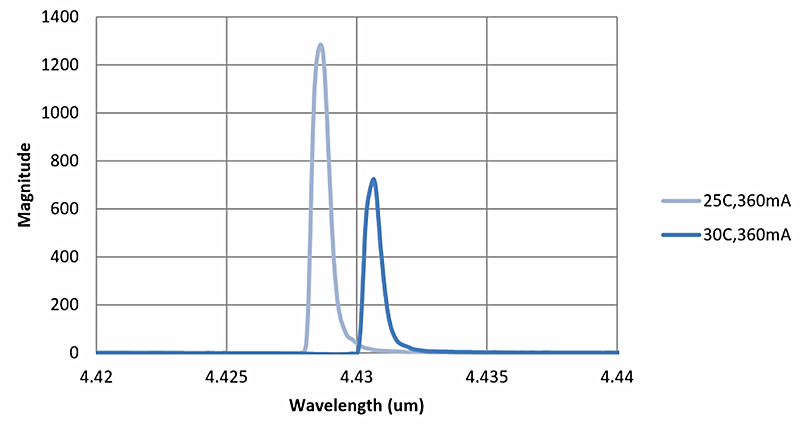

Laser spectrum (continuous) laser working at 10℃:

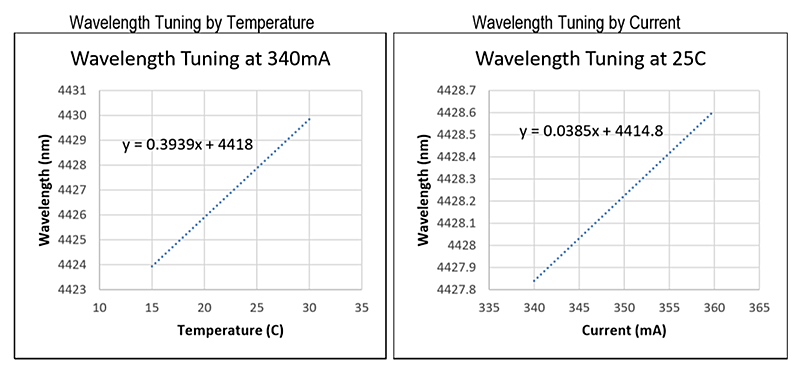

Wavelength temperature current tuning characteristics

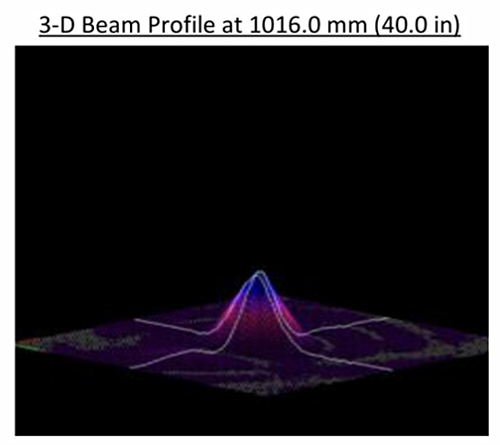

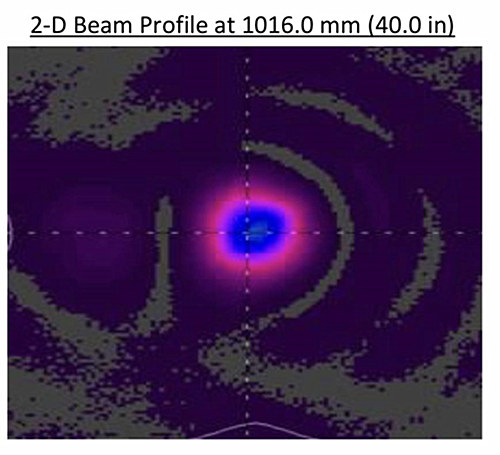

Spot analysis

Ordering info

MIR-QCL- W □□□- ☆- △- XX
W□□□□: Wavelength

4430:4430nm
5260: 5260nm
6140: 6140nm
7400: 7400nm
9000: 9000nm
10260: 10260nm

☆: Collimated output
1: With
0: Without

△: Laser type
FP: QCL-FP
DFB: QCL-DFB

XX: Output power
001 = 1mW
010 = 10mW
400 = 400mW
1000 = 1000mW

CW Distributed Feedback (DFB) Quantum Cascade Laser

* Center wavelength measured at T = 15°C under continuous wave

* Center wavelength tuning range: +/- 0.03 um

* Other center wavelengths are listed in the table +/- 100 nm We can provide screening services

* Other center wavelengths can be customized, minimum order quantity: 5 pieces

Currently we can provide the following wavelengths*

Wavelength(μm)	Wave number(cm-1)	Output power(mW)	Wavelength(μm)	Wave number(cm-1)	Output power(mW)	Wavelength(μm)	Wave number(cm-1)	Output power(mW)
4.22	2370	> 50	6.25	1600	> 100	9.38	1066	> 100
4.28	2336	> 50	7.15	1399	> 100	9.47	1056	> 150
4.32	2315	> 50	7.26	1377	> 100	9.49	1054	> 150
4.34	2304	> 50	7.32	1366	> 100	9.52	1050	> 200
4.45	2247	> 80	7.37	1357	> 100	9.56	1046	> 200
4.48	2232	> 80	7.43	1346	> 150	9.63	1038	> 150
4.53	2208	> 150	7.57	1321	> 150	9.66	1035	> 100
4.56	2193	> 150	7.61	1314	> 150	9.68	1033	> 100
4.59	2179	> 150	7.75	1290	> 300	9.72	1029	> 100
4.61	2169	> 100	7.78	1285	> 300	9.95	1005	> 100
4.72	2119	> 100	7.80	1282	> 300	10.24	977	> 150
5.18	1931	> 150	7.82	1279	> 300	10.26	975	> 150
5.26	1901	> 150	7.85	1274	> 300	10.28	973	> 150
5.66	1767	> 300	8.01	1248	> 100	10.32	969	> 150
5.73	1745	> 150	8.28	1208	> 200	10.36	965	> 150
6.13	1631	> 150	9.02	1109	> 100	10.54	949	> 100
6.15	1626	> 150	9.05	1105	> 100	10.60	943	> 80
6.18	1618	> 100	9.26	1080	> 100	10.63	941	> 80

Pulsed Distributed Feedback (DFB) Quantum Cascade Laser

Wavelength (μm)	Wave number(cm^-1)	Wavelength (μm)	Wave number(cm^-1)	Wavelength (μm)	Wave number(cm^-1)	Wavelength (μm)	Wave number(cm^-1)	Wavelength (μm)	Wave number(cm^-1)	Wavelength (μm)	Wave number(cm^-1)
3.399	2942	4.453	2245	5.193	1925	6.135	1629	7.788	1284	9.489	1053
3.402	2939	4.457	2243	5.214	1917	6.143	1627	7.795	1282	9.509	1051
3.450	2898	4.461	2241	5.224	1914	6.153	1625	7.809	1280	9.529	1049
3.451	2897	4.465	2239	5.233	1910	6.156	1624	7.819	1278	9.544	1047
3.477	2876	4.471	2236	5.240	1908	6.170	1620	7.831	1276	9.586	1043
3.480	2873	4.475	2234	5.244	1906	6.177	1618	7.857	1272	9.598	1041
3.497	2859	4.479	2232	5.250	1904	6.214	1609	7.869	1270	9.623	1039
3.519	2841	4.483	2230	5.255	1902	6.225	1606	7.887	1267	9.634	1037
3.536	2828	4.485	2229	5.261	1900	6.228	1605	7.906	1264	9.655	1035
3.538	2826	4.489	2227	5.264	1899	6.242	1602	7.933	1260	9.672	1033
3.546	2820	4.492	2226	5.266	1898	6.243	1601	7.986	1252	9.692	1031
3.549	2817	4.498	2223	5.272	1896	6.258	1597	7.998	1250	9.720	1028
3.566	2804	4.501	2221	5.279	1894	6.262	1596	8.016	1247	9.744	1026
3.568	2802	4.506	2219	5.289	1890	7.148	1398	8.026	1245	9.903	1009
3.605	2773	4.509	2217	5.294	1888	7.164	1395	8.054	1241	9.921	1007
3.607	2772	4.513	2215	5.304	1885	7.176	1393	8.101	1234	9.943	1005
3.655	2735	4.517	2213	5.306	1884	7.185	1391	8.163	1225	9.964	1003
3.724	2685	4.521	2211	5.452	1834	7.195	1389	8.220	1216	9.983	1001
4.184	2390	4.525	2209	5.486	1822	7.205	1387	8.242	1213	10.001	999
4.185	2389	4.529	2207	5.523	1810	7.217	1385	8.252	1211	10.029	997
4.188	2387	4.534	2205	5.557	1799	7.229	1383	8.265	1209	10.042	995
4.194	2384	4.538	2203	5.592	1788	7.258	1377	8.282	1207	10.063	993
4.197	2382	4.543	2201	5.612	1781	7.268	1375	8.292	1205	10.190	981
4.200	2380	4.545	2200	5.626	1777	7.285	1372	8.301	1204	10.206	979
4.204	2378	4.550	2197	5.632	1775	7.289	1371	8.326	1201	10.238	976
4.207	2376	4.554	2195	5.639	1773	7.327	1364	8.335	1199	10.259	974
4.215	2372	4.560	2192	5.646	1771	7.337	1362	8.352	1197	10.289	971
4.219	2370	4.565	2190	5.651	1769	7.348	1360	8.386	1192	10.327	968
4.221	2369	4.569	2188	5.657	1767	7.354	1359	8.902	1123	10.342	966
4.226	2366	4.574	2186	5.665	1765	7.367	1357	8.948	1117	10.377	963
4.231	2363	4.577	2184	5.669	1763	7.373	1356	9.004	1110	10.396	961
