1064nm High Power PM Fiber Laser 2W

With optimized optical characteristics, the 1064nm single-mode DFB has become an ideal choice for high-demand sensing system applications. The innovative chip design has suppressed higher-order longitudinal and transverse modes, while maintaining linear polarization stability. The laser features high output power (up to 50W), narrow linewidth, and good consistency, making it highly favored by domestic research customers. Currently, we have stock covering wavelengths from 1000nm to 2400nm, and for certain specific customer applications, we can provide customized chip selection services.

Product features：Ultra-narrow linewidth: <10MHz、 No mode hopping、 High stability and reliability、 Continuously adjustable output power, LCD status display

Application area：LAN/WAN communication systems、 CATV systems、 Test and measurement、 Other scientific research

Unit Price

Please contact customer service for a discounted quote.

Part Number

LP-1064-B-2-1-PA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters			Min.	Typ.	Max.	Unit
PN#			LP-1064-B-2-1
Peak operating wavelength			-	1064	-	nm
Output power		SM	-	10	-	W
		PM	-	10	-	W
SMSR			20	25	35	dB
Output polarization extinction ratio (PER)			20	-	-	dB
Output power stability (15 minutes)			-	-	±0. 5	%
Output power stability (8 hours)			-	-	±1. 5	%
Output power adjustment range			30	-	100	%
Output power regulation mode			Coarse/ Fine adjustment
Operating voltage			170	220	260	V
Operating temperature			0	-	35	℃
Storage temperature			-40	-	85	℃
Output fiber type	SM		SM-GSF-10/ 125@<20w			W
	PM		PM-10/ 125@<10w			W
Output fiber length			>1			m
Output fiber connector			FC/ APC
Dimensions			Rack-mounted customization available			mm

Spectrum

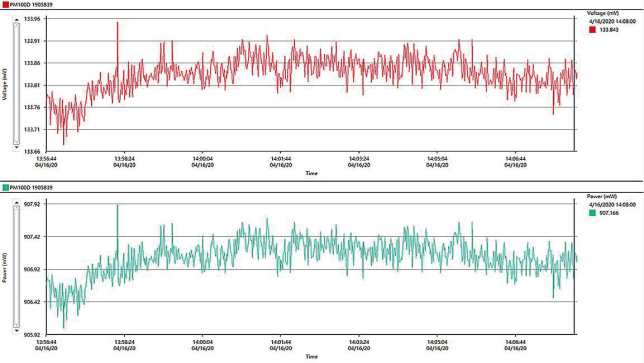

Power stability

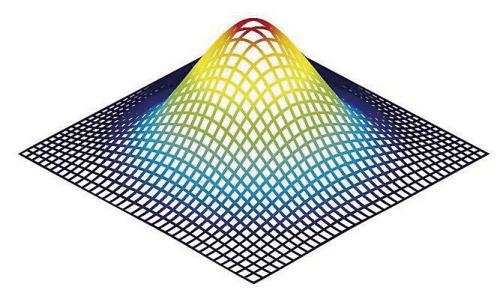

Beam quality

Ordering info

A. Model: LP-1550-B-2-1-SA Description:
Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode SMF-28E output, FC/APC connector

B.A. Model: LP-1550-B-10-1-SA Description:
Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode SMF-28E output, FC/APC connector

E. Model: LP-1550-B-2-1-PA Description:
Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode PM1550 output, FC/APC connector

F. Model: LP-1550-B-10-1-PA Description:
Center wavelength: 1550nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode PM1550 output, FC/APC connector

C. Model: LP-1064-B-2-1-SA Description:
Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode SM-GSF-10/125 output, FC/APC connector

D. Model: LP-1064-B-10-1-SA Description:
Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode SM-GSF-10/125 output, FC/APC connector

G. Model: LP-1064-B-2-1-PA Description:
Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 2W, 2U rack-mounted packaging, single-mode PM-10/125 output, FC/APC connector

H. Model: LP-1064-B-10-1-PA Description:
Center wavelength: 1064nm, wavelength deviation: ±1nm, output power: 10W, 2U rack-mounted packaging, single-mode PM-10/125 output, FC/APC connector
