4.6um low power benchtop DFB-QCL mid-infrared quantum cascade laser 20mW (TDLAS integrated control module)

QCL4660-4.6um low-power benchtop DFB-QCL mid-infrared quantum cascade laser is a domestically advanced ultra-low-power QCL DFB laser developed by Idealphotonics in the first half of 2018. The tunable range exceeds 100nm, and the output power is greater than 20mw to meet the industrial needs of customers testing gas sensors. Our laser collimated output has stable output power and high temperature and wavelength stability, which is several orders of magnitude higher than the stability of traditional high-power quantum cascade lasers. It provides an excellent test light source for our mid-infrared test customers.

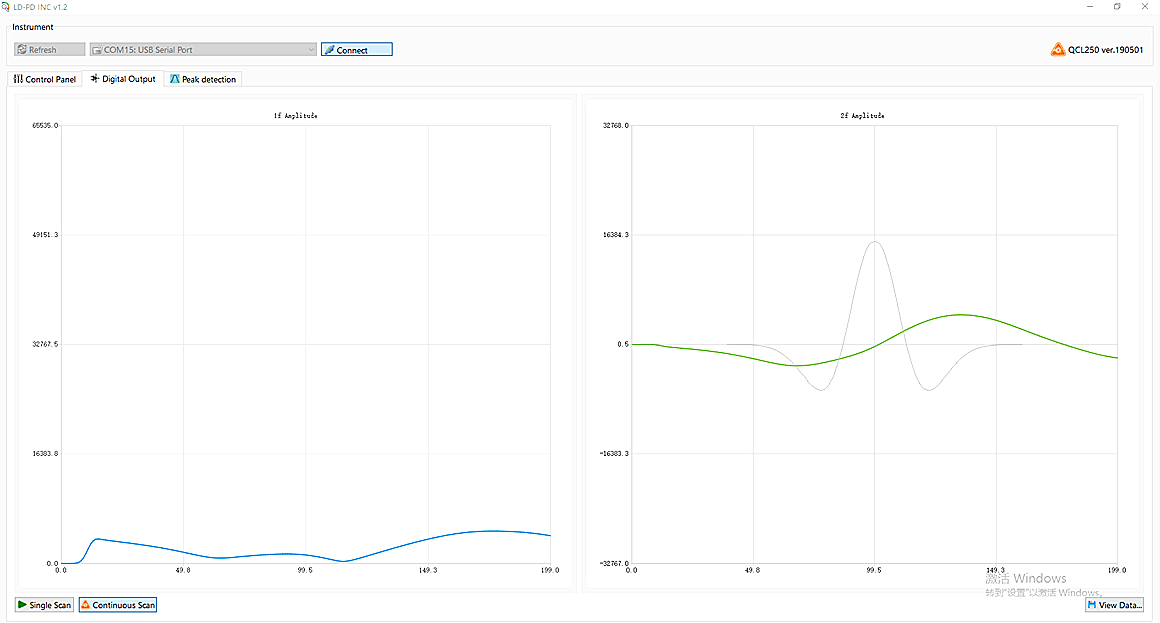

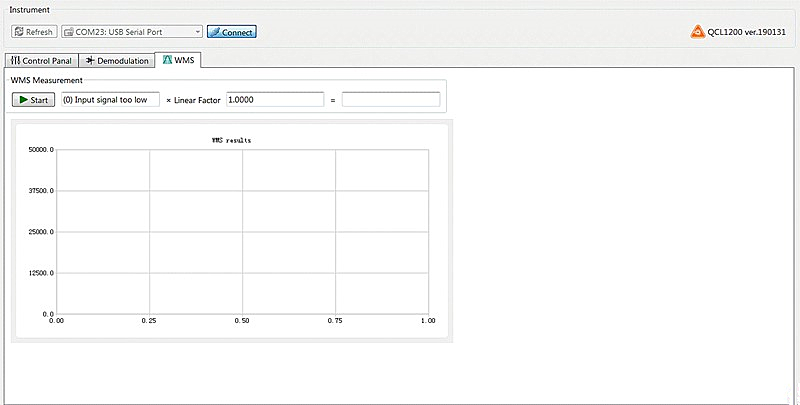

Product features：Low power consumption, high power、 Narrow line width、 Compact structure、 Intelligent software control、 Built-in FPGA

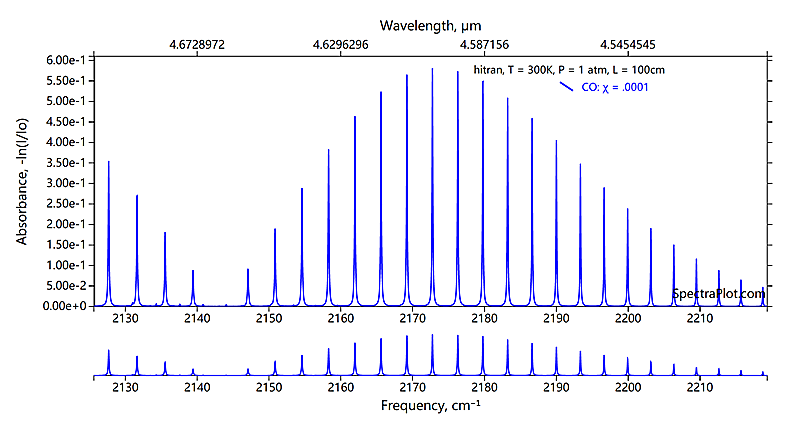

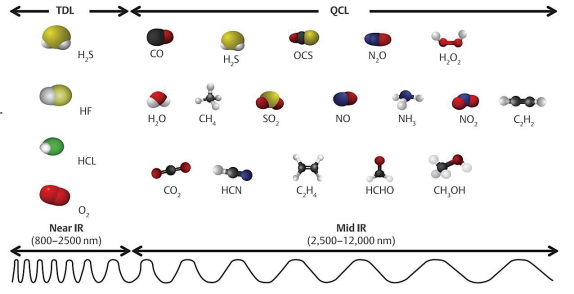

Application area：TDLAS CO high-precision trace analysis、 Mid-infrared test light source、 Mid-infrared device analysis

Unit Price

Please contact customer service for a discounted quote.

Part Number

TDLAS-MIR-QCL-W4600-1-DFB-020

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Unit	Indicators
		Min.	Typical value	Max.
PN#		QCL4600

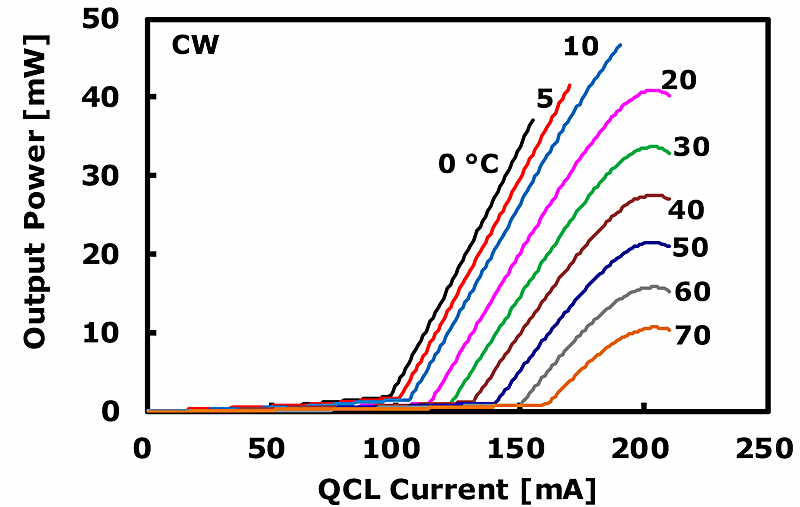

Output power 1	mW	20	-	40
Peak operating wavelength 2	um	4.5	4.6	4.7
Spectral width (FWHM)	MHZ	-	3	-
Output side mode suppression ratio (SMSR)	dB	20	-	-
Output isolation 3		-	30	-
Wavelength temperature coefficient	Mrad		0.6

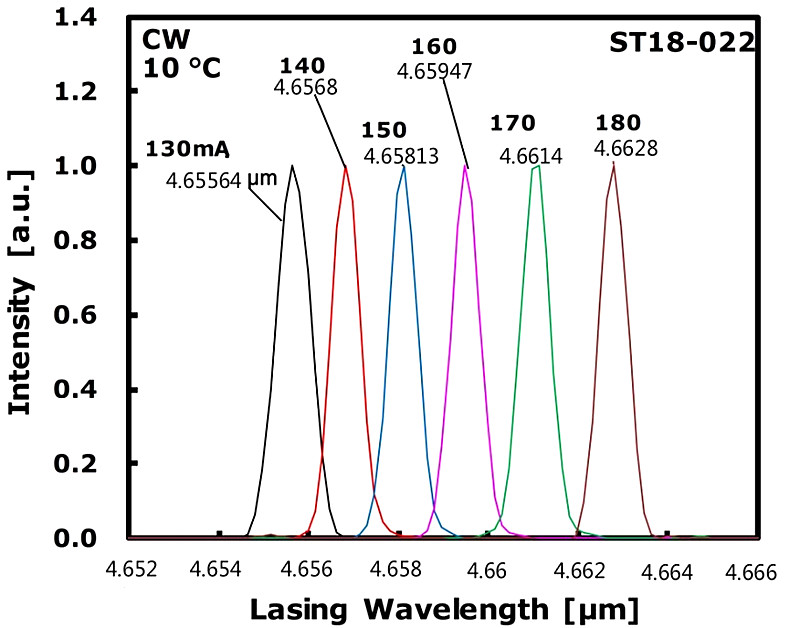

Wavelength current coefficient	mm		0.2

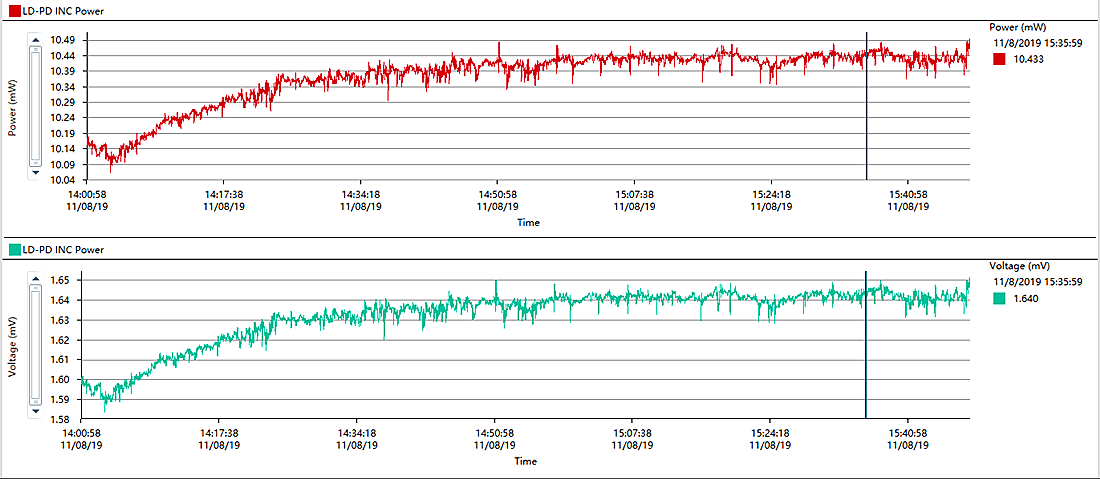

Output power stability (15 minutes) 4	nm/K		±0.5	±1.0
Output power stability (8 hours) 4	nm/A		±1.0	±2.0
Output power adjustable range	%	0	-	100

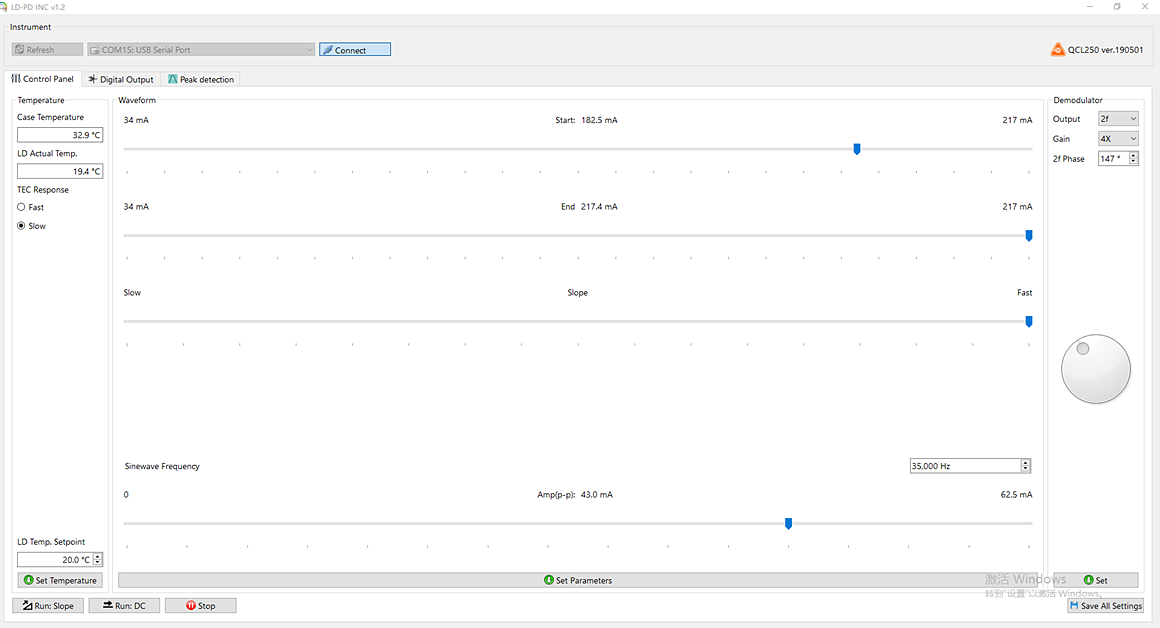

Output power adjustment mode		Soft control
TEC stability	℃	-	±0.1	±0.2
TEC operating range	℃	0	30	50
Operating voltage	VAC	100	220	240
Electrical power consumption 5	W	-	-	2
Operating temperature	℃	0	-	55
Storage temperature	℃	-20	-	65
Specifications and dimensions	mm	290(L)×108(W)×168(H) mm
