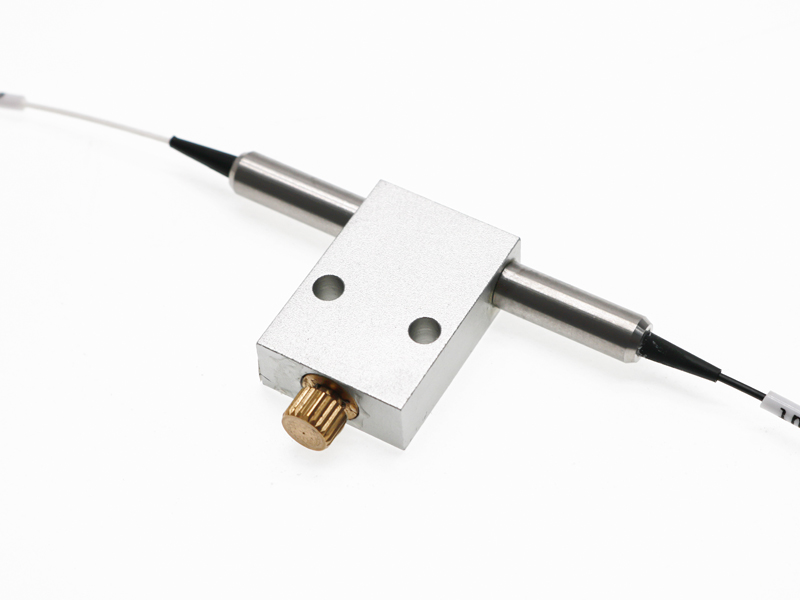

1310nm PM Fiber Attenuator

The adjustable attenuator is based on IdealPhotonics' unique optical design and processing capabilities. Our VOA features fast optical attenuation adjustment, compact size, low insertion loss, low polarization-dependent loss, high mode stability, and high reliability. It is mainly used in multimode transmission networks, power balancing, product testing, and related instruments and equipment.

Product features：Wide operating wavelength range & broad temperature range、 Low insertion loss、 Low polarization-dependent loss and polarization mode dispersion、 Extremely high reliability and stability、 Compliant with Telcordia GR-1221 & GR-1209 standards

Application area：Multi-mode product testing、 Multi-mode transmission networks、 Power balancing、 Receiver protection、 Related instrumentation and equipment

Unit Price

Please contact customer service for a discounted quote.

Part Number

VOA-W1310-1-9-P13P

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

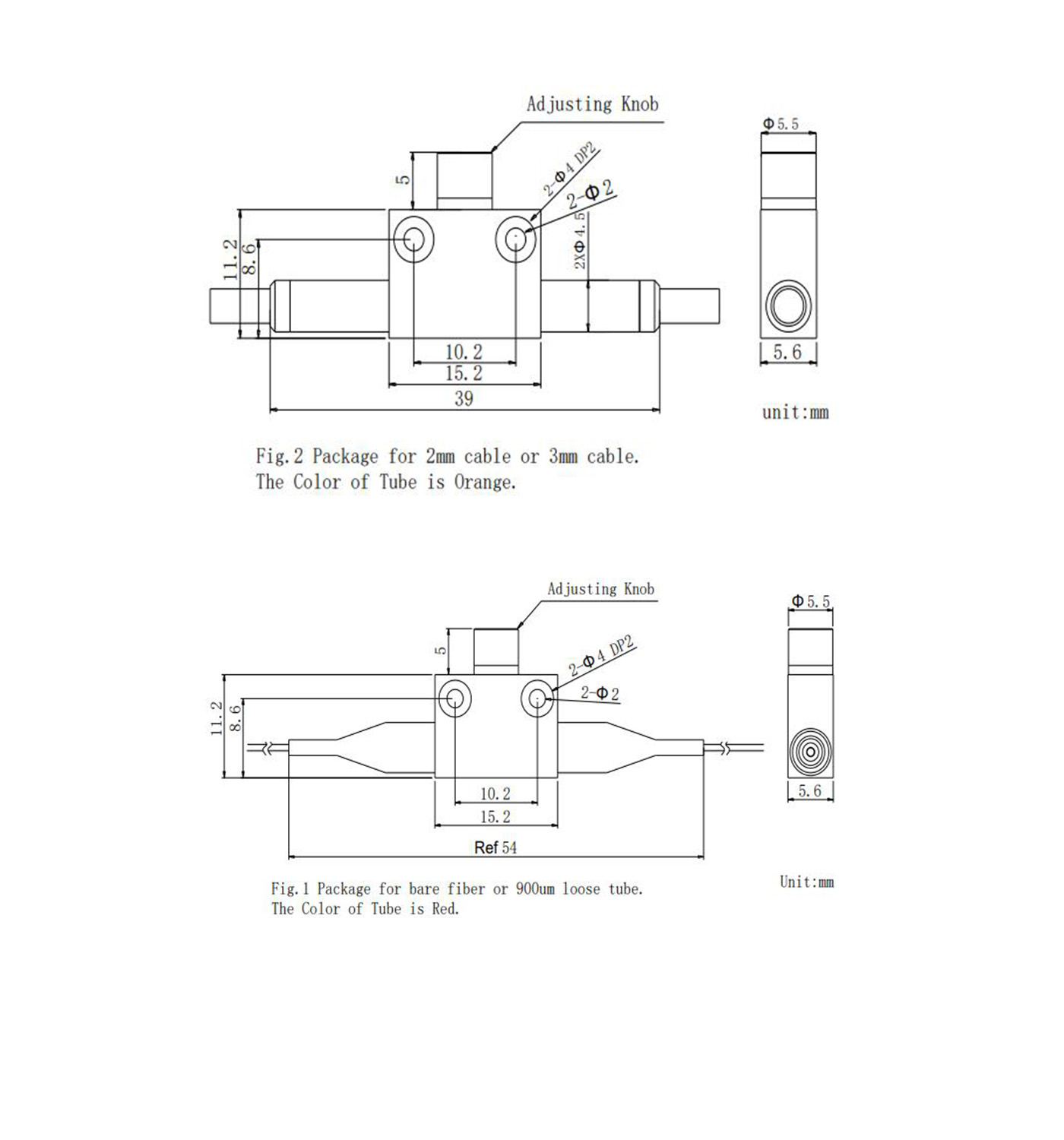

Dimensional Drawing

Parameters

Parameters	Unit	Value
Support Center Wavelength	nm	1060/1310/1550/2000nm
Operating Bandwidth	nm	±30
Maximum Additional Loss	dB	0.6
Maximum Attenuation	dB	30
Max. WDL at 23℃, Minimum Attenuation	dB	0.3
Attenuation Resolution within 10dB Range	dB	0.1
Max. TDL (Minimum Attenuation)	dB	0.5
Minimum Return Loss	dB	50
Minimum Extinction Ratio (PM)	dB	20
Fiber Type	-	SM/Panda Fiber (based on operating wavelength)
Max. Tensile Strength	N	5
Maximum Operating Power (CW)	mW	300
Operating Temperature	℃	0 to 70
Storage Temperature	℃	-40 to +85 (No Condensing)

*Above speciﬁcations are for device without connector.

*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower,and ER is 2dB lower.

*The PM ﬁber and the connector key are aligned to the slow axis.

Ordering info

VOA- W□□□□ -☆-△-XX W□□□□：Wavelength

1064: 1064nm

1310: 1310nm

1550: 1550nm

2000: 2000nm

☆ ：Pigtail Length

05:0.5m

1: 1m

10: 10m

△：Loose Tube

B: Bare Fiber

9: 900um Loose Tube

20: 2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

S06A=HI1060+ FC/APC

P06P=PM980+ FC/PC

S13A=SMF-28E+ FC/APC

P13P=PM1310+ FC/PC

S15A=SMF-28E+ FC/APC

P15P=PM1550+ FC/PC

S20A=SM1950+ FC/APC

P20P=PM1950+ FC/PC
