808nm high power benchtop single mode pump source 200mW

Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve high and stable output of the laser, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button), which can effectively help customers return to the previous working state. This is a highly integrated modular system light source, which uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser for some application fields. We have connected two modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

Product features：Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

Application area：Laser sensor、 Pump light source、 Test and measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-808

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Characteristic	Min.	Max.	Unit	Notes
Power supply voltage	100	230	VAC	Mains electricity
Power	5	20	W
Laser drive current	0	128	mA	Jumper optional
		266
		590
Laser drive voltage	0	3.1	V	@250mA
Response frequency	0	15	MHz	-3db
Temperature control range	0	5	℃
TEC output current	-1.5	1.5	A
TEC output voltage	-4.4	+4.4	V
Analog input(low frequency)	-2.5	2.5	V
Analog input(high frequency)	-2.5	2.5	V
PD monitoring range	0	2	mA

Laser parameter

Parameter	Unit	Value
Laser wavelength	nm	808±1
power	mW	200
Spectral width	nm	0.5
Operating current	mA	400
Threshold current	mA	86
Operating voltage	v	1.22
Thermistor	Ω	10000

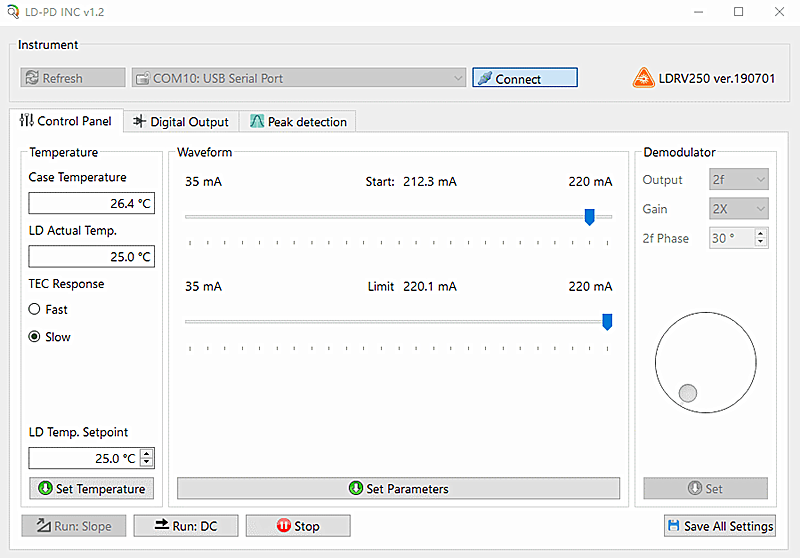

Control software interface

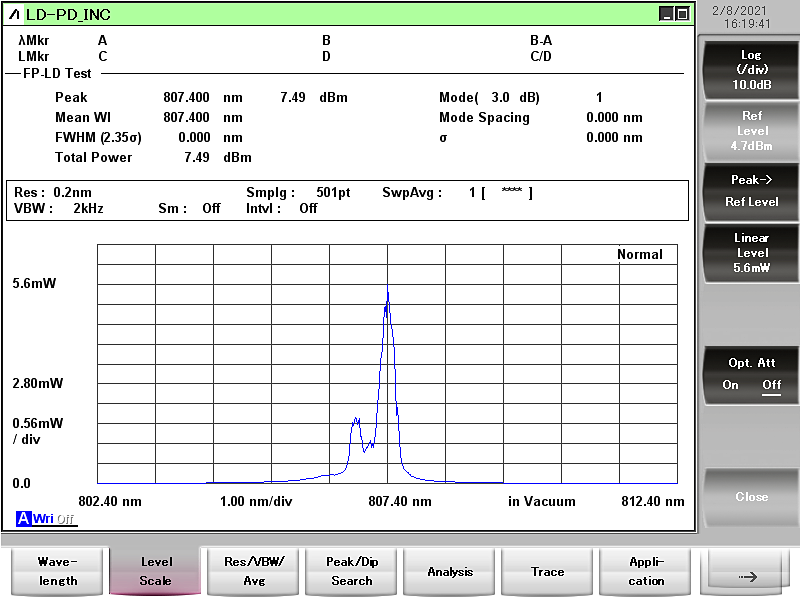

Spectrum

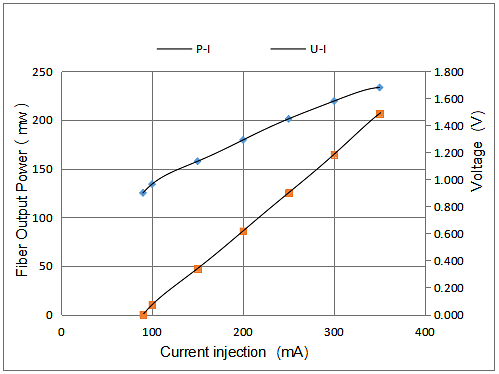

Power curve

Ordering information

Name：808nm high power benchtop single mode pump source

PN#：LDC-250-M-808

Operating wavelength：808:808nm
