2um Single Frequency Polarization Maintaining Thulium Doped Fiber Amplifier (TDFA) 1950-2050nm TDFA-1W-FA-PM

Idealphotonics Thulium-doped Benchtop Single-Frequency Polarization-Maintaining Fiber Amplifier is a power amplifier specially designed for ultra-narrow linewidth, single-frequency signal light (such as fiber lasers made based on DFB and DBR principles). This amplifier can amplify low-power optical signals of the kHz level to an output power of up to 50W, and can well maintain the spectral characteristics of the input signal light. Our amplifier uses a high-power, high-performance multi-mode pump source, double-clad fiber amplification technology, an integrated design of a fully polarization-maintaining structure, and continuously adjustable output power. The benchtop fiber amplifier is a complete Turn-Key system, which is internally controlled by a microprocessor. The front panel is equipped with a laser start switch and a power status LCD display, as well as an output power adjustment knob. Benchtop polarization-maintaining fiber amplifier (TDFA) can be widely used in scientific research, coherent synthesis, coherent detection sensor systems, etc.

Product features：High output power、 Low noise figure、 Turn-Key system、 ACC/ALC mode operation

Application area：Optical communication、 Test and measurement、 Scientific application

Unit Price

Please contact customer service for a discounted quote.

Part Number

TDFA-1W-FA-PM

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

PN#	TDFA-1W-FA-PM
	2um fiber amplifier (TDFA)
Application	Pre-amplified optical amplifier
Signal wavelength range	1900-2050nm
Maximum output power*1	>+30dBm />1W
Gain*2	>20dB
Noise factor*2	<6dB
Amplification control	ACC / ALC
Monitoring items	Input power, output power, LD current, LD temperature, ambient temperature
Safety functions	Remote shutdown interlock
Remote control interface	RS232C/IEEE488.2(GP-IB)
Input/output optical fiber	PMF(Nufern PM1950)
Optical fiber connector	FC/APC
Minimum extinction ratio	20dB
Input signal line width	Down to 0.1KHZ
Operating temperature	0 ~ 40 °C
Storage temperature	-10 ~ 60 °C
Dimensions*3 (mm)	88 x 430 x 450
Weight	5 Kg
Power consumption	<30W
Power supply	AC 100 ~ 240V (50/60Hz)

Notes:

* 1 Input power 1-10dBm@1950

* 2 Under the premise of ensuring beam quality M²＜1.05, single mode, TEM00 mode

* 3 Excluding protruding parts

* TDFA-1W-FA-PM is designed for 1950～2050nm, total power 0dBm input signal to achieve the best gain stability.

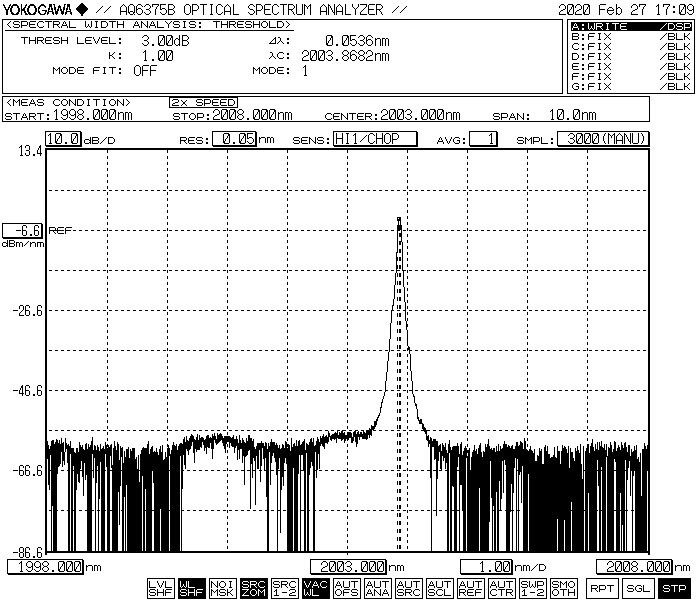

spectrum

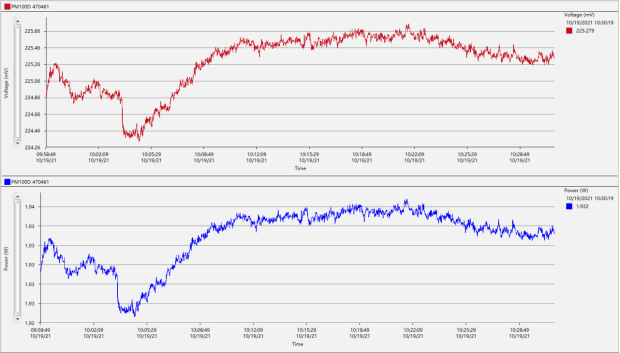

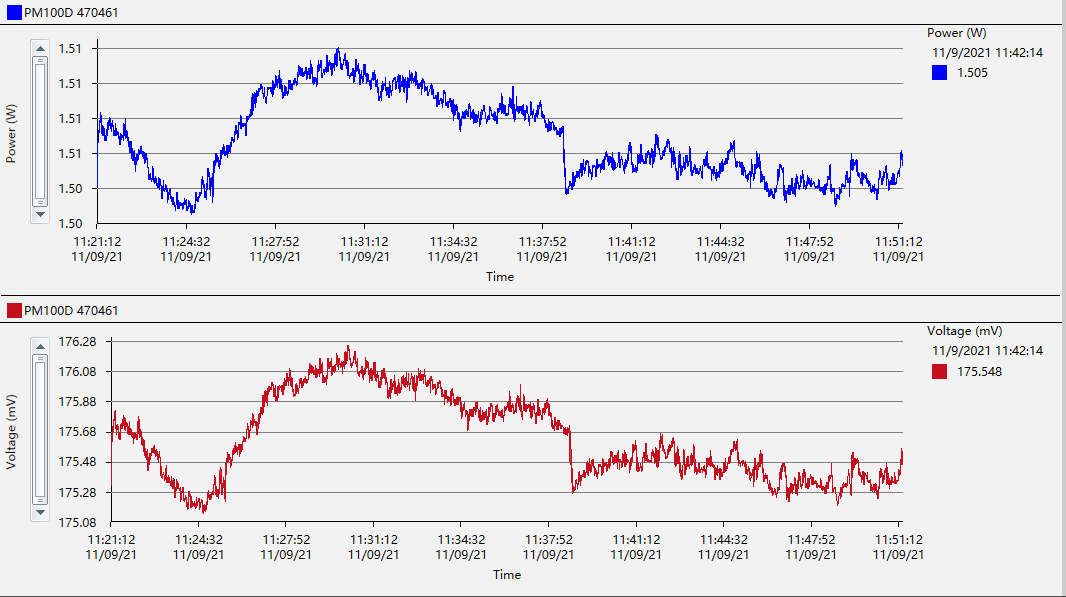

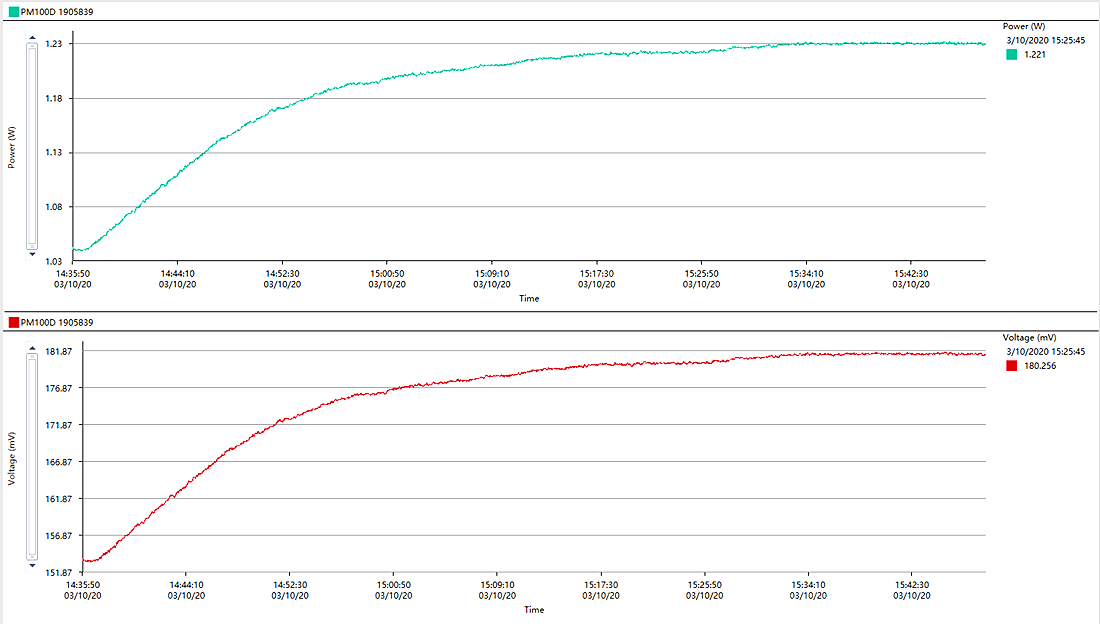

Power stability curve and modulation linearity test curve

The following was filled out by the personnel from AOL Laboratory.
Test date	2021.11.9	Engineer	Dai Jiahao
Test production	2um continuous fiber amplifier TDFA(XZ2010T264)	Auditor	Wang Xiuxiang
Purpose of Test	Power stability test、Spectrum chart
Equipment of Test	Dynamometer、Spectrometer

I 2000nm

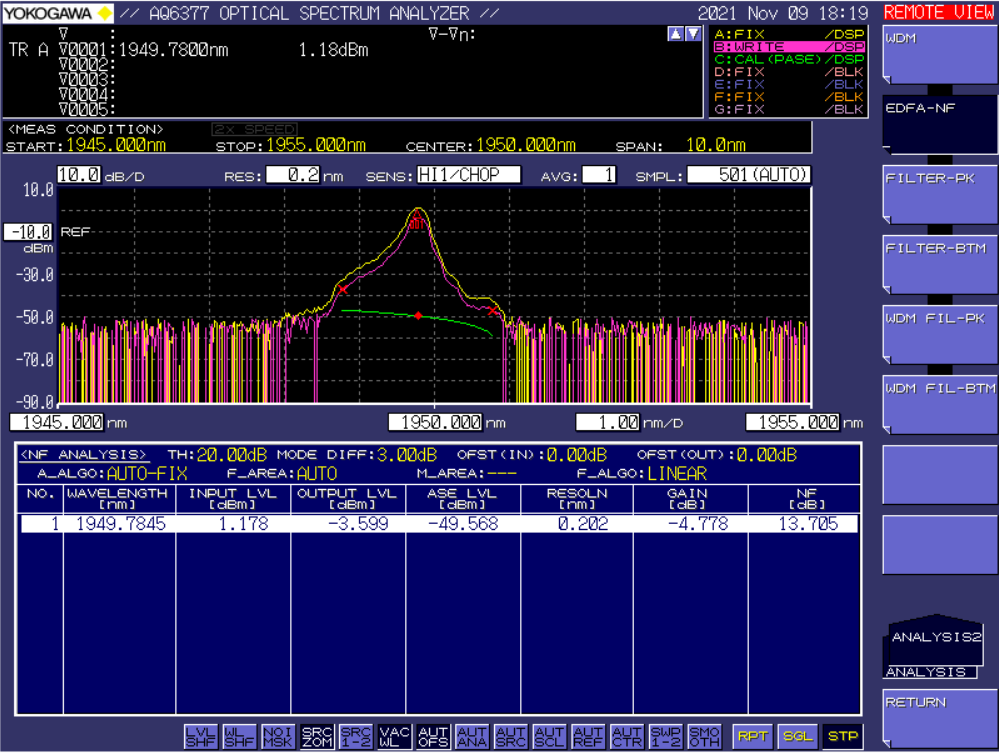

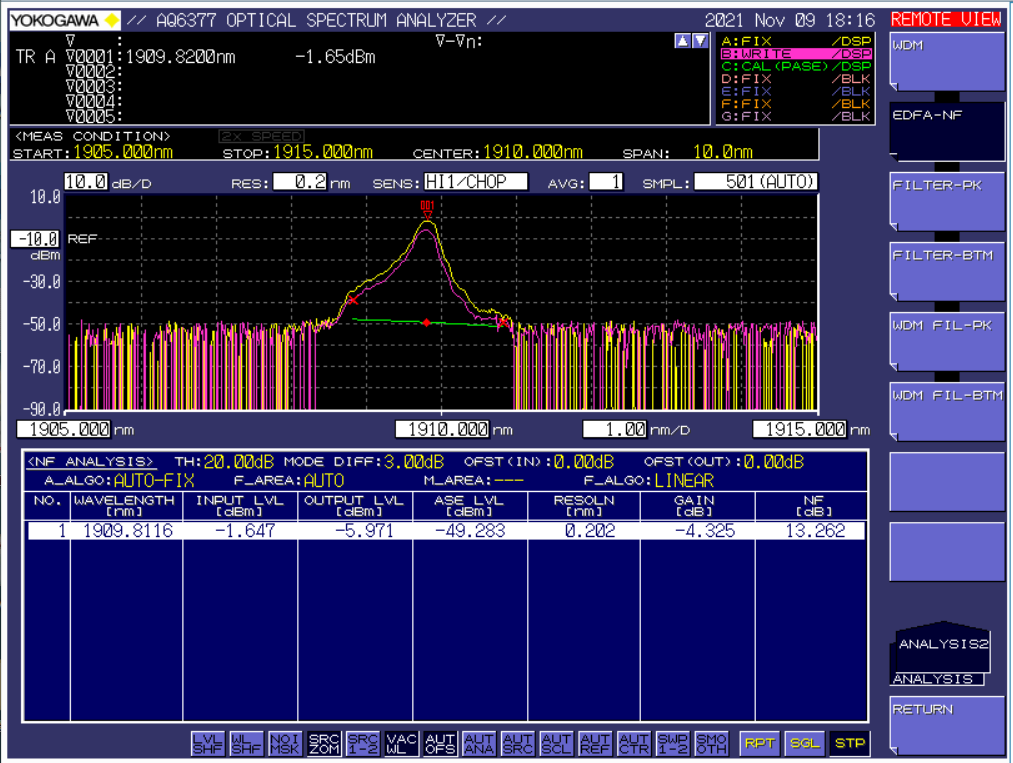

1. Amplify the noise test chart

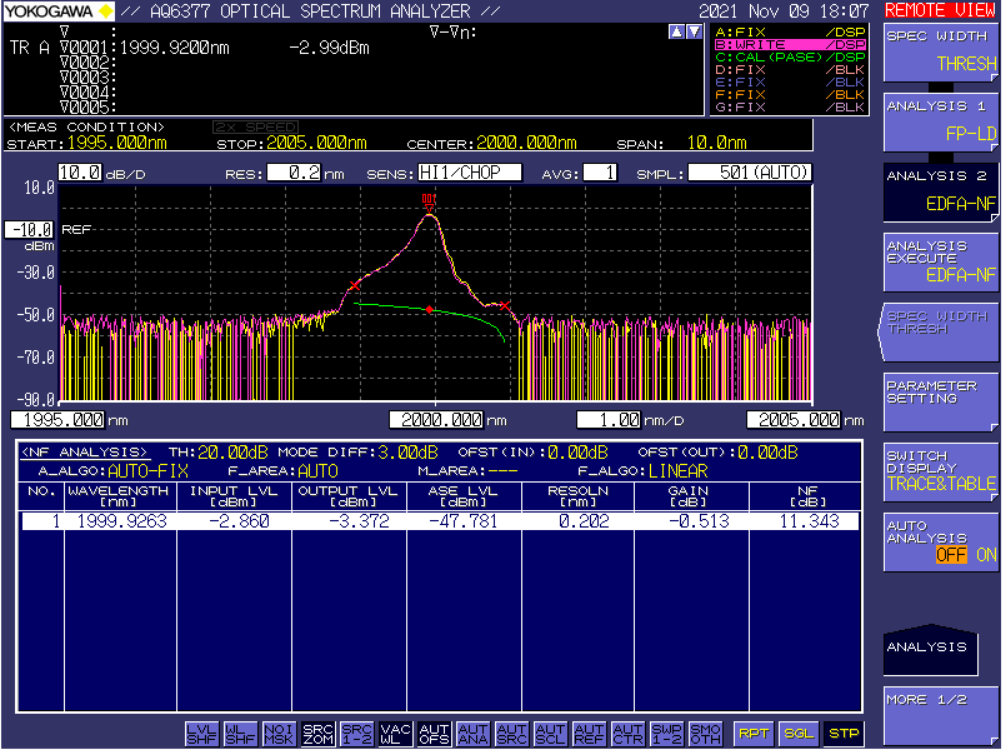

In the above figure, Trace A (yellow) is the seed light spectrum, and Trace B (purple) is the spectrum after amplification (after passing through a 2um attenuator), and the same below. The amplified noise measured at 2000nm is 11.343dB.

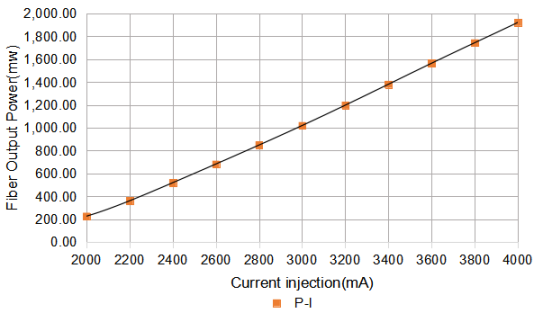

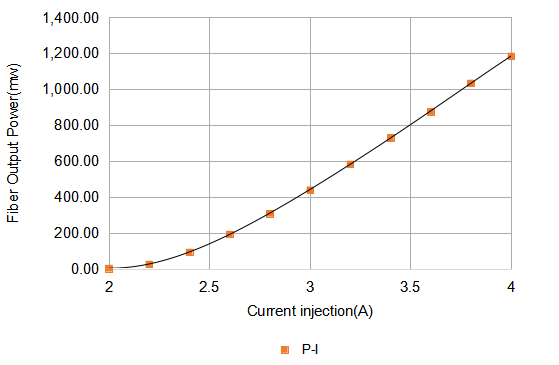

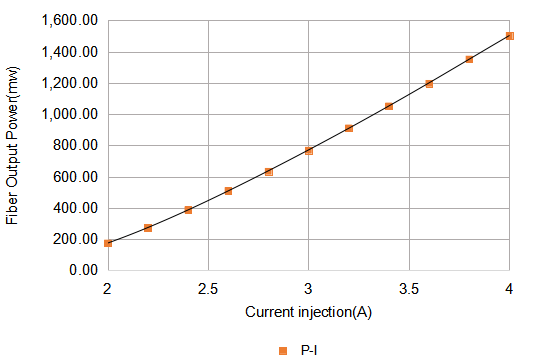

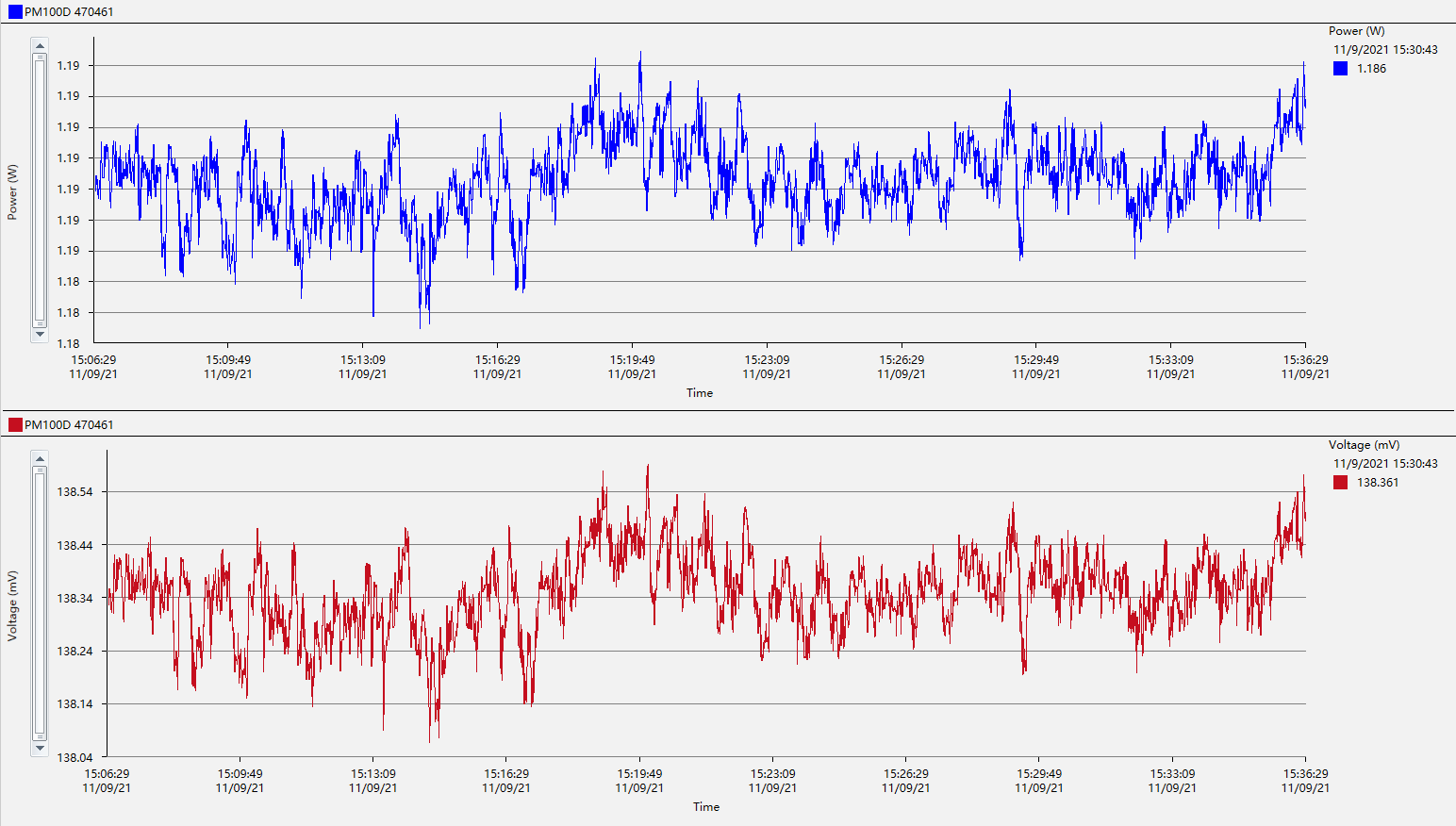

2. Power curve
