Technical parameters:
Conditions: TOP = 20°C, IO P = 10.0 mA unless otherwise specified (TOP = chip backside temperature, controlled by TEC)
Parameters | Symbol | Min. | Typ. | Max. | Unit | Note |
wavelength | λR | 1530-1570nm | ||||
threshold current | ITH | 2 | mA | |||
output power | Popt | 0.3 | 0.5 | 0.7 | mW | |
threshold voltage | UTH | 1.8 | V | |||
operating current | IOP | 15 | mA | Popt = 0.5mW | ||
operating voltage | UOP | 3 | V | Popt = 0.5 mW | ||
electric-optical conversion efficiency | ηWP | 12 | % | Popt = 0.5 mW | ||
slope efficiency | ηS | 0.3 | W/A | |||
rise/fall time | Tr/Tf | 90/120 | Psec | |||
differential series resistance | RS | 100 | 200 | Ω | Popt = 0.5 mW | |
3dB modulation bandwidth | ν3dB | 0.10 | GHz | Popt = 0.5 mW | ||
Due to ESD protection diode | ||||||
Relative intensity noise | RIN | -130 | -120 | dB/Hz | Popt = 0.3 mW @ 1 GHz | |
Wavelength tuning current coefficient | 0.6 | nm/mA | ||||
Wavelength tuning temperature coefficient | 0.06 | nm/K | ||||
Thermistor (VCSEL chip) | Rthermal | 3 | 5 | K/mW | ||
SMSR | 35 | dB | I = 2 mA | |||
Beam divergence angle | θ | 10 | 25 | ° | Popt = 0.5mW, full width 1/e2 | |
Line width | 100 | MHz | Popt = 0.5 mW |
Tec Characteristics | Symbol | Min. | Typ. | Max. | Unit |
Tec Current | mA | -150(Heating) | +300(Cooling) | Proper Heart Sink Required | |
NTC Thermistor | KΩ | 9.5 | 10.0 | 10.5 | T=25℃@10 KΩ |
NTC Thermistor | KΩ | 10/exp{3892-(1/289K-I/TOP)} |
Absolute Maximum Parameters:
Parameters | Symbol | Min. | Typ. | Max. |
Storage temperature | ℃ | -40 | 25 | 125 |
Chip temperature | ℃ | +10 | 25 | 40 |
Operating current | mA | 0 | 3.0 | 15.0 |
Forward voltage | V | 0.8 | 1.2 | 1.8 |
TEC current | mA | -150 | - | +300 |
Soldering temperature* | ℃ | 100 | 130 | 260 |
Power consumption | mw | - | - | 5 |
(*TEC temperature must be below 150°C)

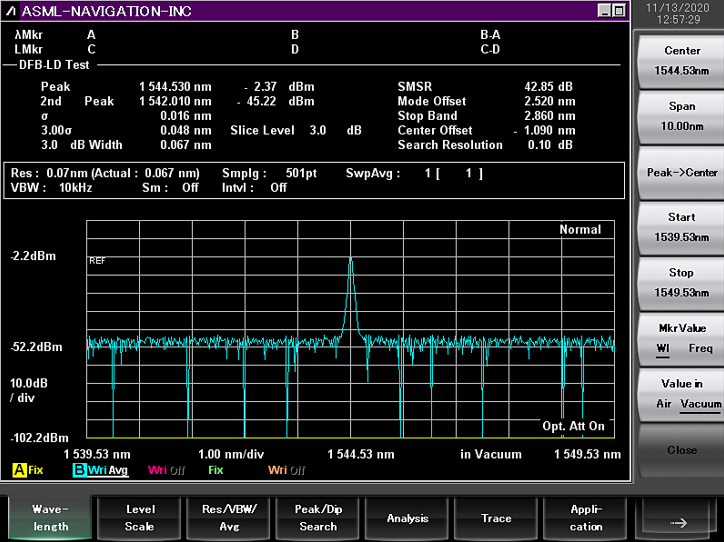

Spectrum:

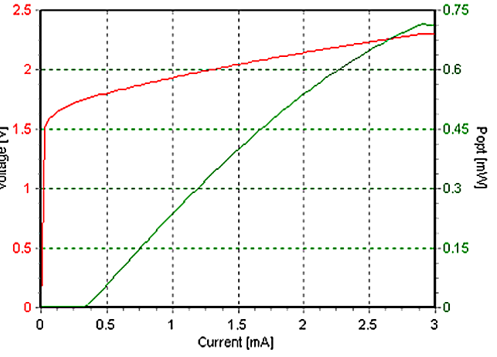

L-I Curve(T@25°C):

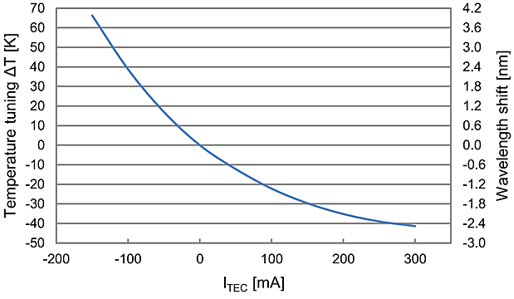

Temperature/wavelength tuning curve via TEC current:

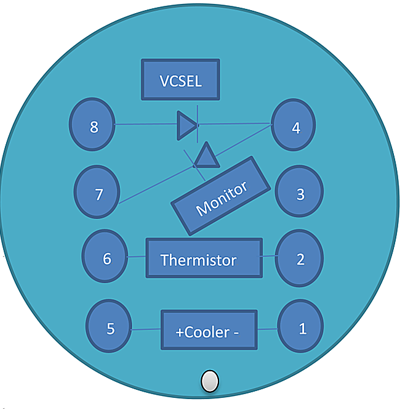

Pin definition:
1 | Thermoelectric Cooler (-) | 5 | Thermoelectric Cooler (+) |
2 | Thermistor | 6 | Thermistor |
3 | N/C | 7 | PD Monitor Cathode (+) |
4 | VCSEL Cathode (‒)/PD Monitor Anode (-) | 8 | VCSELAnode (+) |
Order Info:
PL-VCSEL-□□□□-☆-A8▽-XXXX
□□□□:Wavelength
0760:760nm
0850-850nm
*****
1550:1550nm
☆ :TEC
0:Without TEC
1:With TEC
▽:Wavelength Tolerance
1:±0.5nm
2:±1.5nm
XXXX: Fiber and Connector
Type FS=Free Space
BFSA=Butterfly Package with SMF-28E+ FC/APC
CPSA=Coaxial Package with SMF-28E+ FC/APC
BFSP=Butterfly Package with SMF-28E+ FC/PC
CPSP=Coaxial Package with SMF-28E+ FC/PC
BFPP=PM Fiber+ FC/PC
BFPA=PM Fiber+ FC/APC
