1x4 Magneto-optic Switch Module

Idealphotonics Microsecond Series Solid-State 1×4 Magneto-Optic Switch Module uses the Faraday rotation effect to achieve optical path switching. This magneto-optic switch adopts our patented technology—mechanical structure-free, fully solid-state crystal design—eliminating the need for mechanical movement to switch the optical path. The design of the microsecond series optical switch meets most switching requirements, such as extremely high stability and durability, fast response, and continuous high-frequency operation.

Product features：No moving parts, long lifespan、 Ultra-fast switching speed、 Extremely stable latching mode、 Low power consumption、 One-end fiber output—easy for fiber winding、 Exceptional reliability and stability

Application area：Optical path switching、 High-speed protection system、 System monitoring、 Testing and measurement、 Fiber optic sensing systems

Unit Price

Please contact customer service for a discounted quote.

Part Number

ROPS10-14M1121120

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Specs	Unit	Parameters		Notes
Specs	Unit	Unidirectional	Bidirectional	Notes
Wavelength range	nm	1525～1565		Other bandwidth ranges are available.
Insertion loss	dB	1.8 (Typ.); 2.2 (Max.)	2.0 (Typ.); 2.4 (Max.)	For high-power models, an additional 1.2dB should be added.
Polarization dependent loss (PDL)	dB	0.2 (Typ.); 0.3(Max.)
Return loss	dB	40	30
Crosstalk	dB	40	35
Polarization dependent loss (PDL)	ps	0.2
Repeatability	dB	+/- 0.01
Durability	cycles	> 30 Billions
Switching speed	μs	100 ~ 400
Operating temperature	°C	-5 ~ 70
Storage temperature	°C	-40 ~ 85
Maximum optical power	mW	500		***for high-power
Dimensions (L×W×H)	mm	80×55×18

*.All indicators are connector-free and valid only within the above wavelength, polarization and temperature ranges.

**.Indicators are subject to change without prior notice.

***High power version: 5W continuous laser, 700W nanosecond pulse laser

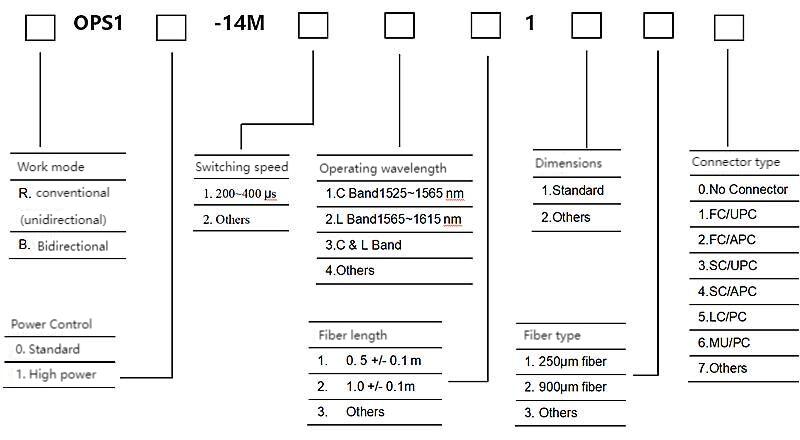

Ordering info

Example:ROPS10-14M1121120
