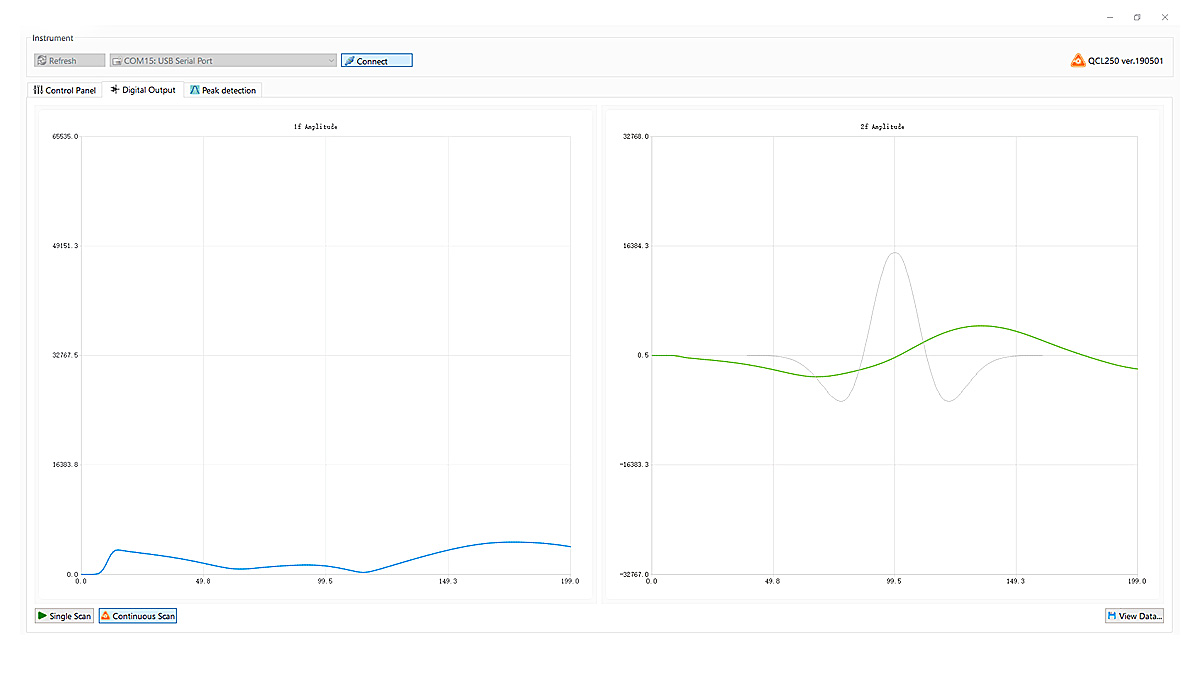

2F signal acquisition interface

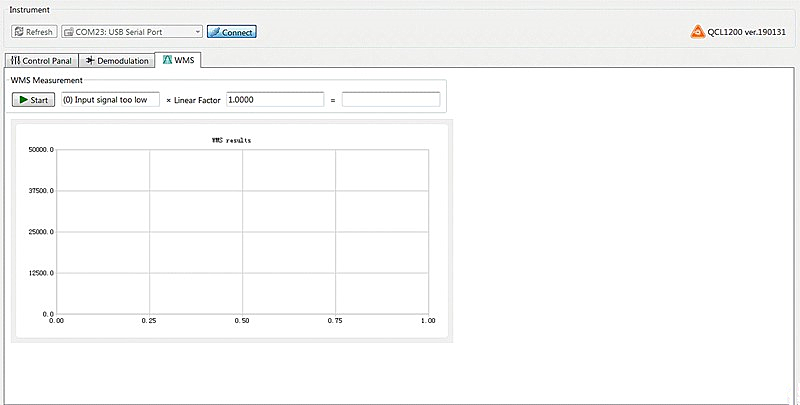

Algorithm calibration interface

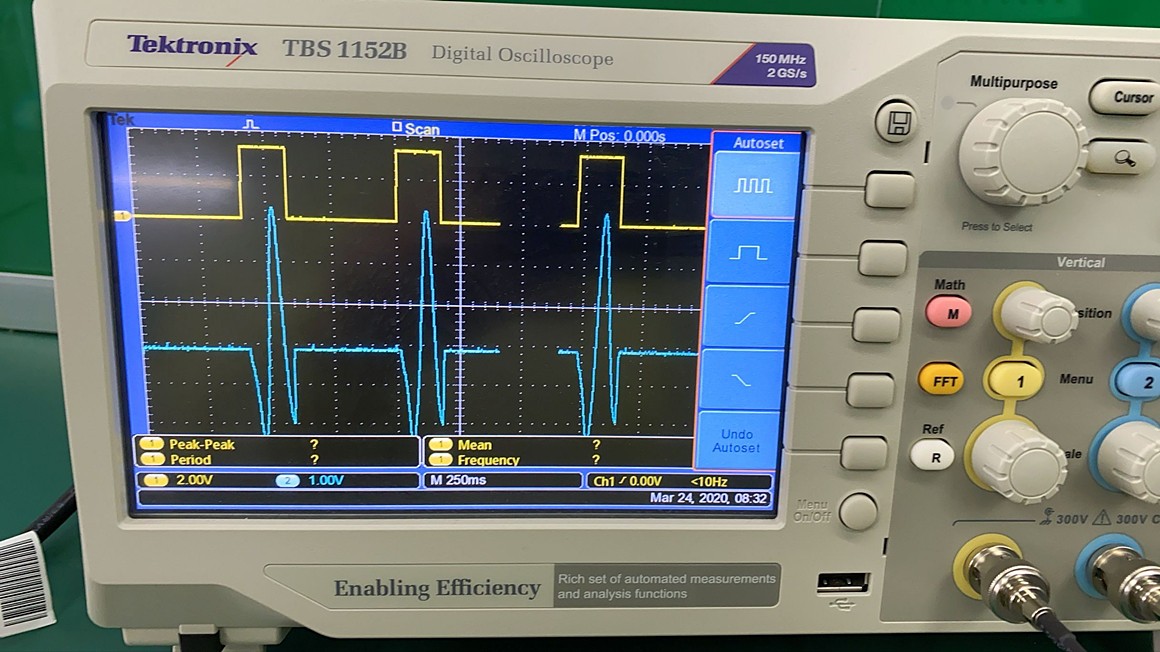

Modulation signal linearity test (oscilloscope voltage signal effect diagram)
Parameters
Parameter | Unit | Indicators | ||
Min. | Typical value | Max. | ||
PN# | QCL9060 | |||
Output power 1 | mW | 20 | - | 40 |
Peak operating wavelength 2 | um | 9 | 9.06 | 9.16 |
Spectral width (FWHM) | MHZ | - | 3 | - |
Output side mode suppression ratio (SMSR) | dB | 20 | - | - |
Output isolation 3 | - | 30 | - | |
Wavelength temperature coefficient | Mrad | 0.6 | ||
Wavelength current coefficient | mm | 0.2 | ||
Output power stability (15 minutes) 4 | nm/K | ±0.5 | ±1.0 | |
Output power stability (8 hours) 4 | nm/A | ±1.0 | ±2.0 | |
Output power adjustable range | % | 0 | - | 100 |
Output power adjustment mode | Soft control | |||
TEC stability | ℃ | - | ±0.1 | ±0.2 |
TEC operating range | ℃ | 0 | 30 | 50 |
Operating voltage | VAC | 100 | 220 | 240 |
Electrical power consumption 5 | W | - | - | 2 |
Operating temperature | ℃ | 0 | - | 55 |
Storage temperature | ℃ | -20 | - | 65 |
Specifications and dimensions | mm | 290(L)×108(W)×168(H) benchtop |
Technical Specifications:
1.Output power is selectable.
2.Peak operating wavelength is selectable.
3.Output power stability test conditions are at 25°C, after a 30-minute warm-up.
4.Maximum power consumption refers to the overall power consumption under extreme operating conditions.

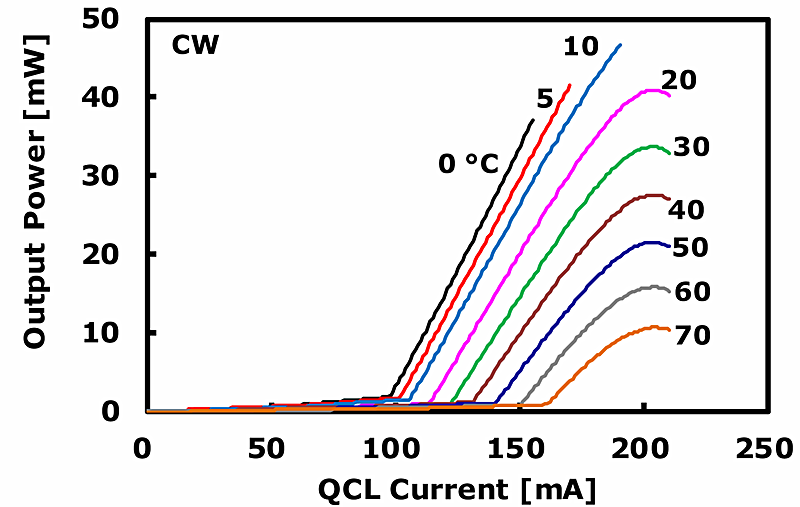

QCL laser characteristic curve (taking 9.06um typical wavelength as an example) Output power characteristic curve

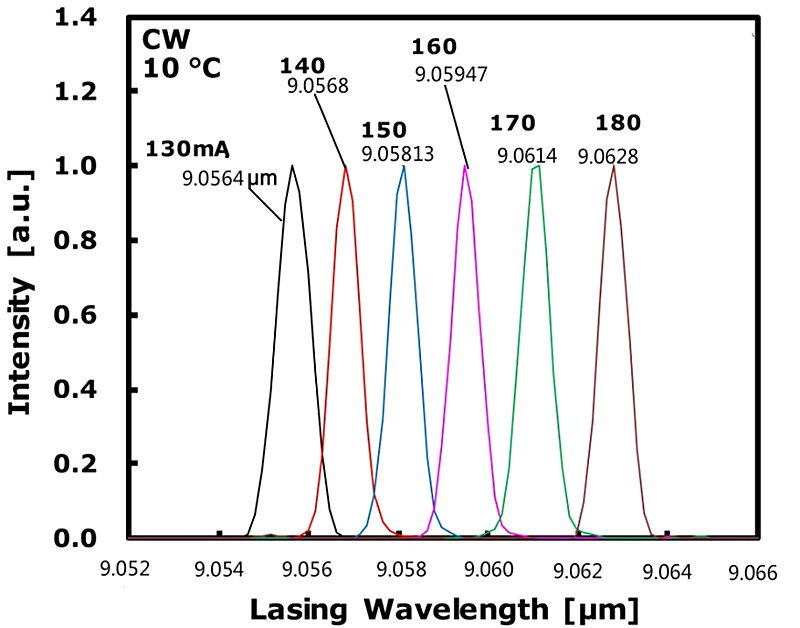

Laser spectrum (CW) laser working at 10℃

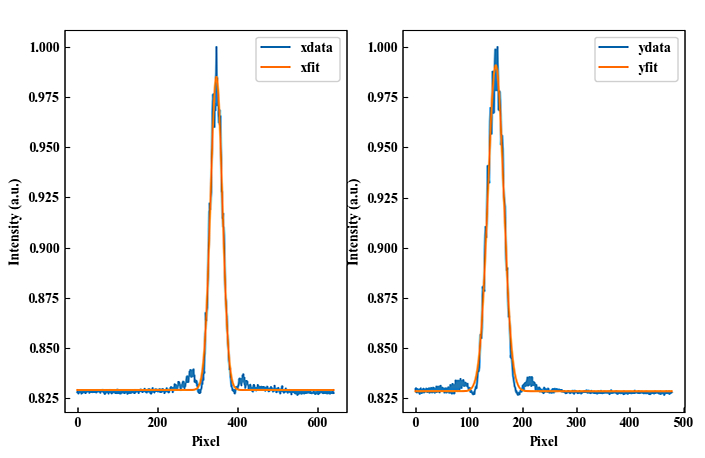

Quantum Cascade Laser Output Spot
Test Camera Pixel size = 5 μm, Gaussian fit spot diameter = 320 μm

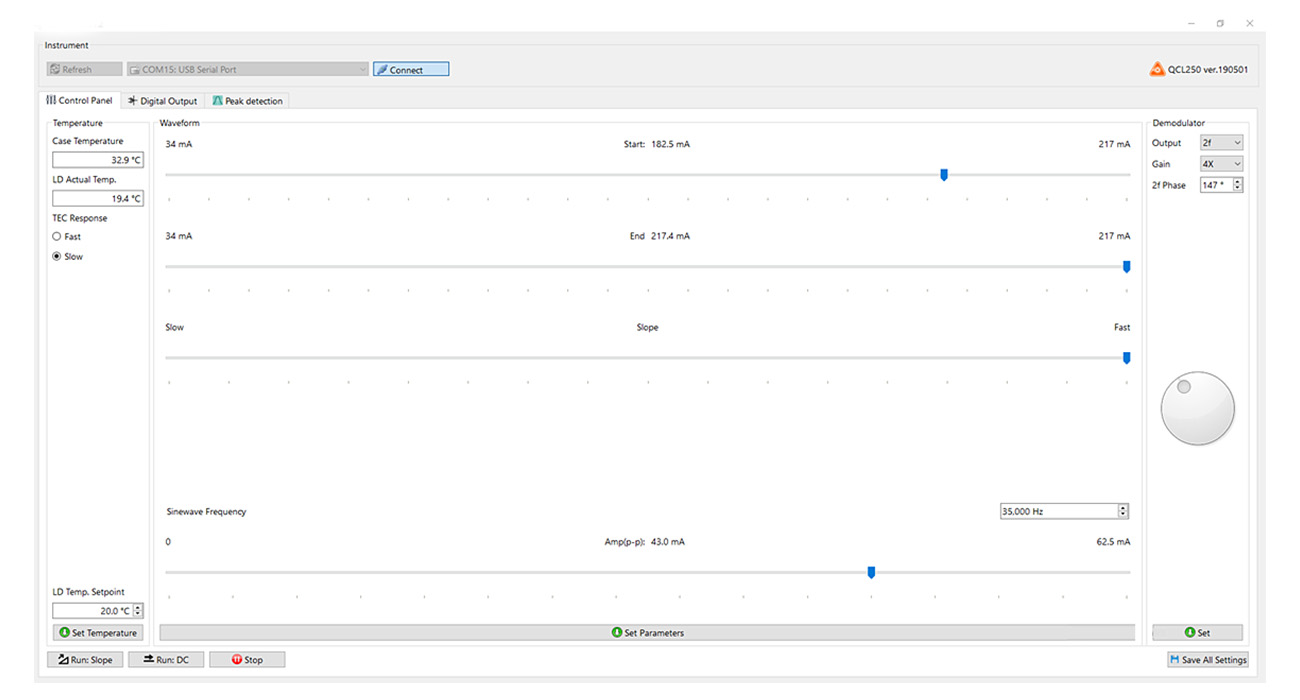

Control Software

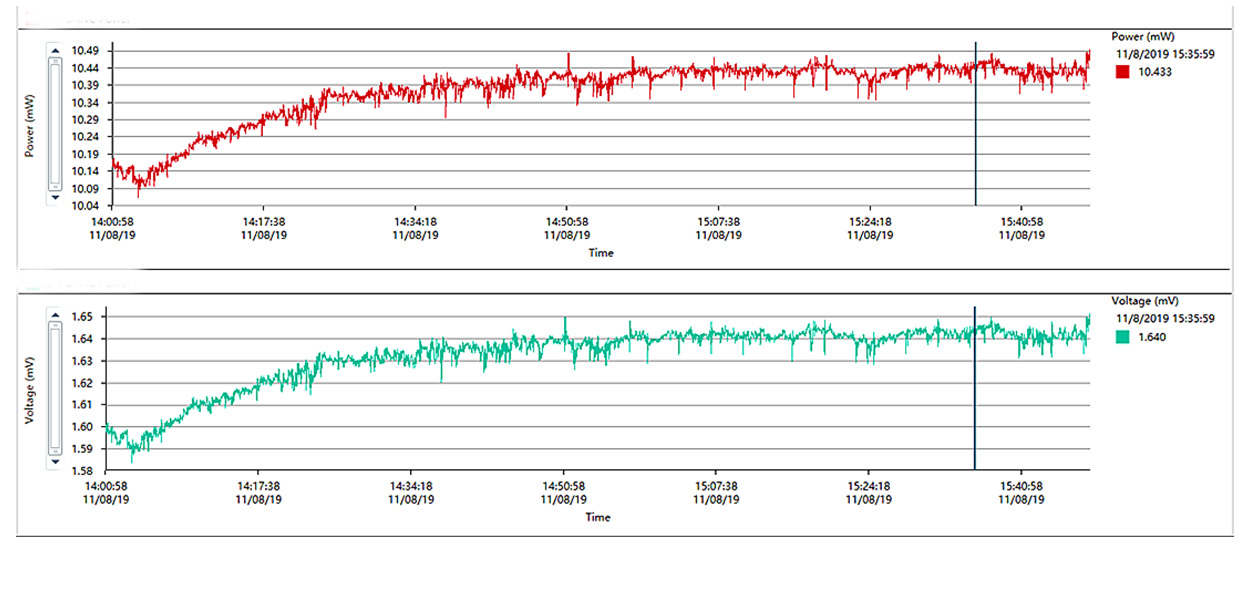

QCL Laser Power Stability Test Curve
Ordering info
MIR-QCL- W□□□□ -☆-△-XX
W□□□□:Wavelength
5260: 5260nm
7400: 7400nm
9060: 9060nm
10530: 10530nm
☆ :Collimated Output
1: With
0: Without
△:Laser Type
FP: QCL-FP
DFB: QCL-DFB
XX: Output power
001=1mw
010=10mw
020=20mw
100=100mw
1000=1000mw
