1310 nm single mode VCSEL (with TEC)

The 1310nm Vertical Cavity Surface Emitting Laser (VCSEL) is packaged in a compact coaxial housing with a single mode fiber pigtail. The VCSEL-1310-SM is designed for fiber optic sensing, laser transmitters, and optical communication applications. It requires very low drive current and can be temperature stabilized with a built-in TEC.

Product features：Low temperature dependence of electrical and optical properties、 Data rates from OC-3 to OC-48、 Low power consumption

Application area：Long-distance (>2 km) access network、 Metropolitan area network、 Gigabit Ethernet

Unit Price

Please contact customer service for a discounted quote.

Part Number

PL-VCSEL-1310-1-A81-CPSA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Photoelectric parameters:

Wavelength	1310nm +/- 10nm
Wavelength tuning range	4 nm
Threshold current	2 mAtyp.
Linewidth	0.1 nm
Forward voltage	3V
Series resistance	100 Ω typ.
Output power	0.5 mW typ.
SMSR	35 dB typ.
Rise and fall time	100 pstyp.
Monitor current	0.1 mAtyp.
Modulation bandwidth	3 GHz typ

Absolute Maximum Parameters:

Parameters	Unit	Min.	Typ.	Max.
Storage temperature	℃	-40	25	125
Chip temperature	℃	+10	25	40
Operating current	mA	0	3.0	5.0
Forward voltage	V	0.8	3.0	4.8
TEC current	mA	-150	-	+300
Soldering temperature*	℃	100	130	260
Power consumption	mw	-	-	5

(*TEC temperature must be below 150°C)

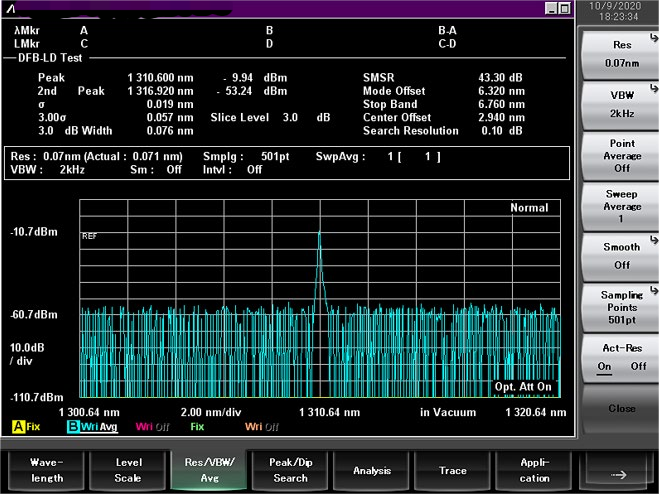

Spectrum:

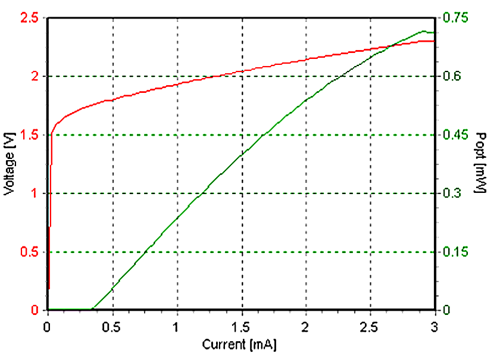

L-I Curve(T@25°C):

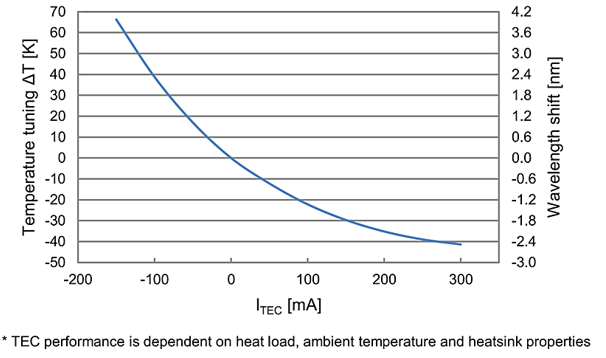

Temperature/wavelength tuning curve @TEC current:

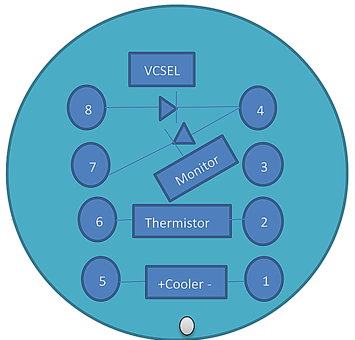

Pin definition:

1	Thermoelectric Cooler (-)	5	Thermoelectric Cooler (+)
2	Thermistor	6	Thermistor
3	N/C	7	PD Monitor Cathode (+)
4	VCSEL Cathode (‒) / PD Monitor Anode (-)	8	VCSELAnode (+)

Order Info:

PL-VCSEL-W□□□□-☆-A8▽-XXXX

□□□□：Wavelength

0760:760nm

0795:794.7nm

*****

1310：1310nm

☆ ：TEC

0：Without TEC

1：With TEC

▽：Wavelength Tolerance

1：±10nm

XXXX: Package

CPSA=Coaxial Package with SM1310+ FC/APC

CPSP=Coaxial Package with SM1310+ FC/PC

CPPP=Coaxial Package with PM Fiber+FC/PC

CPPA=Coaxial Package with PM Fiber+FC/APC
