2050nm benchtop with software control DFB light source 2mW

Idealphotonics' modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve high and stable output of the laser, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button), which can effectively help customers return to the previous working state. This is a highly integrated modular system light source, which uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser for some application fields. We have connected two modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

Product features：Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact and compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

Application area：Laser sensor、 Mode-locked fiber laser、 Ytterbium-doped fiber amplifier、 Test and measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-2050

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Driver Parameter

Parameter	Min.	Max.	Unit	Notes
Power supply voltage	100	230	VAC	Mains power
Power	5	20	W
Laser drive current	0	128	mA	Jumper optional
		266
		590
Laser drive voltage	0	3.1	V	@250mA
Response frequency	0	15	MHz	-3db
Temperature control range	0	5	℃
TEC output current	-1.5	1.5	A
TEC output voltage	-4.4	+4.4	V
Analog input (low frequency)	-2.5	2.5	V
Analog input (high frequency)	-2.5	2.5	V
PD monitoring range	0	2	mA

Laser Parameter

Parameter	symbol	Min.	Typical	Max.	Unit
Central wavelength	λ	2049	2050	2051	nm
Side mode suppression ratio	SMSR	30	40		dB
Threshold current	I_th		20	30	mA
Operating current	I_op		80	120	mA
Output power	P_f	2	3	5	mW
Current-wavelength tuning coefficient	∆λ/∆I		0.015		nm/mA
Temperature-wavelength tuning coefficient	∆λ/∆T		0.12		nm/K
Forward voltage	V_f		1.3	2	V
Thermistor	R_T	9.5	10	10.5	KΩ
Fiber type	SMF-28E
Connector type	FC/APC

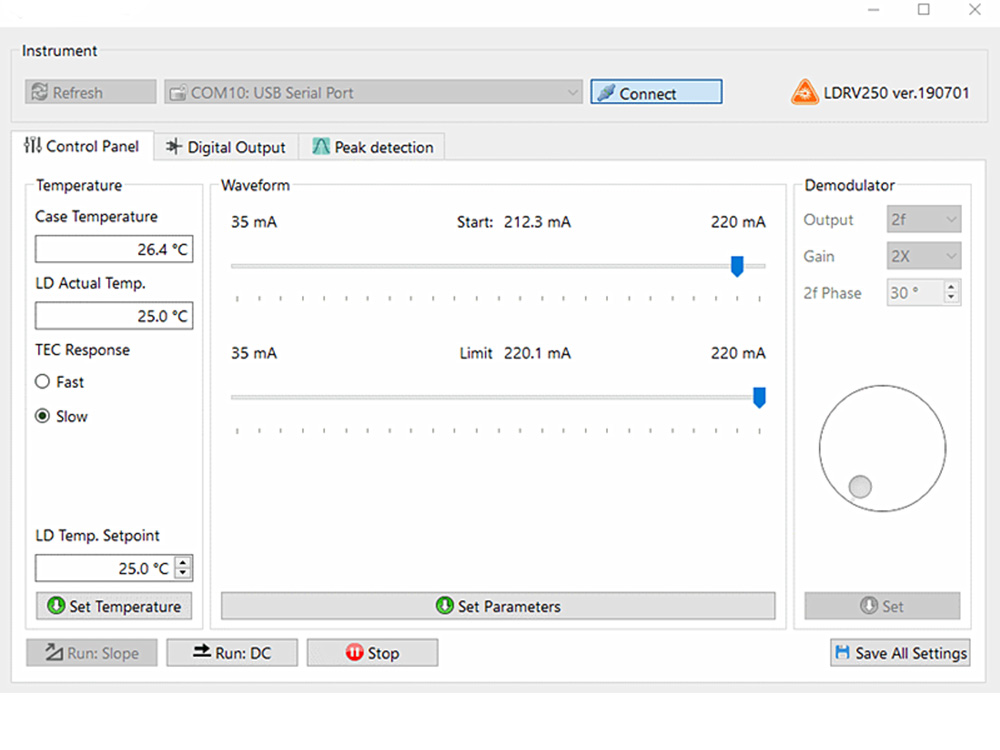

Control software interface

Note: You can customize the temperature setting protection current.

USB communication protocol, plug in three-phase mains

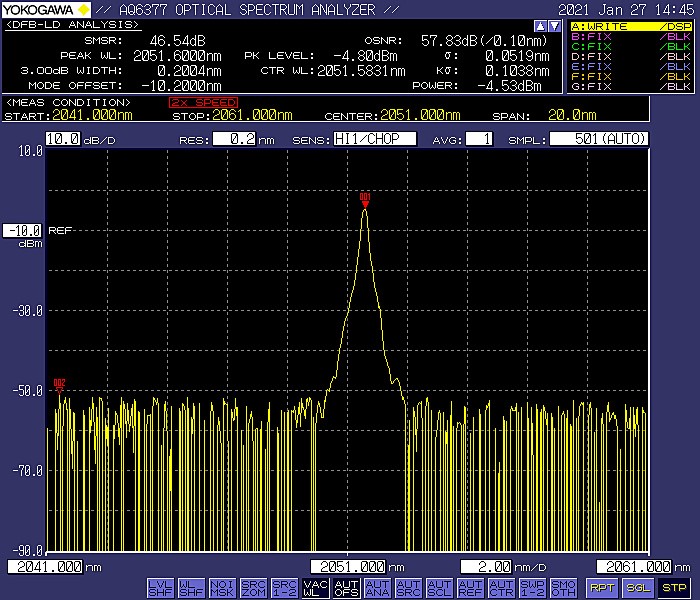

Spectral

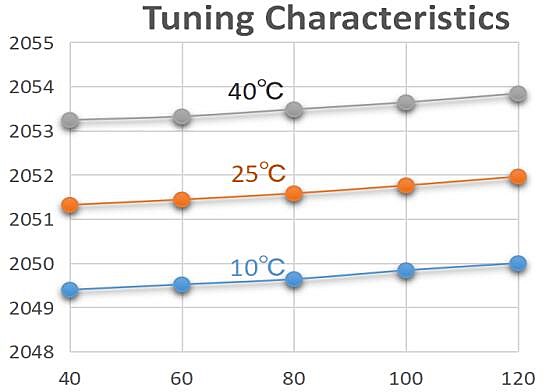

Wavelength tuning curve

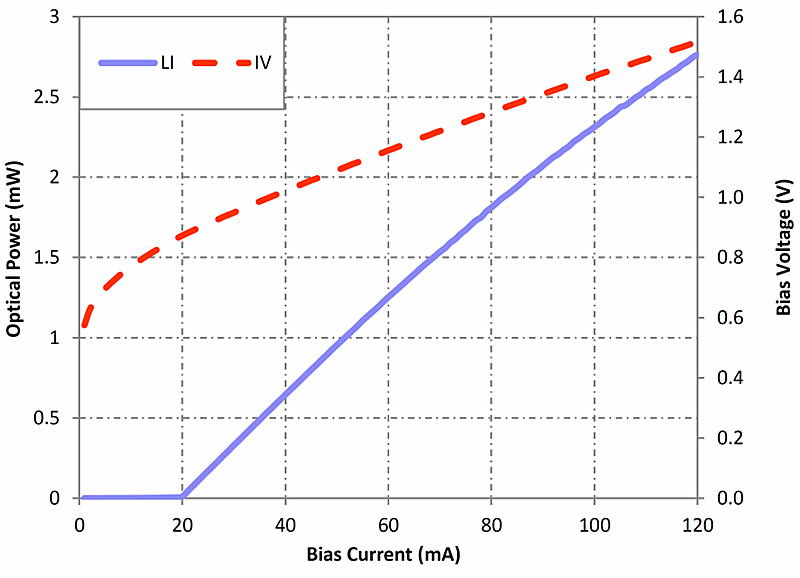

Power curve

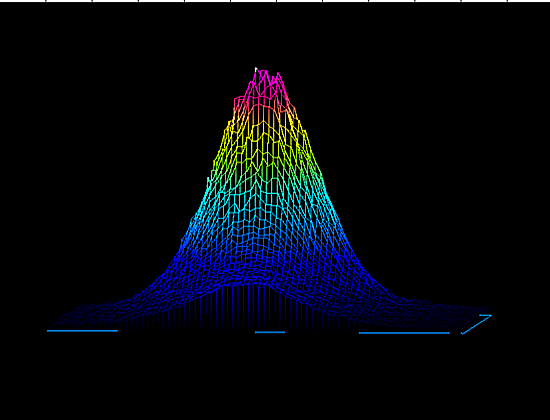

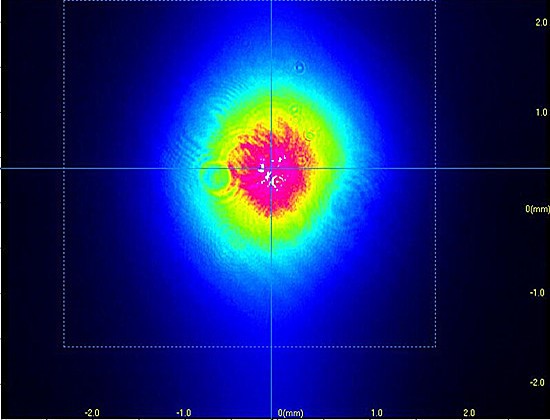

Light spot analysis

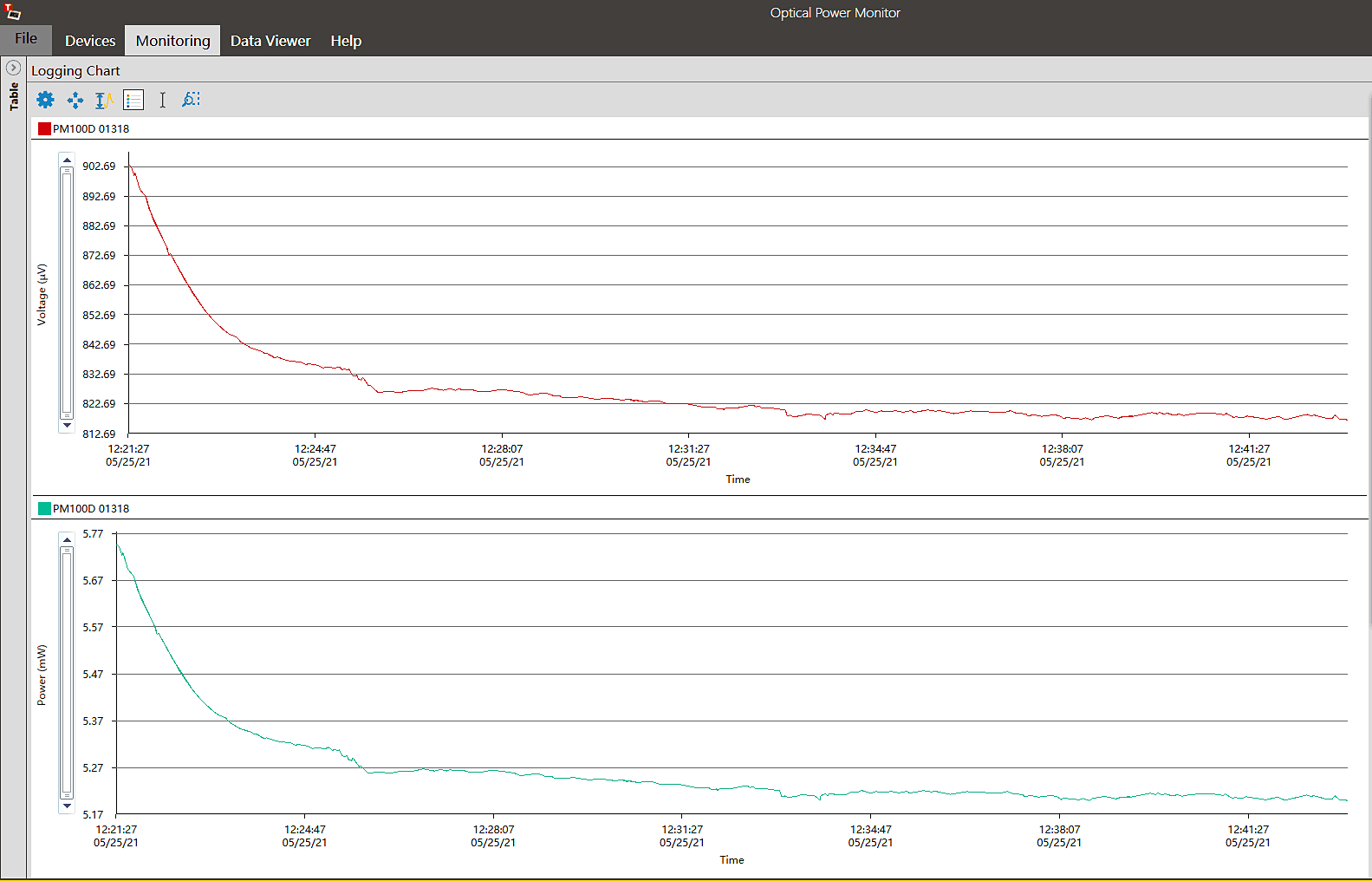

Power stability curve
