1310/1550nm Free Space Dual Stage Isolator

The fiber isolator made by Faraday rotation effect is composed of isolator core, branch fiber collimator and sleeve. External magnet tube and other components. Rotating magnetic cores with different working wavelengths can be designed according to needs. If the isolation of single-stage iron core is not enough, double-stage isolator core can also be made. Idealphotonics can provide 1310nm/1550nm free space single/double-stage isolators.

Product features：Wavelength optional 1310/1550nm、 Low insertion loss、 High isolation and high stability

Application area：Doppler laser radar、 Fiber application system、 Laboratory research、 R-OTDR fiber, OFDR fiber

Unit Price

Please contact customer service for a discounted quote.

Part Number

IDP-13/15-FSI-DS

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Indicator
Level type	/	Single stage	Dual stage
Center wavelength	nm	1310，1550，1570 or customized
Bandwidth range	nm	±15
Typical insertion loss (@23℃)	dB	≤0.10	≤0.20
Insertion loss	dB	≤0.25	≤0.40
Typical peak isolation (@23℃)	dB	≥40	≥58
Isolation (λ±15nm)	dB	≥32	≥50
Polarization mode dispersion PMD	ps	0.05
Typical crystal light cross section	dB	0.670.67，0.760.76，1.25*1.25 or customized
Carrying power	W	≤500
Part surface quality (S/D)	/	20/10
Operating temperature	℃	0~+75
Storage temperature	℃	-40~+85
Temperature cycle	PCS	500
Dual 85 test (temperature 85℃/humidity 85%)	H	500
Package inner diameter (A)/outer diameter (B)	mm	2.8/1.8，1.8/1.0 or customized
Package length (L)	mm	4.0 ,3.0 or customized

Note: ① The above data is tested at room temperature without connector.

② The product has passed reliability verification.

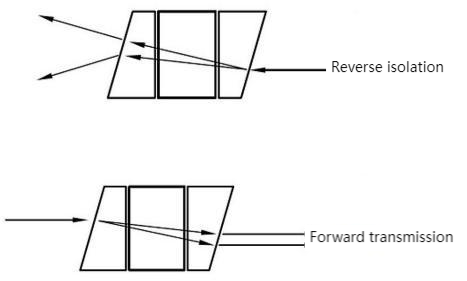

Optical Isolation Schematic

Ordering Information

Name：1310/1550nm Free Space Single/Dual Stage Isolators

PN#：IDP-W□-FSI-YY £: Wavelength

13:1310nm 15:1550nm

YY: SS:single stage DS:dual stage
