1550nm C-band ASE Modular with Broadband Light Source of 30mW (Gaussian Spectrum)

C- band ASE broadband light source (Gaussian spectrum) is a special light source developed for fiber optic gyroscope applications. The operating wavelength is in the 1550nm wavelength range, and the spectrum is close to the Gaussian shape. Through spectrum control and temperature compensation, better wavelength stability and power stability are achieved, which is very suitable for applications such as fiber optic gyroscopes.

Product features：Gaussian spectrum 、Wide temperature range 、Wider spectral range

Application area：Fiber Optic Gyroscope 、Fiber Optic Sensing 、Production Test

Unit Price

Please contact customer service for a discounted quote.

Part Number

ASE-C-GS-30-SM-M

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Optical Indicators	Unit	Typical Value	Remark

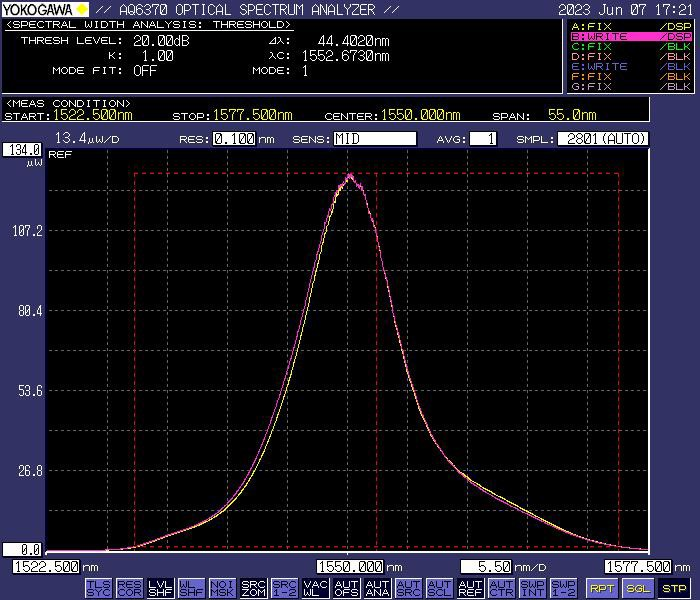

Spectral Shape	-	Gaussian
Central Wavelength	nm	1550±5
Spectral Range	nm	10	3dB Width
Output Optical Power	mW	10/20/30	Fixed power
Spectral Ripple	dB	≤0.2
Stability Over Temperature	-	≤10%	-40~70℃
stability Over Temperature	ppm	≤200	-40~70℃
Wavelength Stability at Room Temperature	ppm	≤5	30min, 25℃
OUTPUT ISOLATION	dB	>35
Polarization Degree PER	dB	≤ 0.2
Pigtail and Connector Types	-	SMF- 28	FC/APC

Electrical and Environmental Parameters	Typical Value
Control Method	RS232 serial communication
Communication Interface	DB9 Female
Operating Voltage	5V DC, <15W
Power Consumption	≤3W (when working at normal temperature); ≤5W (at startup moment)
Size	Ф84(D)×26(H)mm
Operating Temperature Range	-40~+70°C
Storage Temperature Range	-50~+80°C
Operating Humidity Range	0~70%

Ordering Information/Model
ASE	Spectral range	Output power ( mW )	Output pigtail type	Package
	C- GS	10/20/30	SM= SMF- 28	M = Module

1550nm band ASE broadband light source (Gaussian type)
