1570nm Wavelength SM Fiber Coupled Laser, 30dBm
The 1570nm single-wavelength laser adopts a high-performance butterfly semiconductor laser chip, with a professionally designed driver and temperature control circuit to ensure safe operation, stable output power, and spectral stability. It is suitable as a pump laser source for thulium-doped fiber lasers or fiber amplifiers and is available in both benchtop and module packaging.
Product features:1~10W multiple power options、 Single-mode fiber output、 Various spectral options available
Application area:Thulium-doped fiber laser、 Fiber laser、 Fiber sensing
Unit Price
Please contact customer service for a discounted quote.
Part Number
FL-1570-30-SM-B
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Parameters

Optical Specifications

Unit

Typ.

Notes

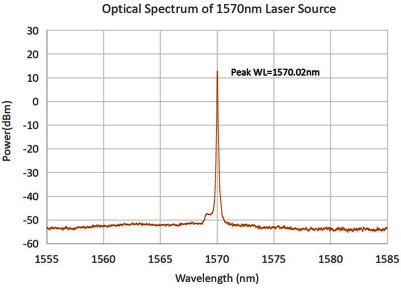

Operating Wavelength

nm

1570±1


Spectral Linewidth

nm

< 0.1


Side Mode Suppression Ratio (SMSR)

dB

>50


Operating Mode

-

CW

Continuous Wave

Output Power

dBm

10/20/30/33/37/40


Short-term Stability (15 minutes)

dB

 ±0.02

Equivalent≤±0.5%

Long-term Stability (8 hours)

dB

 ±0.05

Equivalent≤±1.2%

Pigtail Type

-

SMF-28 fiber


Pigtail Connector Type

-

FC/APC




Electrical and Environmental Parameters

Benchtop

Module

Control Mode

Button Control

RS232 Serial Communication

Communication Interface

Optional

DB9 Female

Power Supply

100~240VAC,<150W

5V DC,<60W

Dimensions

260(W)×320(D)×120(H)mm

125(W)×150(D)×20(H)mm

Operating Temperature Range

-5~+35°C

Operating Humidity Range

0~70%




Ordering info

PN#

FL

Operating wavelength(nm)

Output Power(dBm)

Output fiber tupe

Package type


1570

10/20/30/33/37/40

SM= SMF-28 PM=PM1550

B=Benchtop

M=Module

*33~40dBm  only benchtop available
