800-2600nm infrared extended InGaAs amplified photodetector, response time constant 25ns
800-2600nm infrared extended InGaAs amplified photodetector, response time constant 25ns
IdealPhotonics' InGaAs Amplified Photodetector with infrared extension covers a sensing range from 800nm to 2600nm. It features 8 adjustable gain levels for quantifiable photoelectric conversion and offers a wide dynamic range. This detector is ideal for various photoelectric development scenarios, providing excellent performance at a high cost-performance ratio. It is commonly used for near-infrared and mid-infrared light measurements.
Product features:Sensing range of 800nm to 2600nm, often used in near- and mid-infrared light measurements、 Amplified detector with 8 adjustable gain levels for quantifiable photoelectric conversion、 Wide dynamic range, suitable for various infrared photoelectric development scenarios、 Excellent performance and high cost-effectiveness、 Full technical support、 Customization available
Application area:Near- and mid-infrared light measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
PDJAA8M10
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Main Parameters



Parameters

Value

Wavelength Range

800-2600nm

800-2200nm

Response Time Constant

25ns

35ns

200ns

Gain Range

Hi-Z Load: 1.51kV/A~4.75MV/A; 50Ω Load: 0.75kV/A~2.38MV/A

Signal Amplitude

Hi-Z Load: 0~10V; 50Ω Load: 0~5V

Gain Adjustment Mode

Rotatable switch adjustment: 0~70dB, 10dB per step, 8 steps. Bandwidth is inversely proportional to gain.

NEP

1.0 × 10-12W/Hz1/2

1.0 × 10-13W/Hz1/2

2.5 × 10-14W/Hz1/2

Active Area

1mm×1mm

1mm×1mm

2mm×2mm

Sensitive Surface Depth

0.13"     (3.3  mm)

Detector Net Weight

0.10kg

Operating Temperature

10-40℃

Storage Temperature

-20-70℃

Appearance Dimensions

2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

Power Interface

Power Switch

Signal Interface

Gain Adjustment

Mounting Interface

Optical Interface

LUMBERG  R SMV3  FEMA LE

Sliding Switch

With LED Indicator

BNC Female Socket

8-Step Knob Adjustment

M4×2

SM1× 1

SM0.5 × 1


Eight-Step Quantitative Adjustable Gain Parameters



0dB

10dB

20dB

30dB

Gain (Hi-Z)

1.51× 103V /A

Gain (Hi-Z)

4.75× 103V /A

Gain (Hi-Z)

1.5 × 104V/ A

Gain (Hi-Z)

4.75× 104 V/A

Gain (50Ω)

0.75× 103V /A

Gain (50Ω)

2.38× 103V /A

Gain (50Ω)

0.75× 104V /A

Gain (50Ω)

2.38× 104 V/A

Bandwidth

13MHz

Bandwidth

1.7MHz

Bandwidth

1.1MHz

Bandwidth

300kHz

Noise(RMS)

≤258uV

Noise(RMS)

≤250uV

Noise(RMS)

≤250uV

Noise(RMS)

≤250uV

40dB

50dB

60dB

70dB

Gain (Hi-Z)

1.51× 105V /A

Gain (Hi-Z)

4.75× 105V /A

Gain (Hi-Z)

1.5 × 106V/ A

Gain (Hi-Z)

4.75× 106 V/A

Gain (50Ω)

0.75× 105V

Gain (50Ω)

2.38× 105V

Gain (50Ω)

0.75× 106V

Gain (50Ω)

2.38× 106


/A


/A


/A


V/A

Bandwidth

90kHz

Bandwidth

28kHz

Bandwidth

9kHz

Bandwidth

3kHz

Noise (RMS)

≤250uV

Noise (RMS)

≤250uV

Noise (RMS)

≤300uV

Noise (RMS)

≤400uV

Signal Offset

±8mV(Typ.) , ±12mV(Max)

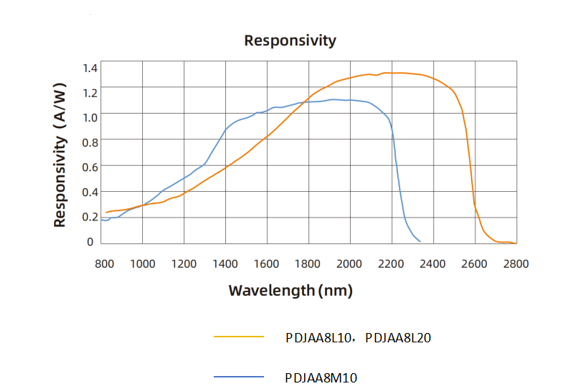

Response Curve

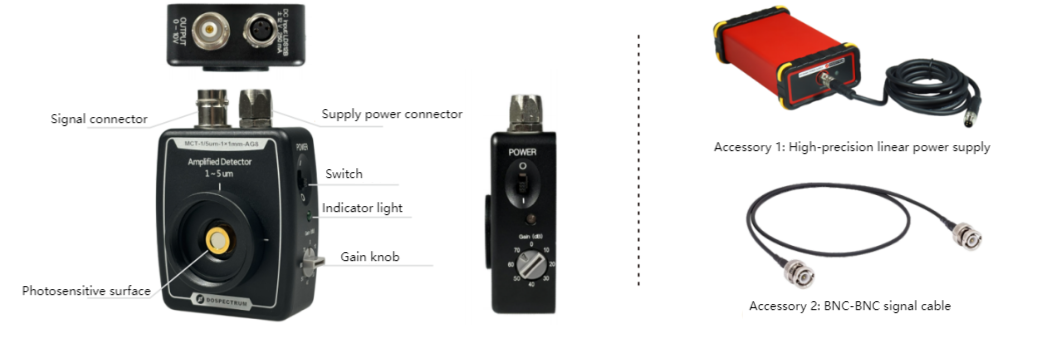

Product Configuration



Attachment 1: Optional Configuration Table



Infrared Extended InGaAs Amplified Photodetector

Optional Configurations

Product Name

Material

Type

Features

Wavelength Range Photosensitive Area

Reserved Optional Configurations

PD: "Photodetector"

J: InGaAs (Indium Gallium Arsenide)

A: Amplified Type

A: Adjustable Gain

8M10 :800-2600nm ,1mm × 1mm






8L10 800-2200nm 1mm× 1mm






8L20 800-2200nm 2mm× 2mm




Attachment 2: Model and Part Number Cross Reference Table

Model

Part Number

Specs

PDJAA8M10

A80153457

800-2600nm infrared extended InGaAs photodetector, light-sensitive size 1mm×1mm, 0~70 dB eight-level quantitative adjustable gain, response time constant 25ns

PDJAA8L10

A80153458

800-2200nm infrared extended InGaAs photodetector, light-sensitive size 1mm×1mm, 0~70 dB eight-level quantitative adjustable gain, response time constant 35ns

PDJAA8L20

A80153459

800-2200nm infrared extended InGaAs photodetector, light-sensitive size 2mm×2mm, 0~70 dB eight-level quantitative adjustable gain, response time constant 200ns
