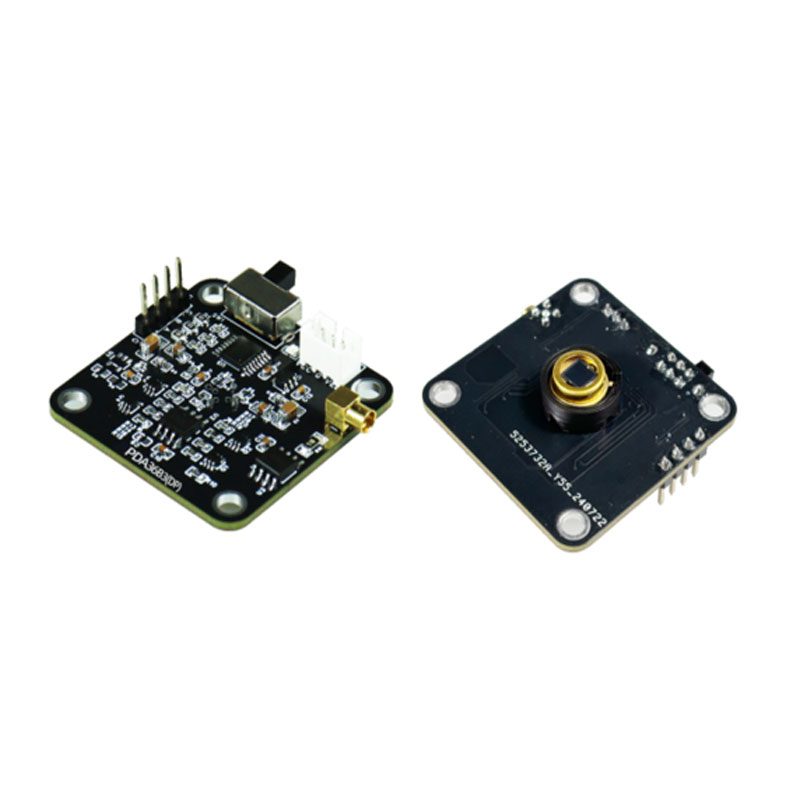

350-1100nm Silicon-Based Photodetector with Amplification

IdealPhotonics' silicon-based amplified photodetector has a sensitive range of 350nm~1100nm, 8 levels of programmable adjustable gain, can achieve quantitative photoelectric conversion, and has a wide dynamic range. It is suitable for various optoelectronic development scenarios. 100% of the devices are domestically produced, with excellent performance and high cost performance. It provides all-round technical support and is often used in visible light and near-infrared light measurement.

Product features：The photosensitive range covers 350nm~1100nm, and is often used for visible light and near-infrared light measurement、 Amplified detector, programmable 8-level adjustable gain, quantitative photoelectric conversion、 Wide dynamic range, suitable for various photoelectric development scenarios、 100% of the devices are domestically produced、 Excellent performance, high cost performance, all-round technical support、 Provide non-standard customization services

Application area：Visible and near-infrared light measurements

Unit Price

Please contact customer service for a discounted quote.

Part Number

PDSAA3E36C

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General Parameters

Parameter	Value
Wavelength Range	350-1100nm
Photosensitive size	3.6mm×3.6mm
Peak wavelength	970nm (Typ.)
Amplifier GBP	230MHz
Bandwidth Range	DC ～6.7MHz
Gain Range	Hi-Z Load: 1.5kV/A～4.7MV/A; 50Ω Load: 0.75kV/A～2.35MV/A
Signal Amplitude	Hi-Z Load: 0～10V; 50Ω Load: 0V～5V
Gain Adjustment	Programmable adjustment, 8 levels in total. Bandwidth is inversely proportional to gain.
Photodetector Depth	0.06" (1.5 mm)
Detector Weight	0.01kg
Operating Temperature	10-40℃
Storage Temperature	-20-70℃
Dimensions	1.47" X 1.47" (37.34mm X 37.34mm)
Power Interface	Power Switch	Signal Interface	Gain Adjustment
XH2.54mm 3Pin port	Slide switch With LED indicator	MMCX-KWE female elbow	Programmable adjustment

8-Step Adjustable Gain Parameters：

0		1		10		11
Gain (Hi-Z)	1.5× 10³V/ A	Gain (Hi-Z)	4.7× 10³V /A	Gain (Hi-Z)	1.5 × 10⁴V/ A	Gain (Hi-Z)	4.7× 10⁴V/A
Gain (50Ω)	0.75× 10³V/ A	Gain (50Ω)	2.35× 10³V /A	Gain (50Ω)	0.75× 10⁴V /A	Gain (50Ω)	2.35× 10⁴ V/A
Bandwidth (BW)	6.7MHz	Bandwidth (BW)	920KHz	Bandwidth (BW)	600KHz	Bandwidth (BW)	160kHz
Noise (RMS)	258uV	Noise (RMS)	192uV	Noise (RMS)	207uV	Noise (RMS)	211uV
100		101		110		111
Gain (Hi-Z)	1.5× 10⁵V/	Gain (Hi-Z)	4.7× 10⁵V	Gain (Hi-Z)	1.5 × 10⁶V/	Gain (Hi-Z)	4.7× 10⁶
	A		/A		A		V/A
Gain (50Ω)	0.75× 10⁵V/ A	Gain (50Ω)	2.35× 10⁵V /A	Gain (50Ω)	0.75× 10⁶V /A	Gain (50Ω)	2.35× 10⁶ V/A
Bandwidth (BW)	54MHz	Bandwidth (BW)	19MHz	Bandwidth (BW)	5kHz	Bandwidth (BW)	1.7kHz
Noise (RMS)	214uV	Noise (RMS)	234uV	Noise (RMS)	277uV	Noise (RMS)	388uV
Signal Bias	±8mV(Typ.) ， ±12mV(Max)

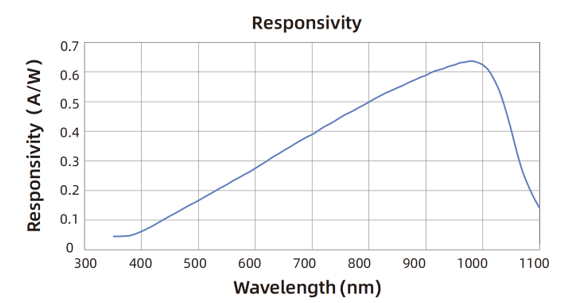

SI Response Curve：

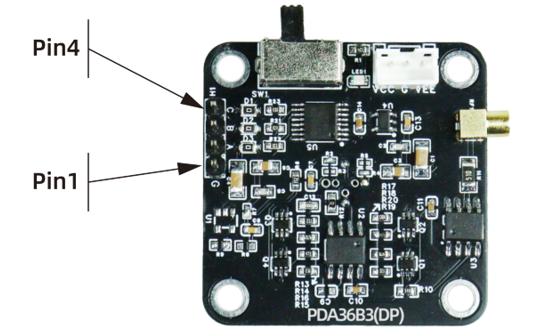

Pin Definition

Pin Definition
Pin 1	GND
Pin 2	A
Pin 3	B
Pin 4	C
	Note: Pin2, Pin3, Pin4: A, B, C are used to adjust the gain.

Pin Definition	C	B	A
1.5×103V/A	0	0	0
4.7×103V/A	0	0	1
1.5×104V/A	0	1	0
4.7×104V/A	0	1	1
1.5×105V/A	1	0	0
4.7×105V/A	1	0	1
1.5×106V/A	1	1	0
4.7×106V/A	1	1	1

Attachment 1: Optional Configuration Table

Silicon-Based Amplified Photodetector

Optional Configurations

Product Name

Material

Type

Feature

Wavelength Range Photodetector Size

Reserved Optional Configurations

PD:"Photodetector"

S: Si Silicon

A: Amplified

A: Adjustable Gain

3E36：350-1100nm ，3.6 ×3.6

Devices are made in China: C

Attachment 2：Model Number and Part Number Correspondence

PN#	NO.	Specs
PDSAA3E36C	A80153460	350-1100nm Silicon-based Amplified Photodetector, Active area 3.6 × 3.6 mm,Programmable eight-speed quantitative adjustable gain, bandwidth range DC ~ 6.7MHz.
