Parameter
Parameter | Unit | PN# | ||
AOM100-1310-1(X) | AOM150-1310-1(X) | AOM200-1310-1(X) | ||
Material | - | Tellurium oxide | ||
Wavelength | nm | 1310 | ||
Laser power | W | ≤0.5 | ||
Pulse laser peak power | KW | ≤1(5KW custom) | ||
Insertion loss | dB | ≤3 | ≤4 | ≤5 |
Extinction ratio | dB | ≥50 | ||
Polarization extinction ratio (applicable to polarization-maintaining devices) | dB | ≥20 | ||
Voltage standing wave ratio | 1 | ≤1.2:1 | ||
Light pulse rise time | ns | 40 | 20 | 12 |
Operating frequency | MHz | 100 | 150 | 200 |
Fiber type | - | Single mode or polarization maintaining | ||
Fiber connector | - | FC/APC | ||
Appearance structure | - | Figure A | ||
Driver | D100-02-M-1D | D150-02-M-1D | D200-02-M-1D |
Driver parameter | Unit | PN# | ||
D100-02-M-1D | D150-02-M-1D | D200-02-M-1D | ||
Operating frequency | MHz | 100 | 150 | 200 |
Drive power | W | ≤2.5 | ≤3 | ≤3 |
Electric pulse rise time | ns | ≤20 | ≤15 | ≤7.5 |
Power switching ratio | dB | ≥55 | ||
Power supply voltage (DC) | V | 24 | ||
Harmonic suppression | dBc | ≥25 | ||
Modulation mode | - | TTL | ||
Output impedance | Ω | 50 | ||
Appearance structure | - | Figure B |

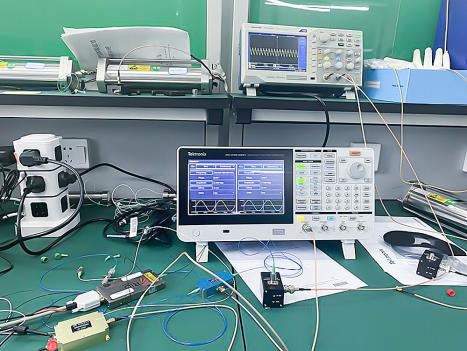

Test system diagram
RIO Narrow linewidth laser, 1310nm PM AOM, EOT 2.5G photoelectric detector.
Modulation Curve

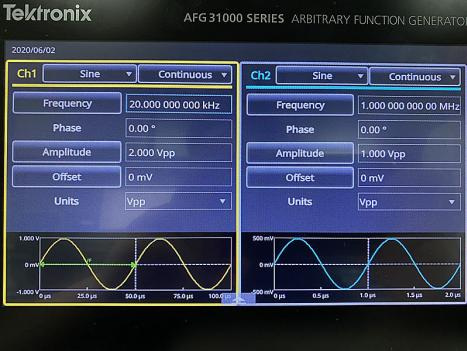

1.The modulation signal applied to the AOM by the signal generator

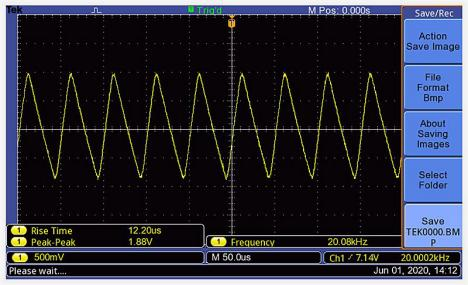

2. The oscilloscope displays the voltage signal output by the detector
