Parameters
Parameter | Unit | PN# | ||
AOM100-1550-1(X) | AOM150-1550-1(X) | AOM200-1550-1(X) | ||
Material | - | TeO2 | ||
Wavelength | nm | 1550 | ||
Maximum Laser Power | W | ≤0.5 | ||
Maximum Pulse Laser Peak Power | KW | ≤1(5KW Custom) | ||
Insertion Loss | dB | ≤3 | ≤4 | ≤5 |
Extinction Ratio | dB | ≥50 | ||
Polarization Extinction Ratio (for polarization-maintaining devices) | dB | ≥20 | ||
Voltage Standing Wave Ratio | 1 | ≤1.2:1 | ||

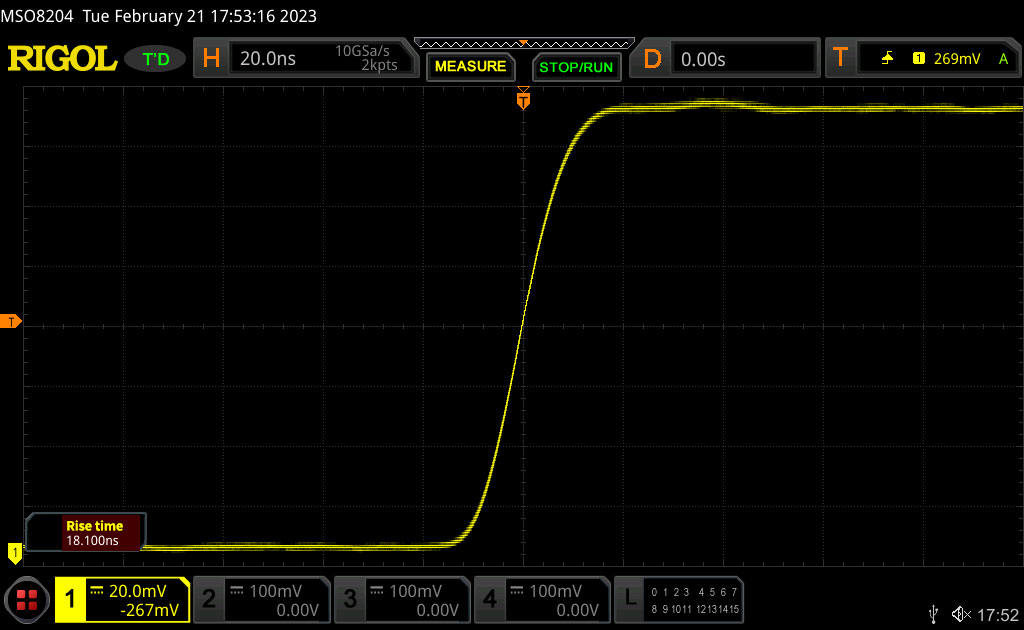

Optical Pulse Rise Time | ns | 40 | 20 | 12 |
Operating Frequency | MHz | 100 | 150 | 200 |
Fiber Type | - | SM or PM | ||
Fiber Connector | - | FC/APC | ||

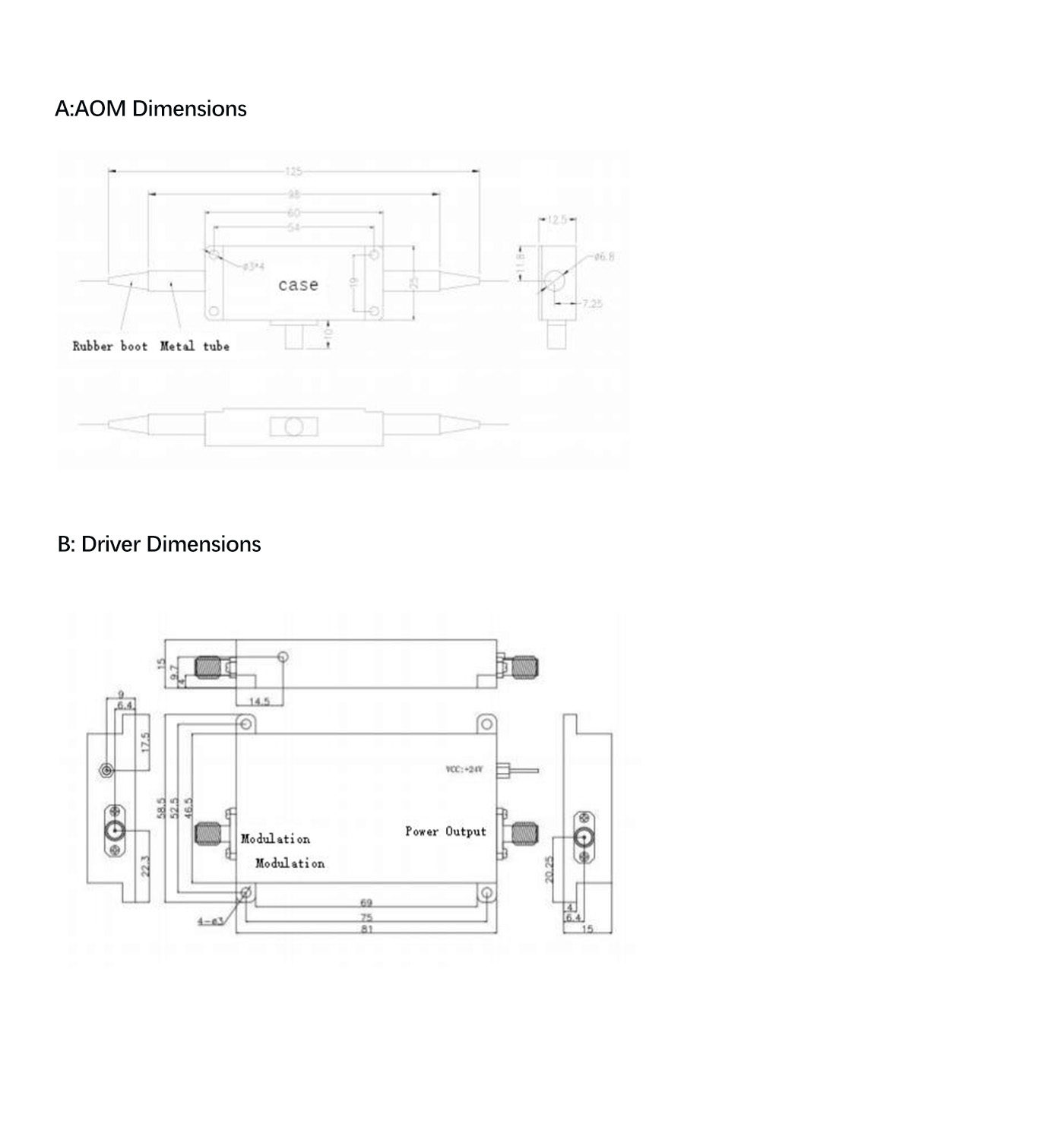

Structure | - | Figure A | ||
Driver | D100-02-M-1D | D150-02-M-1D | D200-02-M-1D |
Driver
Parameter | Unit | PN# | ||
D100-02-M-1D | D150-02-M-1D | D200-02-M-1D | ||
Operating Frequency | MHz | 100 | 150 | 200 |
Drive Power | W | ≤2.5 | ≤3 | ≤3 |
Electrical Pulse Rise Time | ns | ≤20 | ≤15 | ≤7.5 |
Power Switching Ratio | dB | ≥55 | ||
Power Supply Voltage (DC) | V | 24 | ||
Harmonic Suppression | dBc | ≥25 | ||
Modulation Method | - | TTL | ||
Output Impedance | Ω | 50 | ||
Shape Structure | - | Figure B |

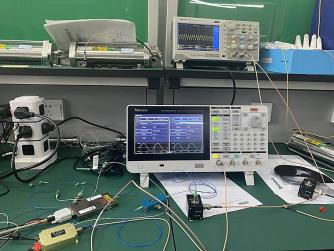

Test Diagram
(RIO's narrow linewidth laser, 1550nm PM acousto-optic modulator, EOT 2.5G photodetector)

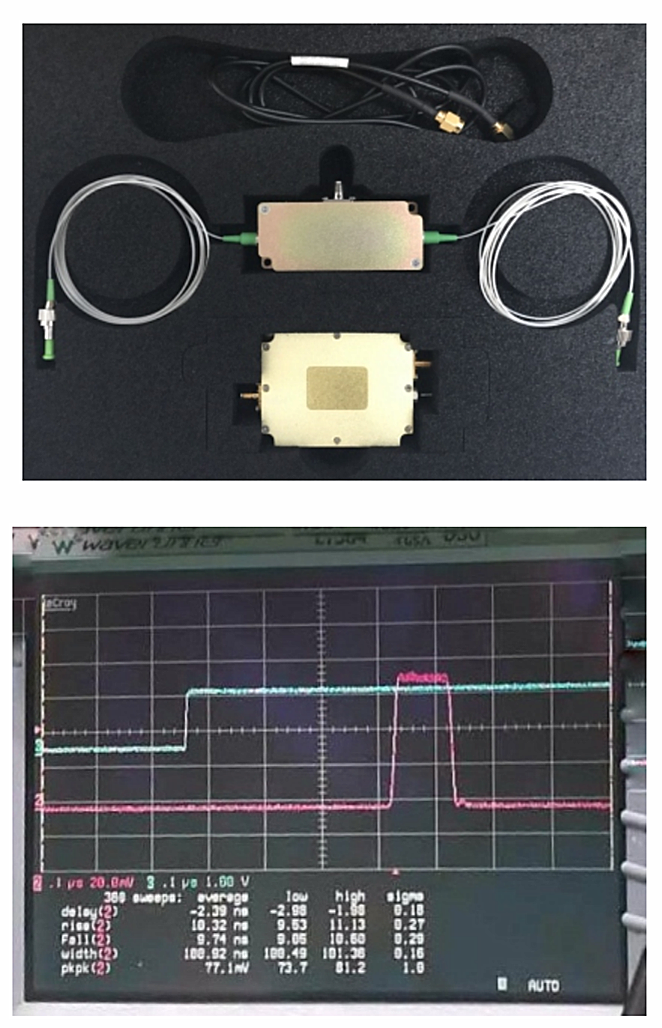

Modulation Curve

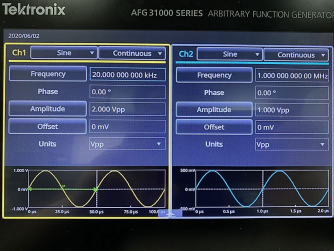

1. The modulation signal applied to the AOM by the signal generator:

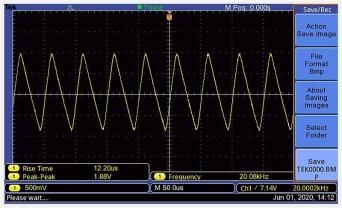

2. The oscilloscope displays the voltage signal output from the detector:
