852nm 40mW DFB single mode laser diode (high coherence laser source)

Idealphotonics' 852nm DFB laser diode is a cost-effective, high-coherence laser light source. The DFB laser diode chip is packaged in an industry-standard 14-pin butterfly package with built-in TEC and PD. Our specialized design is suitable for operation at room temperature. Our diodes have good performance at 20℃-30℃.

Product features：Narrow linewidth <2MHz High output power、 Good wavelength stability、 Industry standard 14-pin butterfly package、 No mode hop、 Excellent reliability

Application area：Tunable laser absorption spectroscopy technology、 Seed laser、 Fiber laser

Unit Price

Please contact customer service for a discounted quote.

Part Number

PL-DFB-852-A-A81-SA-R

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit
Central wavelength	λ	851.5	852	852.5	nm
Side mode suppression ratio	SMSR	30	40		dB
Threshold current	I_th		20	30	mA
Operating current	I_op		120	150	mA
Operating temperature	T_op	20	25	30	℃
Output power	P_f	10	30	50	mW
Quantum efficiency	η	0.08	0.12		mW/mA
Current tuning coefficient	∆ λ/∆I		0.015		nm/mA
Temperature tuning coefficient	∆ λ/∆T		0.12		nm/K
Forward voltage	V_f		1.3	2	V
Thermistor	R_T	9.5	10	10.5	KΩ
Thermistor temperature coefficient			-4.4		%/°C
Connector		FC/APC

Note: Applicable to working at 20℃ -30℃.

Absolute Maximum Parameters

Parameter	Symbol	Min.	Typical	Max.
Case temperature	℃	-5	25	70
Chip temperature	℃	+10	25	40
Operating current	mA	0	150	200
Forward voltage	V	0.8	1.2	2.0
TEC current	V	-	-	3.0
TEC voltage	A	-	-	4.0
Reverse voltage (LD)	V	-	-	2.0
Reverse voltage (PD)	V	-	-	20

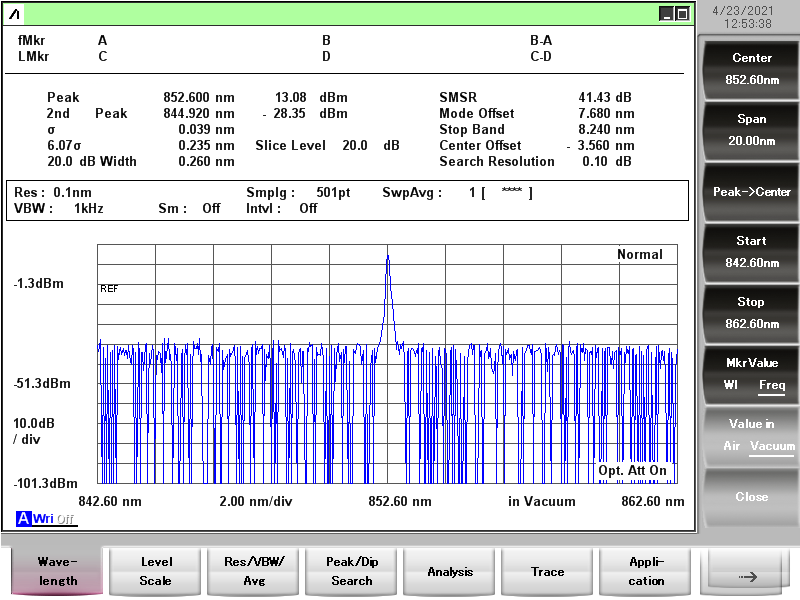

Spectrum

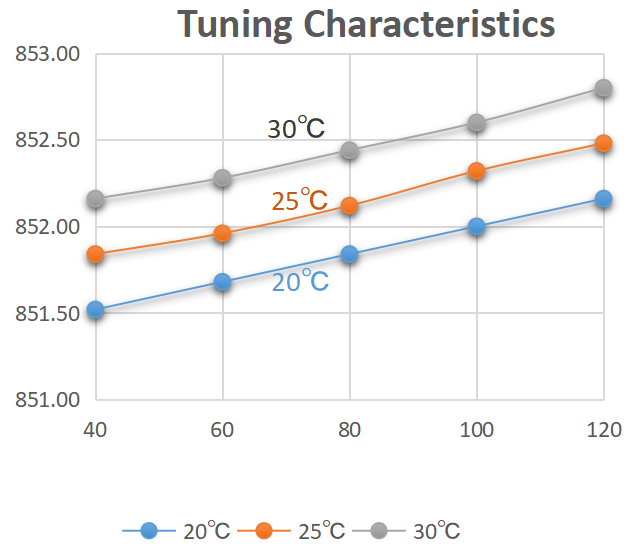

Wavelength tuning curve

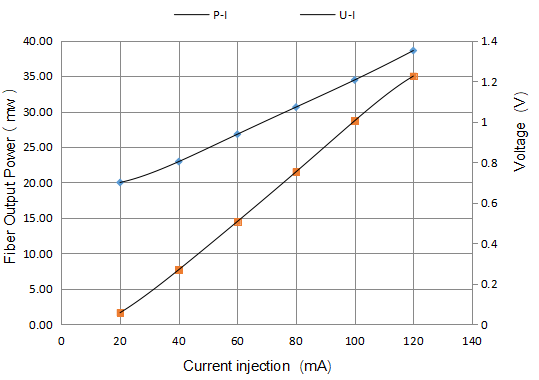

Power curve

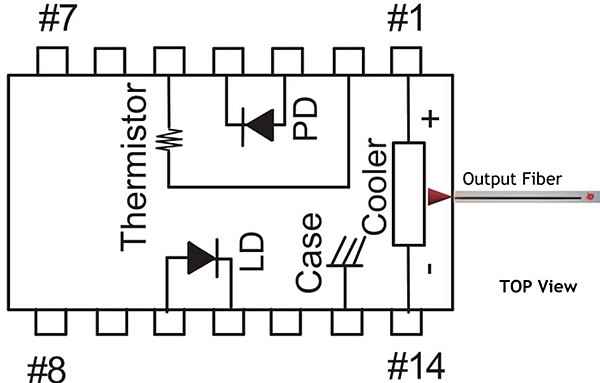

Pin definition

1	Thermoelectric Cooler (+)	8	N/C
2	Thermistor	9	N/C
3	PD Monitor Anode (-)	10	Laser Anode (+)
4	PD Monitor Cathode (+)	11	Laser Cathode (-)
5	Thermistor	12	N/C
6	N/C	13	Case Ground
7	N/C	14	Thermoelectric Cooler (-)

Ordering Information

PL-DFB -□□□□-☆-A8▽-XX-R（R represents room temperature）

□□□□：wavelength

852: 852nm

1532：1532nm

1392：1392nm

1512：1512nm

1567: 1567nm

*****

1653.7: 1653.7nm

☆ : output power

☆A：40mW

☆B：70mW

▽：wavelength tolerance

1：±1nm

2：±2nm

XX：fiber and connector type

SA=HI780+ FC/APC

SP=HI780+ FC/PC

PA=PM980 fiber+FC/APC

PP=PM980 fiber+FC/PC

Product Recommendation
