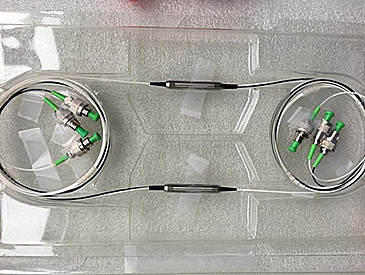

830/1310nm Single Mode Three Port WDM

Three-port wavelength division multiplexer, namely FWDM, is also called 3-wavelength wavelength division multiplexer, also known as three-wavelength filter wavelength division multiplexer. Three-wavelength wavelength division multiplexer refers to a wavelength division multiplexing device that fixes three specific wavelengths (1310/1490/1550). Because wavelength division multiplexers with other wavelengths are more widely used, the industry directly calls 3-wavelength wavelength division multiplexers FWDM. F stands for Filter, which means filtering. FWDM is filter-type wavelength division multiplexing. In the optical fiber communication network, this three-port wavelength division multiplexer can be used to achieve two-way transmission of voice, video, and data. The three-port wavelength division multiplexer adopts the packaging that combines the filter principle and the collimator principle, and can customize any three wavelengths. The so-called FWDM directly refers to the wavelength division multiplexer with three wavelengths of 1310/1490/1550. All devices provided by Idealphotonics have undergone 24-hour high and low temperature cycle and drop tests, and the product quality is reliable and stable.

Product features：Good working bandwidth、 Low-loss FWDM channel isolation、 High stability and reliability、 FWDM optical path glue-free process

Application area：Fiber optic communication system、 Optical equipment、 Optical amplifier、 Transmission and fiber laser、 System monitoring program

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-WDM-W8313-1-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameter	Unit	Indicator	Testing date
Transmission wavelength	nm	1310	1310
Transmission end insertion loss	dB	≤1.3	0.8
Reflection wavelength	nm	830	830
Reflection end insertion loss	dB	≤1.1	0.86
Transmission end isolation	dB	≥30	30
Reflection end isolation	dB	≥13	13
PDL	dB	≤0.15	0.01
Return loss	dB	≥45	52
Directivity	dB	≥50	55
Interface type		FC/APC
Fiber type		900um loose tube，HI780
Fiber length	m	>0.8
Operating power	mW	≤300
Operating temperature	℃	0-+70
Storage temperature	℃	-40-+85
Dimensions	mm	5.5X35

Ordering Information

Product model: NIR-WDM-W8313-1-9-SA

Operating wavelength: 830/1310nm 1m pigtail length

900um loose tube

Fiber type: HI780

Interface type: FC/APC
