KHz ultra-Narrow Linewidth High-Power DFB Module 1550nm 60mW

These are Idealphotonics' narrow linewidth DFB laser modules with excellent performance and excellent reliability (in compliance with Telcordia GR-486 specification). Up to 100mW output power, very low relative intensity noise (RIN), ultra-low phase noise and narrow linewidth, high wavelength stability and low frequency jitter. Our low noise and narrow linewidth make this semiconductor optical solution ideal for a wide range of applications where accuracy, lifetime reliability under harsh field conditions and high resolution are critical, such as fiber and solid-state laser seed sources, second harmonic generation (SHG), optical parametric oscillators (OPO), laser spectroscopy, LiDAR and other precision metrology applications.

Product features：Single longitudinal mode、 Ultra-low phase noise and relative intensity noise (RIN)、 Low sensitivity to vibration and noise、 Narrow linewidth (<100 kHz), long coherence length、

Application area：Acoustic and seismic sensing、 Defense and Security、 Oil and Gas Exploration and Production、 LiDAR and Remote Sensing、 Interferometric Fiber Optic Sensing、

Unit Price

Please contact customer service for a discounted quote.

Part Number

SCL0-DFB-1550-F-A81-L01-M0-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Parameter	Value	Unit
Output Power	10- 60	mW
Central Wavelength (ITU Grid and Custom)	1535-1590,1635-1685	nm
Thermal wavelength tuning range	30	pm
Relative intensity noise, ≥500KHz	shot noise limit	dB/Hz
Polarization extinction ratio (polarization-maintaining fiber)	≥20	dB
FM bandwidth (high frequency)	DC- 10	MHz
Operating temperature	0 ~ +70	℃
Optical Isolation	≥40	dB

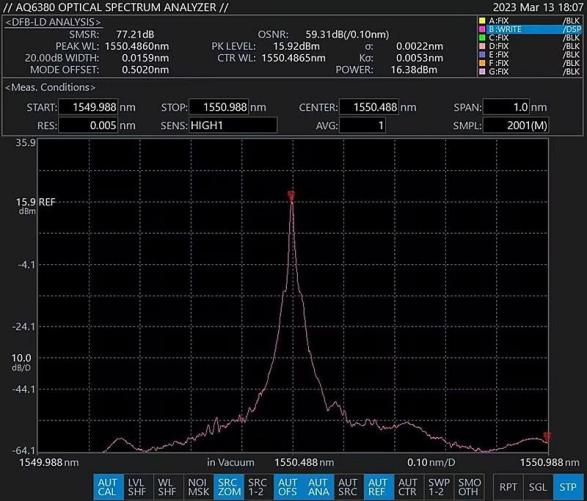

Test spectrum

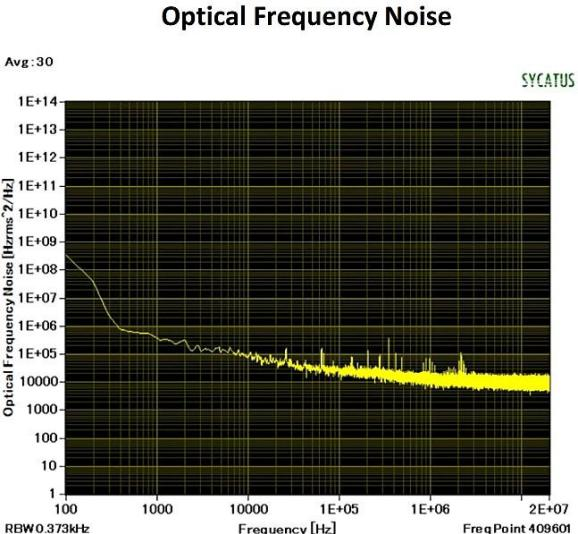

Phase Noise Curve

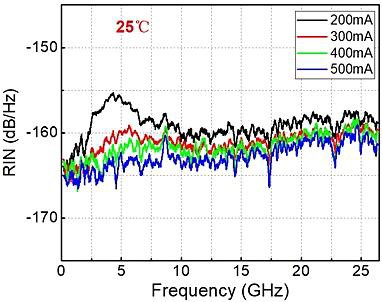

Intensity Noise Curve

Model Description

SCL0-DFB-□□□□-☆-A8▽-L□□-M□- XX

□□□□: Wavelength

1018:1018nm

1530.33:1530.33nm

1550.12: 1550.12nm

*****

1700: 1700nm

1735:1735nm

1742:1742nm

☆: Output Power

A: 10mW

B: 20mW

C: 30mW

D: 40mW

E: 50mW

F: 60mW

G: 80mW

H: 100mW

▽: Wavelength Tolerance

1: ±1nm

2: ±2nm

3: ±10nm

L□□: Linewidth

01: Grade 1 ≤100KHZ

02: Grade 2 ≤200KHZ

03: Grade 3 ≤500KHZ

04: Grade 4 ≤3000KHZ

M□: Modulation

0: CW

1: External Modulation

XX: Fiber and Connector Type

SA=SM Fiber+ FC/APC

SP=SM Fiber+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC

Parameter	Grade 1	Grade 2	Grade 3	Grade 4	Unit
Linewidth	≤100	≤200	≤500	≤3000	KHz

Level 1 (line width ≤ 100KHZ) table

Wavelength (nm)	Linewidth (KHZ)	Tuning Range (n m)	Power (mW)
1535	Typical 75KHZ	2-3	80-100mW
1540	Typical 75KHZ	2-3	80-100mW
1545	Typical 75KHZ	2-3	80-100mW
1550	Typical 75KHZ	2-3	80-100mW
1555	Typical 75KHZ	2-3	80-100mW
1560	Typical 75KHZ	2-3	80-100mW
1565	Typical 75KHZ	2-3	80-100mW
1570	Typical 75KHZ	2-3	80-100mW
1575	Typical 75KHZ	2-3	80-100mW
1580	Typical 75KHZ	2-3	80-100mW
1585	Typical 75KHZ	2-3	80-100mW
1590	Typical 75KHZ	2-3	80-100mW
1635	Typical 95KHZ	2-3	80-100mW
1640	Typical 95KHZ	2-3	80-100mW
1650	Typical 95KHZ	2-3	80-100mW
1660	Typical 95KHZ	2-3	80-100mW
1670	Typical 95KHZ	2-3	80-100mW
1680	Typical 95KHZ	2-3	80-100mW

We can provide any narrow linewidth DFB module secondary (linewidth ≤ 200KHZ) with center wavelength between 1535-1590nm and 1635-1685nm

Wavelength (nm)	Linewidth (KHZ)	Tuning Range (n m)	Power(mW)
1260	Typical 170KHZ	2-3nm	40-60mW
1270	Typical 170KHZ	2-3nm	40-60mW
1280	Typical 170KHZ	2-3nm	40-60mW
1290	Typical 170KHZ	2-3nm	40-60mW
1300	Typical 170KHZ	2-3nm	40-60mW
1310	Typical 170KHZ	2-3nm	40-60mW
1320	Typical 170KHZ	2-3nm	40-60mW
1520	Typical 150KHZ	2-3nm	40-50mW
1530	Typical 150KHZ	2-3nm	40-50mW
1540	Typical 150KHZ	2-3nm	40-50mW
. *	Typical 150KHZ	2-3nm	40-50mW
1700	Typical 150KHZ	2-3nm	40-50mW
1735	Typical 150KHZ	2-3nm	40-50mW
1742	Typical 150KHZ	2-3nm	40-50mW

We can provide any narrow linewidth DFB module with a central wavelength between 1520-1700nm 4-level (linewidth ≤ 3MHZ) table

Wavelength (nm)	Linewidth (MHZ)	Tuning Range (nm)	Power (mW)
760	Typical 3MHZ	2-3nm	10-20mW
972	Typical 3MHZ	2-3nm	40-60mW
976	Typical 3MHZ	2-3nm	40-60mW
980	Typical 3MHZ	2-3nm	40-60mW
1018	Typical 3MHZ	2-3nm	40-60mW
1030	Typical 3MHZ	2-3nm	40-60mW
1038	Typical 3MHZ	2-3nm	40-60mW
1050	Typical 3MHZ	2-3nm	40-60mW
1064	Typical 3MHZ	2-3nm	40-60mW
1083	Typical 3MHZ	2-3nm	40-60mW
1120	Typical 3MHZ	2-3nm	40-60mW
......	Typical 2MHZ	2-3nm	20-30mW
1700	Typical 2MHZ	2-3nm	20-30mW
1735	Typical 2MHZ	2-3nm	20-30mW
1742	Typical 2MHZ	2-3nm	20-30mW
1814	Typical 3MHZ	2-3nm	2-3mW
1850	Typical 3MHZ	2-3nm	2-3mW
1854.1	Typical 3MHZ	2-3nm	2-3mW
1908	Typical 3MHZ	2-3nm	2-3mW
1910	Typical 3MHZ	2-3nm	2-3mW
1920	Typical 3MHZ	2-3nm	2-3mW
1940	Typical 3MHZ	2-3nm	2-3mW
1945	Typical 3MHZ	2-3nm	2-3mW
1947	Typical 3MHZ	2-3nm	2-3mW
1950	Typical 3MHZ	2-3nm	2-3mW
1960	Typical 3MHZ	2-3nm	2-3mW
1970	Typical 3MHZ	2-3nm	2-3mW
1980	Typical 3MHZ	2-3nm	2-3mW
1984	Typical 3MHZ	2-3nm	2-3mW
2000	Typical 3MHZ	2-3nm	2-3mW
2004	Typical 3MHZ	2-3nm	6-8mW
2040	Typical 3MHZ	2-3nm	2-3mW
2327	Typical 3MHZ	2-3nm	2-3mW
2330	Typical 3MHZ	2-3nm	2-3mW

Note:

1. We can provide DFB modules with any wavelength from 1018-1700nm
