ZBLAN Mid-Infrared Large Core Power Transmission Fiber, Core Diameter 400μm

ZBLAN fiber is a composite glass fiber composed of heavy metal fluorides such as ZrF4, BaF2, LaF3, AlF3, and NaF. Compared to the widely used silica fiber, ZBLAN fiber offers a wide transmission wavelength range (0.35μm to 4μm) and high emission efficiency when doped with rare earth ions. Through the development of a unique fiber manufacturing technology, Idealphotonics Optics has introduced a low-cost method to produce high-quality (especially low-loss) fluoride fibers.

Product features：The effective transmission range is from 300nm to 5500nm、 Outstanding spectral uniformity、 High laser damage threshold、 Ideal choice for ho and erbium laser transmission、 High core-to-cladding ratio for high efficiency beams

Application area：Laser remote sensing spectroscopy、 Chemical sensing、 Medical diagnostics、 Laser beam transmission、 FLIR (Forward Looking Infrared)、 Thermometers

Unit Price

Please contact customer service for a discounted quote.

Part Number

ZMF-400/500-N-0.27

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Item	ZSF-9/125-N-0.20	Custom ﬁber
Fiber Type	Step Index
Core Diameter (µm)	9±1	2 ~ 12
NA	0.20±0.01	0.12, 0.16, 0.21, 0.26
Cut-oﬀ Wavelength (µm)	<2.6	-
Loss@1.5µm (dB/m)	<0.1
Cladding Diameter (µm)	123±3
Coating Diameter (µm)	460±30
Core/Cladding Glass	ZBLAN Fluoride Glass
Coating Material	UV curable acrylate
Proof Test	1.25cm Radius

Item	ZMF-400/ 500-N-0.27	ZMF-160/ 200-N-0.27	ZMF-100/ 125-N-0.27	Custom ﬁber
Fiber type	Step Index
Core dia. (µm)	400±25	160±10	95±5	60 ~ 800
Cladding dia. (µm)	500±25	200±10	123±5	80 ~ 1,000
Coating dia. (µm)	600±30	480±30	460±30	100~ 600
NA	0.27±0.01		0.22, 0.27, 0.30
Loss@2.5µm (dB/m)	<0.1
Core/ cladding glass	ZBLAN ﬂuoride glass
Coating material	UV curable acrylate
Proof test	6cm radius	2cm radius	1.25cm radius	TBD

Item	RE doped Single Cladding Fiber	RE doped Double Cladding Fiber
Fiber type	Step index
Dopant	Pr, Nd, Ho, Er, Dy, Tm, Yb, others
Dopant concentration	500~60,000
Core diameter (µm)	2~
Core NA	0.06, 0.12, 0.16, 0.21, 0.26
1st Cladding diameter (µm)	123±3	123, 200, 500
1st Cladding shape	Circular	Circular Octagonal Rectangular, etc.N/A
1st Cladding NA	N/A	> 0.5
2nd cladding thickness (µm)	N/A	>30
2nd cladding material	N/A	Fluoro-acrylate
Outer diameter (µm)	460±30	460, 480, 600
Core/Cladding glass	ZBLAN ﬂuoride glass
Coating material	UV curable acrylate
Proof test	1.25cm radius	TBD

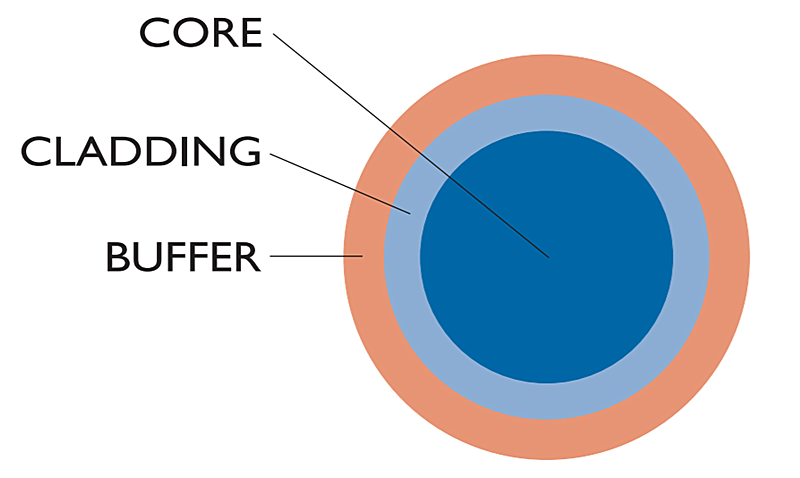

Fiber structure

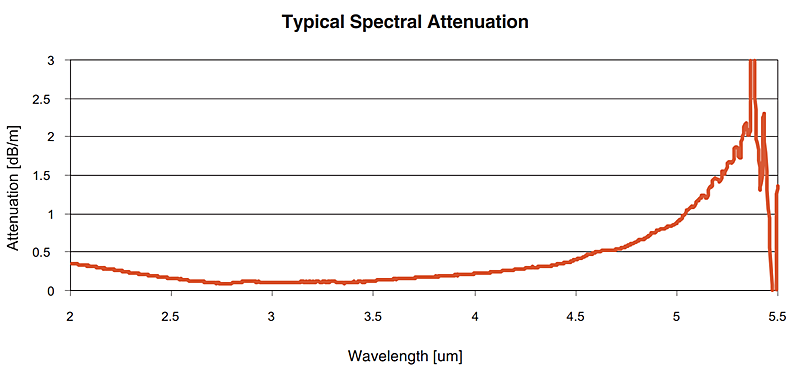

Typical attenuation values at various wavelengths

Ordering info

Name: Single-mode Mid-Infrared Fluoride Fiber

Model: ZSF-9/125-N-0.20

Core Diameter: 9 ± 1 µm

Numerical Aperture (NA): 0.20 ± 0.01

Cutoff Wavelength: <2.6 µm

Loss: <0.1 dB/m at 1.5 µm

Cladding Diameter: 123 ± 3 µm

Outer Coating Diameter: 460 ± 30 µm

Core/Cladding Material: ZBLAN Fluoride Glass

Name: 400 µm Large-Core Mid-Infrared Transmission Fiber
Model: ZMF-400/500-N-0.27
Core Diameter: 400 ± 25 µm
Cladding Diameter: 500 ± 25 µm
Outer Coating Diameter: 600 ± 30 µm
Numerical Aperture (NA): 0.27 ± 0.01
Loss: <0.1 dB/m at 2.5 µm
Core/Cladding Material: ZBLAN Fluoride Glass

Name: 200 µm Large-Core Transmission Fiber
Model: ZMF-160/200-N-0.27
Core Diameter: 160 ± 25 µm
Cladding Diameter: 200 ± 25 µm
Outer Coating Diameter: 480 ± 30 µm
Numerical Aperture (NA): 0.27 ± 0.01
Loss: <0.1 dB/m at 2.5 µm
Core/Cladding Material: ZBLAN Fluoride Glass

Name: 100 µm Large-Core Transmission Fiber
Model: ZMF-100/125-N-0.27
Core Diameter: 95 µm
Cladding Diameter: 125 µm
Outer Coating Diameter: 460 ± 30 µm
Numerical Aperture (NA): 0.27 ± 0.01
Loss: <0.1 dB/m at 2.5 µm
Core/Cladding Material: ZBLAN Fluoride Glass
