Hollow core anti-resonant fiber 200-3500nm (core diameter 33um, cladding 250um, pure quartz material)

Silica fiber has been widely used in various scenarios for laser transmission, but in many fields, due to the nonlinear effects caused by the material, the light guide window, the damage mechanism of the laser to the fiber material, etc., the laser transmission based on quartz has basically reached the limit of the fiber. Anti-resonant fiber (ARF) is a hollow-core fiber in which light can be confined to the hollow with a refractive index less than that of the fiber material and transmitted along the fiber axis. Hollow fiber has extremely low nonlinearity, high damage threshold, and small overlap between the internal transmission beam and the surrounding glass, which provides a unique possible solution for fiber-based, very high-power lasers. This will achieve breakthrough applications in laser manufacturing, laser ignition, defense, ultrafast lasers, nonlinear endoscopes/microscopes, and gas-based mid-infrared lasers.

Product features：The light-guiding window extends from ultraviolet to mid-infrared, far exceeding the light-guiding range of traditional solid-core optical fibers、 The fiber core is a hollow structure that can be vacuumed or filled with various gases or liquids、 It has the potential to exceed the lowest loss of existing quartz optical fibers、 It has fast transmission speed and true light-speed communication、 It has extremely low nonlinearity and Rayleigh scattering, and extremely high laser damage threshold.

Application area：High-power laser energy transmission: distortion-free transmission of ultrafast laser pulses、 Development of new light sources: supercontinuum spectrum, dispersion wave generation from extreme ultraviolet to deep ultraviolet、 Optical research on soliton blue shift, gas plasma, high-order harmonics and other phenomena、 Ultrafast laser pulse compression、 Low-loss high-speed optical communication、 Fiber sensing, hollow-core fiber probes

Unit Price

Please contact customer service for a discounted quote.

Part Number

MOF_HC_ ARF8C_50/250/270PI

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

PN#	MOF_HC_ ARF8C_50/250/270PI
Numerical aperture (NA):	0.03-0.1
Light guide interval:	200nm~3500nm (theoretical value)

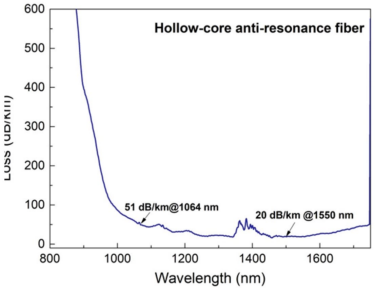

Attenuation coefficient:	@1550 nm <20 dB/km	@1550 nm <20 dB/km
Core diameter:	33±2μm
Cladding diameter:	250±3μm
Coating diameter:	270±3μm
Material:	Pure quartz
Coating material:	Polyimide/acrylic resin
Long-term use temperature:	-65~300 ℃ (polyimide)
Short-term tolerance temperature:	400 ℃ (polyimide)
Fiber structure can be customized: mid-infrared applications, ultraviolet applications, etc.
