1650nm Single-mode acousto-optic modulator 100MHz

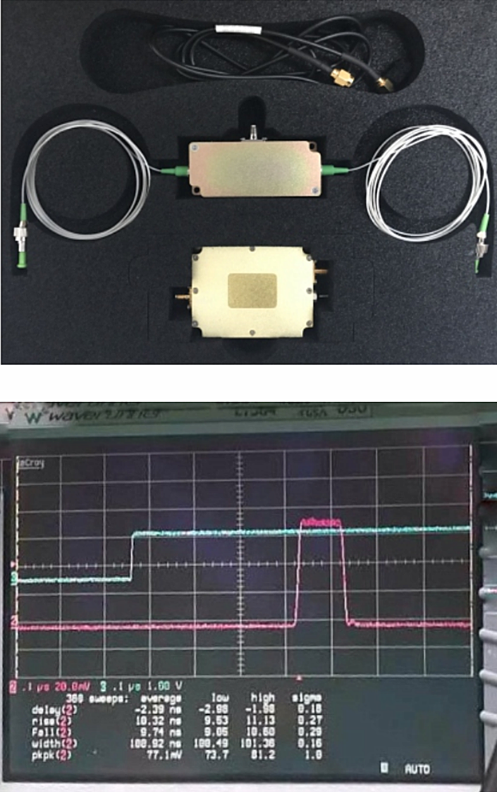

Idealphotonics' acousto-optic modulators are widely used in fiber optic sensing applications due to their high modulation extinction ratio, high power tolerance, and other advantages. This product is specifically developed to meet the application needs of fiber optic sensing, featuring a compact size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), and excellent pulse repetition (low jitter in repetition period). Additionally, the modulator and driver can be integrated into a single package, facilitating system integration. It can be widely applied in fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, OFDR, etc.

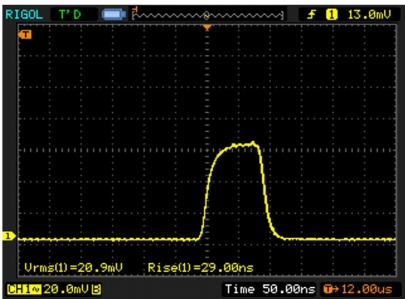

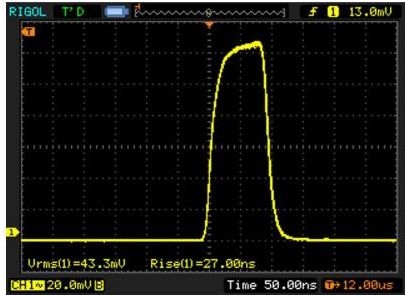

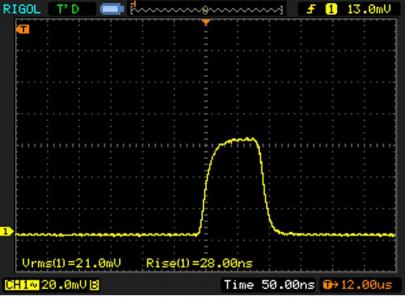

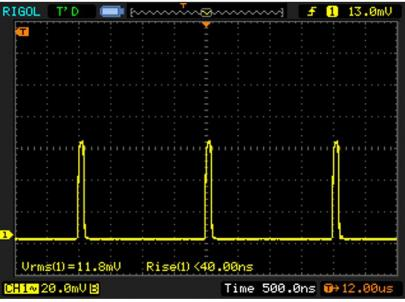

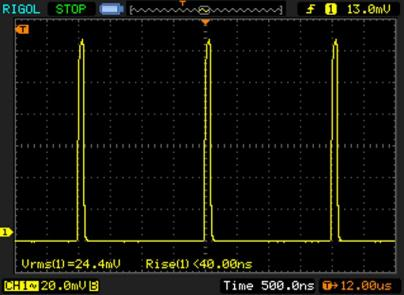

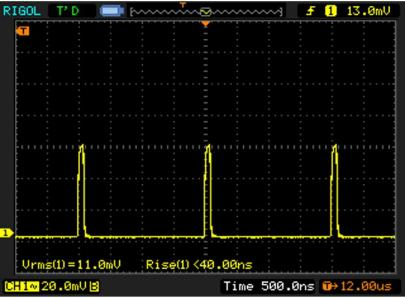

Product features：Compact size、 Low power consumption (<500mW)、 Fast rise time (12ns)、 Good modulation pulse shape (small overshoot)、 Excellent pulse repetition (low jitter in repetition period)

Application area：Fiber optic sensing、 LiDAR、 BOTDA

Unit Price

Please contact customer service for a discounted quote.

Part Number

AOM100-1650-1-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Model Parameters

Parameter		PN#
	Unit	PN#
		AOM100-1650-1 (X)	AOM150-1650-1	AOM200-1650-1
		AOM100-1650-1 (X)	(X)	(X)
Material	-	Tellurium Oxide
Wavelength	nm	1650
Max Laser Power	W	≤0.5
Max Pulsed Laser Peak Power	KW	≤ 1（ 5kW Custom）
Insertion Loss	dB	≤3	≤4	≤5
Extinction Ratio	dB	≥50
Polarization Extinction Ratio (for PM devices)	dB	≥20
Voltage Standing Wave Ratio	1	≤ 1.2:1
Optical Pulse Rise Time	ns	40	20	12
Operating Frequency	MHz	100	150	200
Fiber Type	-	SM or PM
Fiber Connector	-	FC/APC

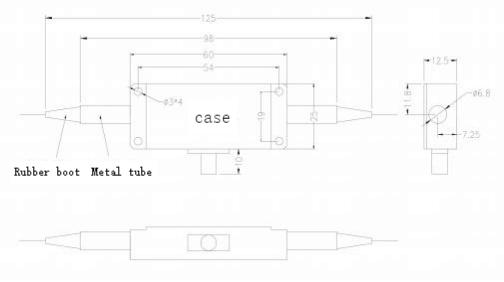

Structure	-	Picture A
Driver		D100-02-M-1D	D150-02-M-1D	D200-02-M-1D

Driver

Parameter	Unit	PN#
Parameter	Unit	D100-02-M-1D	D150-02-M-1D	D200-02-M-1D
Operating Frequency	MHz	100	150	200
Drive Power	W	≤2.5	≤3	≤3
Electrical Pulse Rise Time	ns	≤20	≤ 15	≤7.5
Power Switch Ratio	dB	≥55
Supply Voltage (DC)	V	24
Harmonic Suppression	dBc	≥25
Modulation Mode	-	TTL
Output Impedance	Ω	50

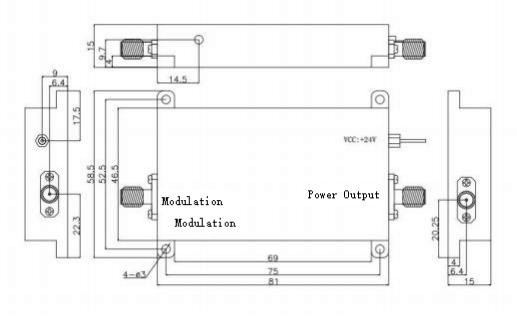

Structure	-	Picture B
