1310nm benchtop with software control DFB laser 10mW

Idealphotonics' benchtop software-controlled DFB light source is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve high and stable output of the laser, while ensuring that the light source is quick and intuitive to operate. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source uses a one-key recovery function (Run/Stop button), which can effectively help customers return to the previous working state. This is a highly integrated modular system light source, which uses PC-side software intelligent control. Customers can set the required working temperature and current according to their needs. It is very suitable for experimental scientific research and production testing. In addition, we need to modulate the laser for some application fields. We have connected two modulation ports, one for high frequency and one for low frequency, to better meet customers' needs for multiple uses of one machine.

Product features：Support one-key restore function (no need to restart and preheat)、 Software remote control, intelligent control、 Stable output power, continuously adjustable、 Compact structure、 High-precision ACC and ATC control circuit、 Built-in high and low modulation bandwidth BNC interface

Application area：Laser sensor、 Mode-locked fiber laser、 Ytterbium-doped fiber amplifier、 Test and measurement

Unit Price

Please contact customer service for a discounted quote.

Part Number

LDC-250-M-1310

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Min.	Max.	Unit	Note
Supply voltage	100V	240	VAC
Power	5	15	W
Modulation low frequency	20	1000	KHz
Modulation high frequency	100	1000	MHz
Output power	10	50	mW
Linewidth	1	3	MHz
Center wavelength	1310±0.5		nm
Output fiber type		SMF-28E/PM1310	optional
Laser drive current	0	225	mA
Laser drive voltage	2.5		V@80mA
NTC	9.7	10.3	Kohm	@25℃
TEC current	-1	1	A
Temperature control range	0	50	℃
Analog input (peak-to-peak)	0	5	V	AC coupling
Analog output	0	25	V
Dimensions	22.5 x 15.0 x 6.5		Cm³
Fiber interface	FC/APC

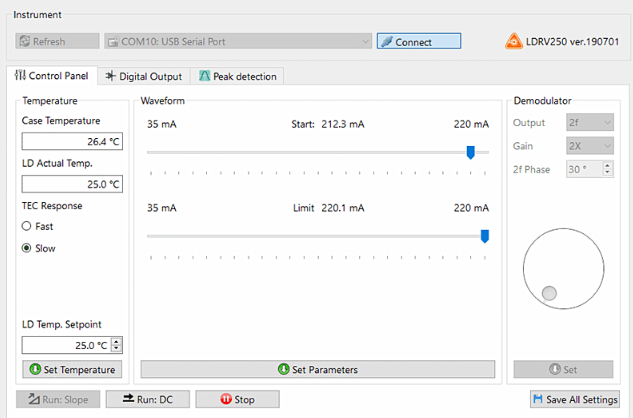

Control software interface

Note: You can customize the temperature to set the protection current.

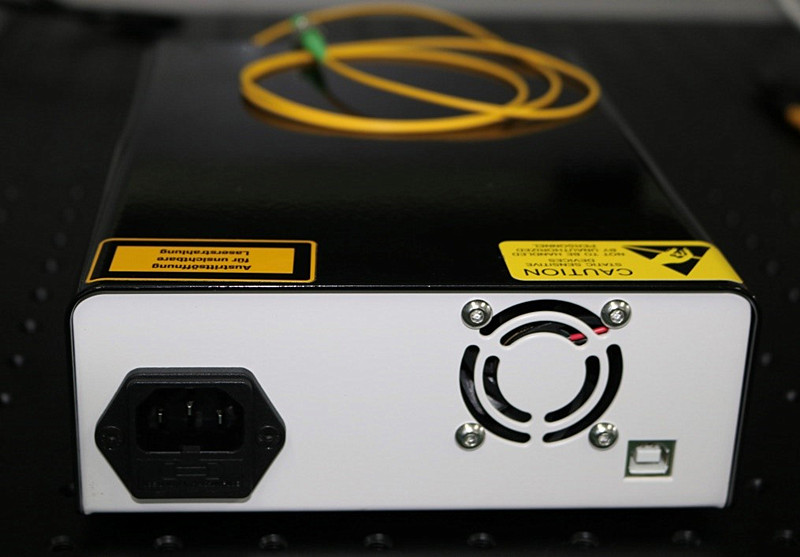

USB communication protocol, plug in three-phase mains power

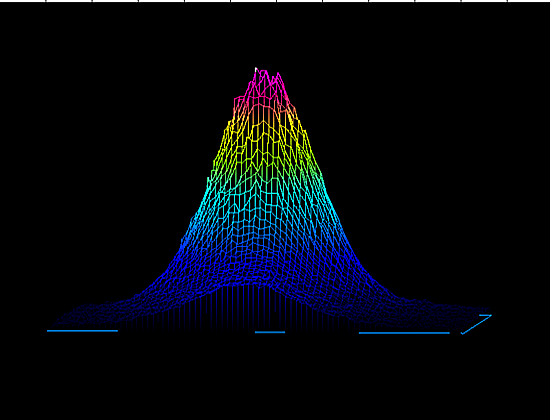

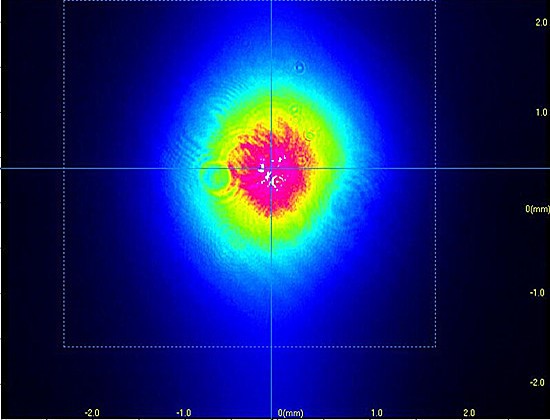

Spot analysis

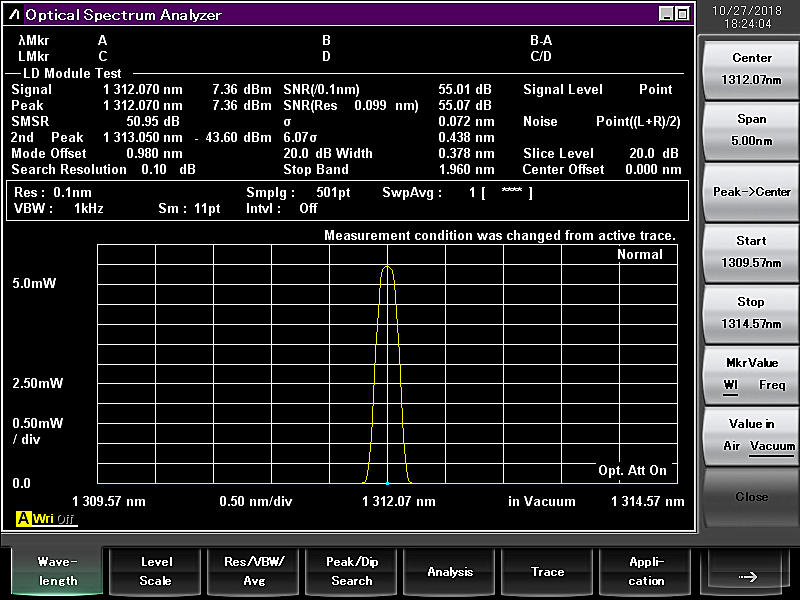

Spectrum

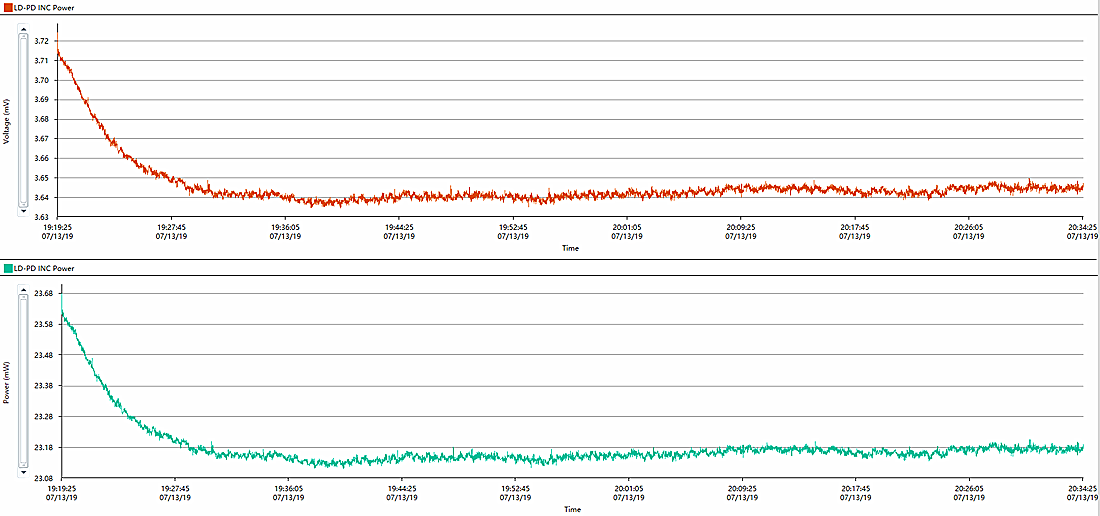

Power stability test
