5nm fused taper ultra-narrowband wavelength division multiplexer 1550/1555nm bandwidth ±0.5nm

Fused taper ultra-narrowband wavelength division multiplexer refers to a one-time taper wavelength division multiplexer with a wavelength interval of 5nm. Fused taper wavelength division multiplexing refers to a technology that transmits multiple wavelength optical signals in one optical fiber at the same time. With the development of optical communication systems, it is widely used in optical fiber sensors, optical fiber lasers, optical fiber amplifiers (EDFA), high-speed multi-wavelength transmission, etc. In the wavelength range, an optical communication system with multiple wavelengths on a pair of optical fibers or a single optical fiber is required, where the interval between each wavelength is 5nm. In this case, the wavelength division multiplexing with a smaller channel interval in the same window is called ultra-narrowband wavelength division multiplexing SUNBWDM, which has low loss, good stable performance, simple maintenance and convenient power supply.

Product features：Small size、 Low insertion loss、 One-time melting and taper, easy maintenance、 Good stability

Application area：Fiber amplifier 、Fiber laser Network signal CATV, HDTV High-speed 、 multi-wavelength transmission system

Unit Price

Please contact customer service for a discounted quote.

Part Number

SUNBWDM- W155055 05-80-XX

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Structure	/	1×2/2×2
Name	/	Ultra-narrowband WDM
Operating wavelength	nm	1475/1480 or (customer-defined wavelength)
Bandwidth range	nm	±0.50
Insertion loss	dB	≤0.70dB (typical value ≤0.50dB)
Isolation	dB	≤11.0dB (typical value ≥13.0dB)
Polarization-dependent loss	dB	≤0.25
Return loss	dB	≥50.00.
Directivity	dB	≥55.00
Carrying power	mw	500
Operating temperature	℃	-5-75
Storage temperature	℃	-40-85
Fiber length	m	1.00±0.10 or customer-specified
Fiber type	/	Corning Fiber SMF-28
Packaging fiber structure	um	250/900
Packaging	mm	￠5×70/￠5×80

Note: *. The working wavelength and wavelength interval can be customized.

**. All indicators are without connectors and are only valid at the above wavelengths, polarization states and temperatures.

***. The indicators are subject to change without prior notice.

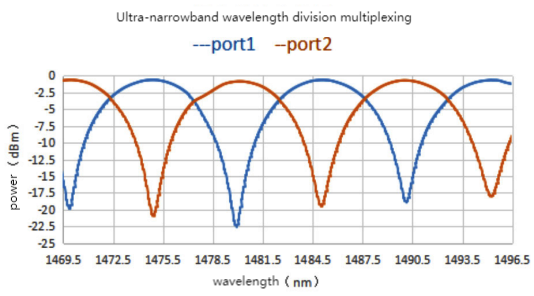

UNBWDM spectrum scanning diagram

Ordering Information

SUNBWDM- W□□□□ -☆- △-XX

W□□□□: Wavelength

155055: 1550/1555nm

145560: 1455/1460nm

☆: Pigtail Length

05: 0.5m

1: 1m

10: 10m

△: Loose Tube

B: Bare Fiber

9: 900um Loose Tube

20: 2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA= FC/APC

SP= FC/PC

LA= LC/APC

LP= LC/PC
