High Nonlinear Microstructured Optical Fiber

Using the most advanced fiber fabrication technologies, we can manufacture ultra-nonlinear photonic crystal fibers. Based on a high duty cycle structure design, the fiber exhibits ultra-high nonlinearity and allows for custom tailoring of its waveguide dispersion curve. This type of fiber is an ideal choice for supercontinuum generation and optical frequency comb generation.

Product features：High-temperature resistance 、Durability, high bending strength, and sealing performance 、Enables the welding of embedded optical fibers, fiber bundles, and pigtails into high-vacuum environments

Application area：High-temperature environments 、Harsh chemical environments 、Nuclear radiation environments 、High-power laser transmission 、Medical applications 、Optical fiber bundle welding

Unit Price

Please contact customer service for a discounted quote.

Part Number

HNLF-PCF

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Specs

Optical Properties:

· Fiber Material: High-purity quartz

· Zero Dispersion Point: 790 nm

· Dispersion: @1550 nm 130 ps nm⁻¹ km⁻¹

· Mode Field Area: @1550 nm 1.7 ± 0.3 μm

· Core Diameter: 2.1 ± 0.3 μm

· Numerical Aperture (NA): @1550 nm 0.48 ± 0.05

· Nonlinear Coefficient: 20 ± 3 km⁻¹ W⁻¹

· Cutoff Wavelength: <960 nm

Geometric Parameters:

· Delivery Length: 1 - 50 m

· Cladding Diameter: 150 ± 3 µm

· Coating Diameter: 250 ± 5 µm (Polyacrylic resin)

· Core-Cladding Concentricity: ≤5 µm

· Cladding Non-circularity: ≤0.5

Coating Properties:

· Coating Materials: Polyimide or Polyacrylic resin

· Long-term Operating Temperature: Polyimide -55 - 300 ℃; Polyacrylic resin 0 - 90 ℃

· Short-term Tolerable Temperature: Polyimide 400 ℃; Polyacrylic resin 120 ℃

Mechanical Properties:

· Proof Strength: 100 kpsi

Structure


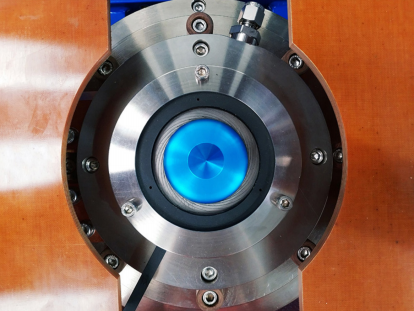

Manufacturing Platform


Ordering info

PN#HNLF-PCF High Nonlinear Photonic Crystal Fiber (HNLF-PCF)
