D-Type Fiber Customization

The NIR-SPF-S-SM-2 SPF series side-polished fiber/D-type fiber (Side Polished Fiber) leverages our comprehensive fiber processing technology. Xiaoxiao Photonics currently offers customized processing services for D-shaped side-polished fibers. With 5 years of unique side-polishing expertise, we can precisely provide large-scale customized services to our clients. Customers only need to specify the fiber type, polishing length, and polishing depth they require.

Product features：High optical surface quality 、Low insertion loss in air 、Supports customization for various compatible fibers 、Different side-polishing depths 、Exposed core length

Application area：Side-polished fiber creates a substrate with definable length and depth through a parallel surface 、Facilitates access to the evanescent field with nearly zero loss 、Guides waveguide properties through the structure and refractive index of the overlay structure 、Achieves time-varying manipulation of propagation by dynamically modifying structure dimensions, refractive index, or absorption 、Fiber optic components and fiber sensing applications

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-SPF-W□□□□-☆-△-XX

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

Parameters	Unit	Value
Operating Wavelength	nm	430-2000nm
Insertion Loss in Air	dB	＜0. 1dB
Attenuation Value at 1.5 Refractive Index	dB	>45 (Typ. 60)
Side-Polishing Length	m	17
Fiber Type		SMF-28E
Connector Type		FC/APC OR FC/PC

Notes:

All test results exclude connectors.

Better parameters or other requirements can be customized upon request.

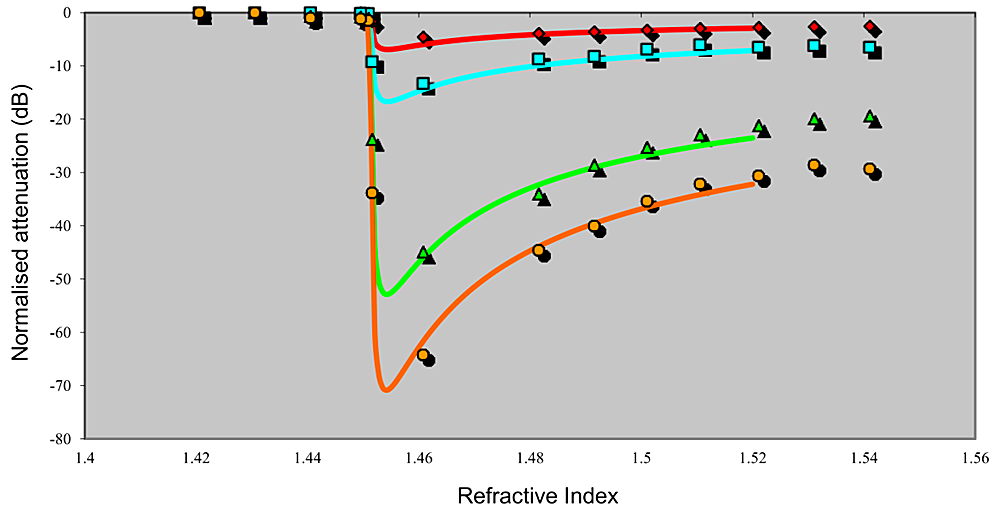

Attenuation Response with Different Polishing Depths and Overlay Refractive Index - Theoretical Curve and Data Points

Ordering info

NIR-SPF - W□□□□-☆- △-XX

W□□□□：Wavelength

0405:405nm

0488:488nm

0532:532nm 0633:633nm

*****

0650:650nm ☆ :

Pigtail Length 05:0.5m

1 ：1m 10: 10m

△：Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA=SMF-28E+ FC/ APC

SP=SMF-28E+ FC/ PC

PA=PMFiber+ FC/ APC

PP=PMFiber+ FC/ PC
