950-1650nm InGaAs Single-Photon Array Detector component

The MP6514S detector module consists of 4x4 arrayed InGaAs Single-Photon Avalanche Diodes (SPADs), which are interconnected with CMOS main and passive quenching circuit chips. It also includes a voltage inverter module, a cooling module, and a signal control module. In Geiger mode, each pixel of the detector operates independently, detecting weak light signals in the near-infrared range of 0.95~1.65 μm, and outputs TTL signals in real time.

Product features：Spectral response band: 0.95 ~ 1.65 μm、 Metal packaging, light and compact design、 Independent pixel operation、 Pixels can detect weak photon signals、 Dead time and Geiger avalanche signal detection threshold are adjustable

Application area：Distance measurement through fog, haze, smoke, etc、 Near-infrared laser alarm、 Long-range laser distance measurement、 Long-range space laser communication

Unit Price

Please contact customer service for a discounted quote.

Part Number

MP6514S

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Detector array specifications

	Performance Description
Device Type	InGaAsAPD
Array Size	4x4
Pixel Size	100μm x 100μm
Photosensitive Area Size ^[1]	85μm x 85μm
Optical Window	Quartz Optical Window
Distance from Photosensitive Target Surface to Outer Surface of Optical Window	4mm (Optical Window Thickness: 1mm)

Note [1]: The focal length of the integrated micro-lens is 150μm.

Main Performance Indicators (T_c=22 +3°C):

Characteristic Parameters	Parameter Indicators
Working Wavelength[1]	0.95 ~ 1.65μm
Detection Efficiency	≥10% ( 1.57 +0.05μm)
Dark Count Rate	≤10KHz
Time Jitter	≤500ps
Dead Time	100 ~ 1000ns adjustable
Effective Pixel Rate	100%

Absolute Maximum Ratings

Parameters	Rated Value	Unit
Operating Temperature Range (T_c)	-40 ~ +55	°C
Storage Temperature Range (T_STG)	-40 ~ +70	°C
Maximum Power Dissipation (P)	15	W
Input Bias Voltage Range (V_R)	4.9 ~ 5.5	V
Electrostatic Discharge Sensitivity (ESD)	1000 ~ 2000	V

Quality and Reliability Assurance

The product complies with the relevant requirements of GJB8121-2013 "General Specifications for Semiconductor Photonic Components."

Electrical Interface

• Power Input: +5V

• Data Output Type: TTL

• Control Command Interface: J63A-31

• Power Input Interface Type: J30J

• Data Output Interface Type: J63A-31

• External Trigger Interface: SSMA

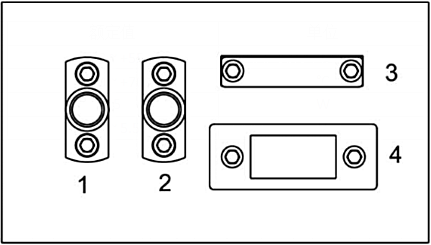

Interface Number	Function
1	SSMA-1: Internal synchronization signal output
2	SSMA-2: External synchronization signal input
3	J63A-31: Output signal port and detector working setting input signal port
4	J30J: +5V single power supply input
